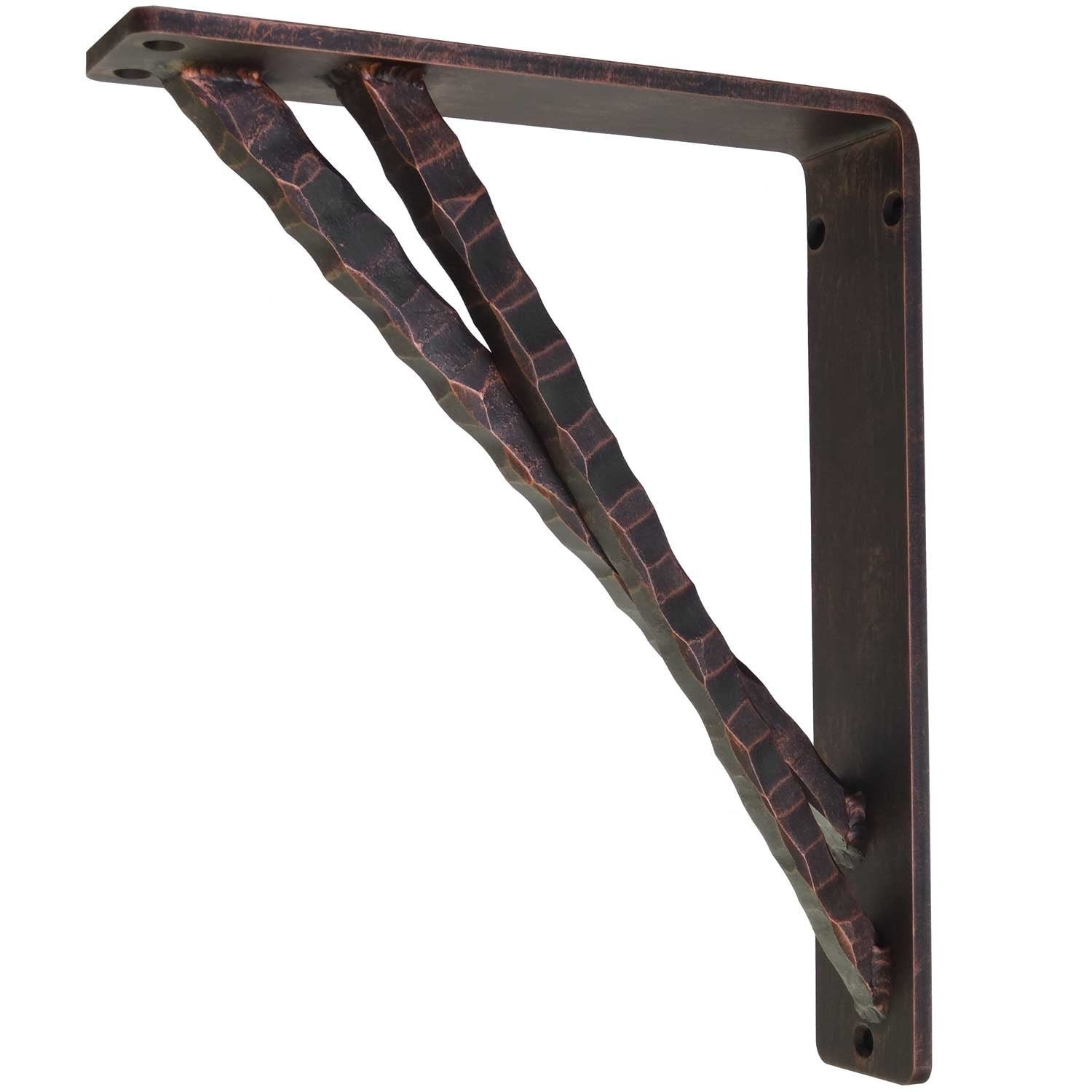

Torches Iron Corbel 2-Inch Wide

The Torches Corbel is a decorative and functional bracket built to support your granite and other natural stone countertop overhangs.

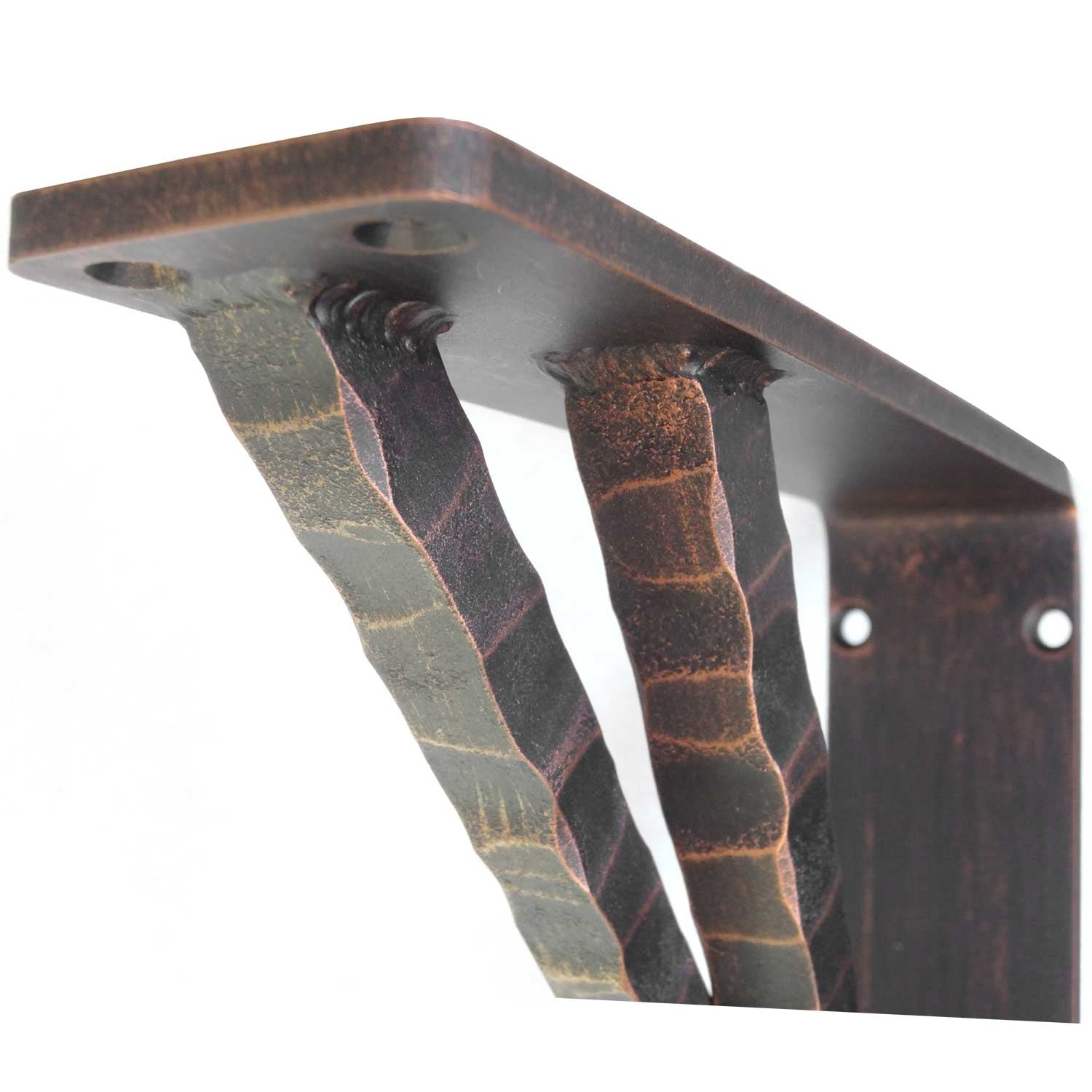

Your center gussets, or supports, between the L-Bracket are made from solid hand-forged iron rods that taper from top to bottom giving the bracket even more interesting dimensions.

This iron corbel measures 2-inches wide and is available in the following bracket sizes 5 x 7; 6 x 8; 7 x 9; 8 x 10; 9 x 11 & 10 x 12. The L-bracket is made of 1/4-inch thick material and bent at 90-degrees.

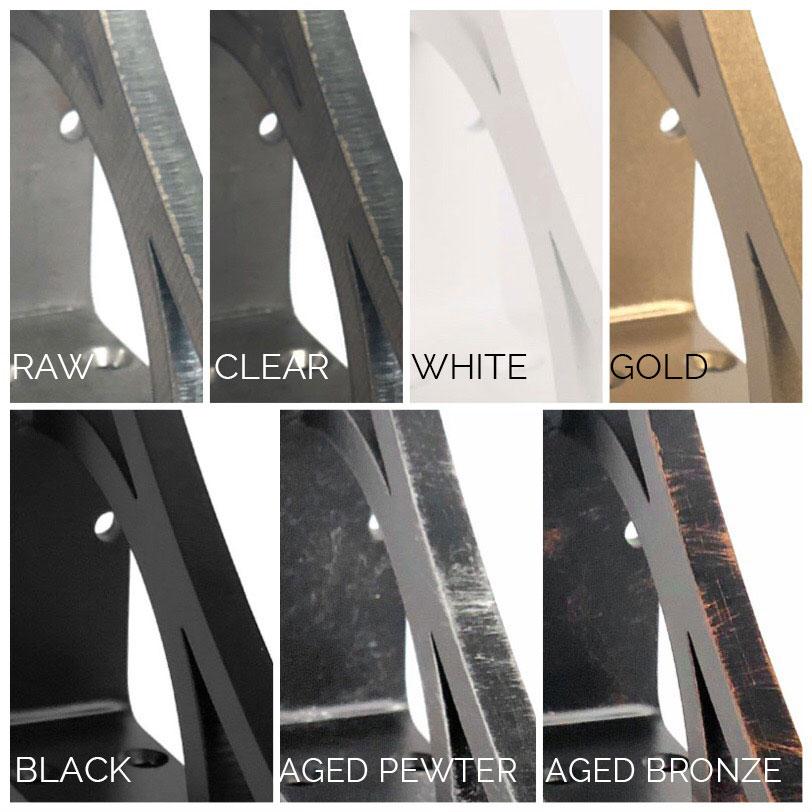

Common uses for our Torches Corbels include granite & stone counter top supports, shelving brackets, fireplace mantel support and much more. You can choose from 4 finish options including Black; Aged Bronze; Aged Pewter; or Clear Coat (over raw metal). Want to paint this corbel yourself? Choose "Raw Material" in the finish options drop-down and your corbels will arrive ready for you to paint (you will want to clean them of skin oils, dust & dirt before applying your own finish).

Specifications

• Bracket Sizes (Depth x Height x Width)
• 5 x 7
• 6 x 8
• 7 x 9
• 8 x 10
• 9 x 11
• 10 x 12
• Material: Iron
• Holes: 3 - 1/4" holes are included in the back plate for mounting the corbel to your sub-straight. 2 - 1/4" holes are included in the top plate for optional mounting of shelving, mantels or any non-stone surface.

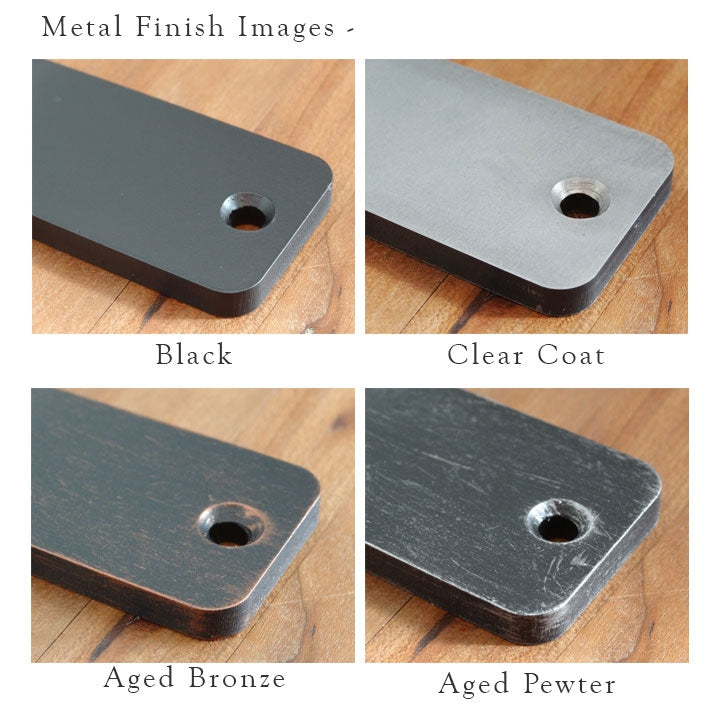

• Iron Finish Options: 4 Finishes Available
• Mounting Hardware: Not Included - Mounting holes are predrilled into the back and top of bracket
• Installation Corbels can be installed by a contractor/builder or a handy Do-It-Yourselfer. For detailed installation instructions click here download a PDF version of our Corbel Installation Guide (works great for printing)

Additional Information

• Handcrafted in: America (USA)
• Style: Rustic
• Indoor / Outdoor Use: Indoor
• Use: Granite/Natural stone counter top overhang supports, shelf brackets, bar brackets, mantel support.
• Care: Wipe clean with a soft damp cloth.
• Included: Bracket Only
• Structural Warranty Life Time (touch up paint available for scratches if that happens)

Determine What Size & Quantity to Order?

This information is provided by The Marble Institute of Americas published requirements for granite countertops.

What size corbel do I order?

• Your Countertop overhang should not extend past the corbel by more than 4 to 6 inches.
• Example: If your countertop overhang is 10-inches you will want a bracket that measures at least 5 to 6 inches deep.

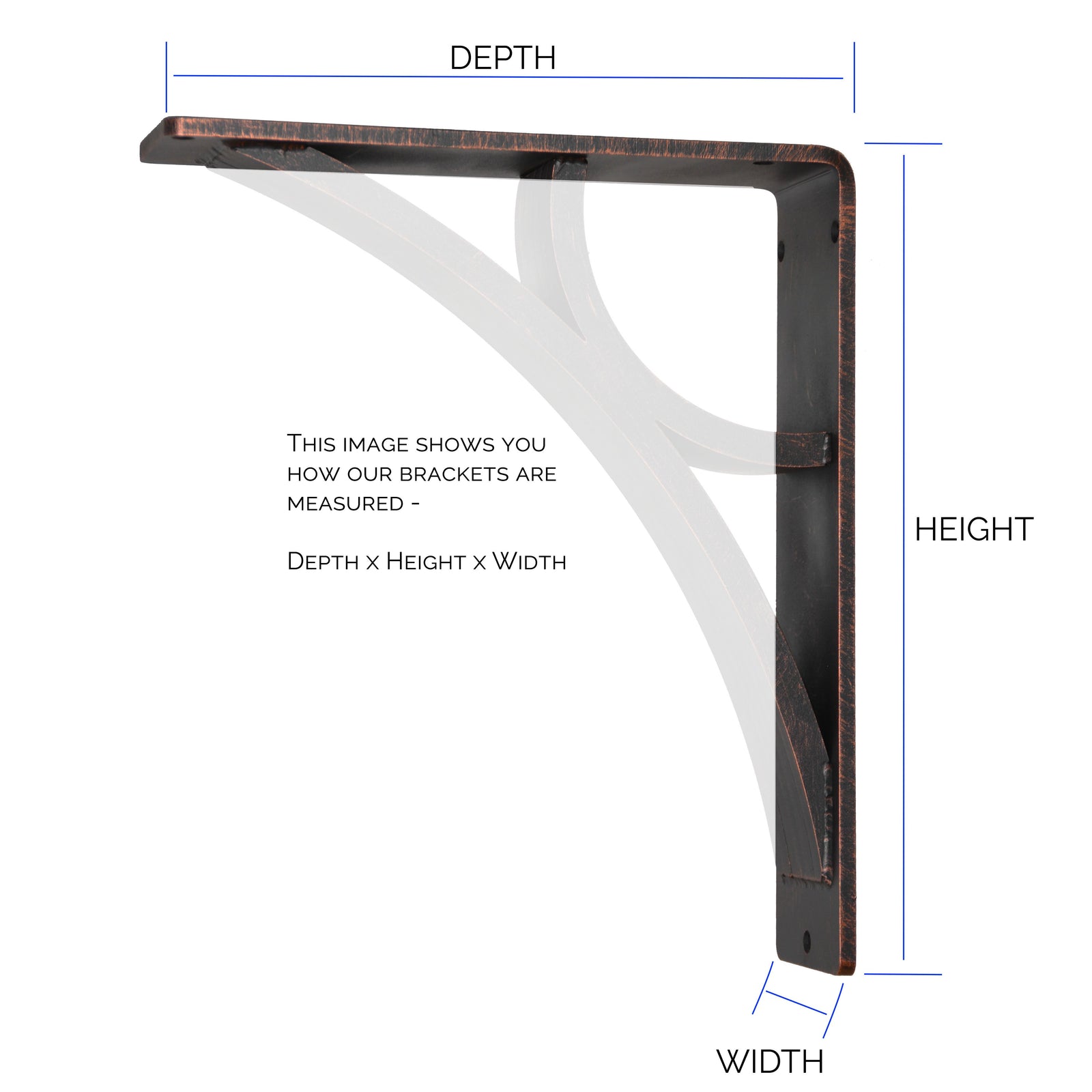

• All our corbel measurements are listed as depth x height | Example: a 6" x 8" corbel is 6 inches deep and 8 inches high.
• Notes From a Designer: Corbels are meant to be seen. So they generally look best when they are 2/3 as deep as the countertop overhang itself. As an example, when we design countertop overhangs we will keep the end of the corbel 2-4" from the end of the countertop overhang. This does exceed the Marble Institutes requirements but it looks much better from a design perspective.

How many corbels do I order?

• Corbels are generally spaced 24 to 36 inches apart under countertop overhangs.
• To figure out how many corbels you need lets start with 2 corbels at each end of the countertop set 4" to 6" inches in, from the edge.
• Now measure the span left between the 2 end corbels and use the following formula: (span left) divided by (desired spacing).
• Example; an 84" wide countertop with 2 brackets set 4 inches from the end would leave you with 76 inches left to support; (84" - 8" = 76"). Now take 76" divided/by 24" = 3.1, so you would need 3 more corbels for a total of 5 brackets.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 24 inch span between corbels, you would order 5 brackets total. 2 ends brackets and 3 to support the remaining 76" span.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 36 inch span between corbels, you would order 4 brackets total. 2 ends brackets and 2 to support the remaining 76" span.
