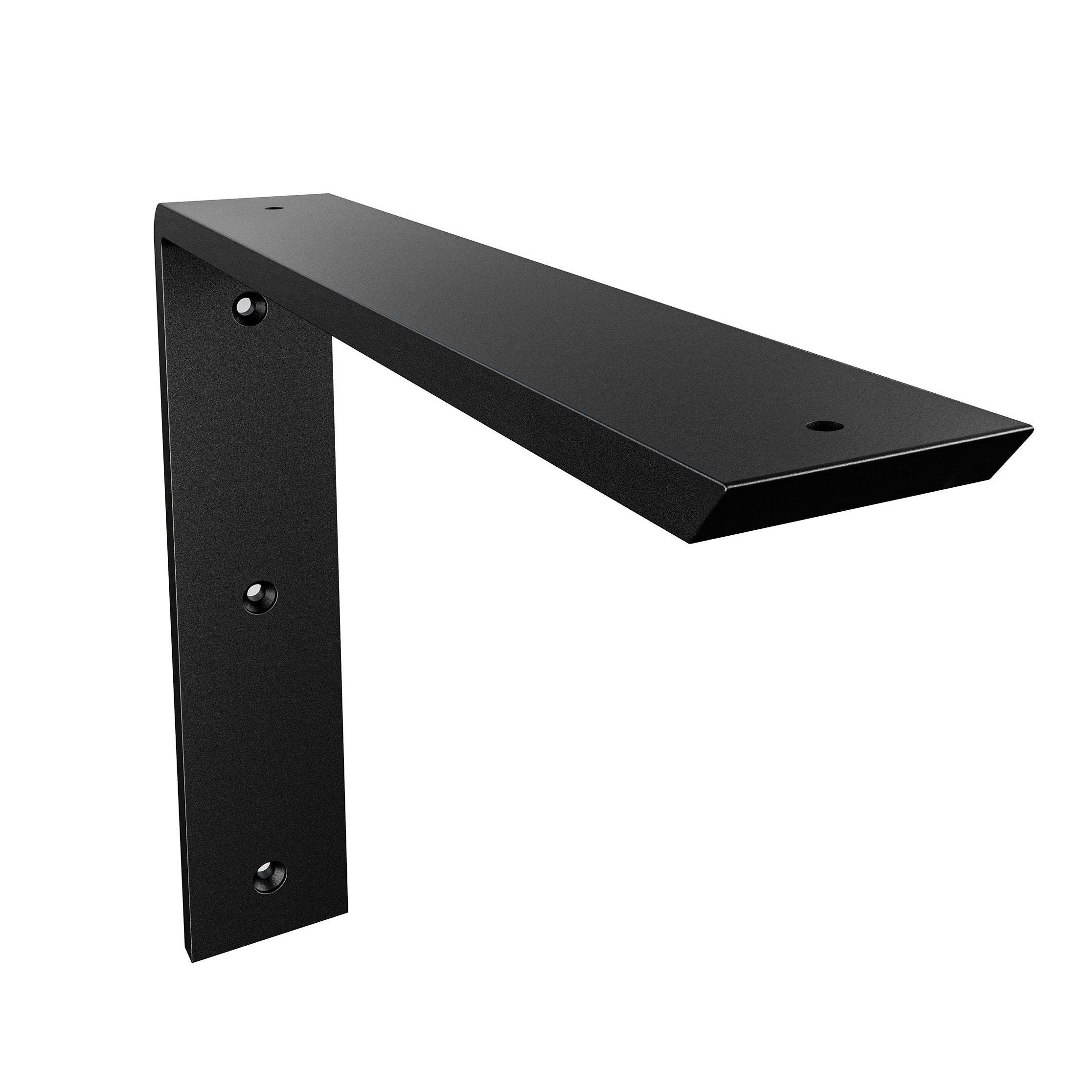

  • Standard Front Mount Countertop L Bracket

    Availability: In Stock - Ships today
    View Options

    Our Standard Front Mount Countertop L Bracket is the perfect support for any solid surface that protrudes off any wall or cabinet. These brackets are used to create everything from granite countertop supports, hardwood desks, glass shelves and so much more.

    Specifications -

    • Dimensions:
      • 2.5” Wide x ½” Thick
      • Sizes ranging in 8” Deep x 6” High to 20” Deep x 14” High
    • Mounting Holes, sized for 14 x 2 ½” Phillips Flat Head Screws (Included)
      • 8" Deep x 6" High Bracket will have two mounting holes
      • 10" Deep x 8" High - 20" Deep x 14" High will have three mounting holes
    • Material: Solid ½” Thick x 2.5 Wide American Steel
    • Finish: Premium powder coated finish (or choose raw steel)

    Additional Information -

    • Made in the USA
    • Carrying Capacity: 125 Lbs. per bracket
    • The horizontal end has a smooth beveled end for safety
    • The narrow profile makes this support nearly invisible for a clean look
    • Made to screw into 2x4 or 2x6 lumber

    Uses -

    • Support Countertops on Knee Walls
    • Support Universal Shelves
    • Support Kitchen Island Countertops
    • Support Stone or Wood Desks
    • Support Entry Wall Benches
    • Support Breakfast Bars
    • Support anything you want on a wall or cabinet including Granite, Quartz, Natural Stone, Concrete, Wood, Formica, and all other materials
    Determine What Size & Quantity to Order?

    What Size Bracket Should I Use?

    • NOTE: Ideally you want no more than 3" of unsupported countertop extending past the end of your bracket.
      • Example: If your countertop overhang is 19” Deep (19” – 3” = 16”) You’d want to go with an 16” x 12” Bracket
    • Our brackets are listed as follows, depth x height measurements
      • Example: 10” x 8” Bracket
        • 10” would be supporting your material (horizontally or depth)
        • 8” would be mounted to the wall (vertically or height)

    How Many Brackets Do I Order?

    • These countertop support brackets are typically spaced 16 - 24 inches apart, or 1 bracket on each framing stud.
    • To figure out how many brackets you need lets start with 2 brackets at each end of the countertop set 4" - 6" inches in from the edge.
    • Now measure the distance between the 2 end brackets and use the following formula:
      • (Distance Between) divided by/ (desired bracket spacing).
      • Example 76 / 16 = 4.75, so you need 4 more brackets to support the space left between the two end brackets.
    • Here is an example using a real countertop installation:
      • An 84" wide countertop with 2 brackets set 4 inches from the end would leave you with 76" left to support; (84" - 8" = 76"). Now take 76" divided by / 16" = 4.75, So you would need 4 more brackets for the space left giving you a total of 6 brackets for this project.
    • For a countertop overhang spanning 84" wide with 2 brackets set in 4" from either side and a 16" span between brackets, you would order 6 brackets total. 2 end brackets and 4 to support the remaining 76" span.
    Installation Guide (PDF)

    View Bracket Spec Sheet (PDF)

    View Bracket Installation Guide (PDF)
