Measure and mark the appropriate mounting locations on the cap of
your knee wall.
1A. Start at 6” inches in from the edges
1B. Space remaining brackets 18” – 24” apart.
Create mounting channel ONLY on the edge where the countertop will
2A. POWER TOOLS: Use a Top Bearing Flush Trim router with a 1/2" deep cutting length and trim the excess wood out of the mounting surface.
2B. MANUAL TOOLS: Use a hand saw and cut along each line to a depth of 1/2”. Then using a wood chisel (1” is a good choice) remove the excess wood between the lines you just created.
Be sure to remove all the material in the mounting channel so you have a clean, level channel for the bracket to be seated in.

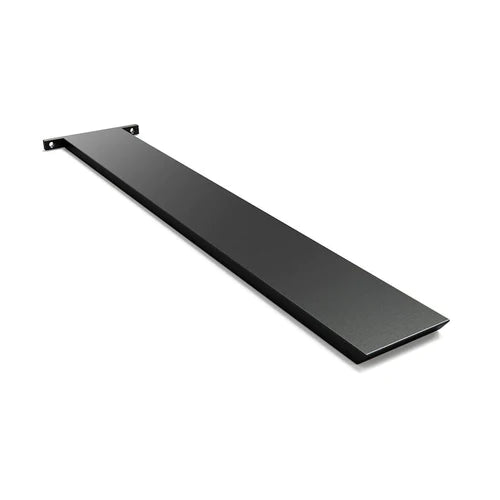

Sit the bracket inside the mounting channel with the other end of the bracket against the carcass panel on the other side of the joinery. Screw the bracket into the carcass with the two screws provided per bracket.
PRO TIP: Pre-drill holes using a 9/64” bit. This will help ensure the
wood doesn’t split.
Use a level to ensure the brackets are level. If necessary, use shims to make the bracket level.
Prior to setting the top in place, run a bead of high-quality silicone adhesive down the center of each bracket.
Iron Counter Support Brackets can carry significant loads but they must
be securely fastened to the mounting surface with continuous blocking,
or double-stud construction. When mounting into wood studs ”toeing”
into the stud will ensure that all screws are fully engaged. If toeing is
not an option align the bracket so that 1 top and 1 bottom screw are
fully engaged. When installing into metal studs you must block the
steel studs using wood studs by either piggy backing or sliding a wood
stud into the C channel metal stud.
Weight capacity is based on evenly distributed static loads.
Bracket spacing is based on the weight being applied and the
countertop material being used. Different countertop material can
carry different spans. Consult your countertop supplier if you have any
questions or keep your spacing at no more than 24" on center be safe
with any application.
