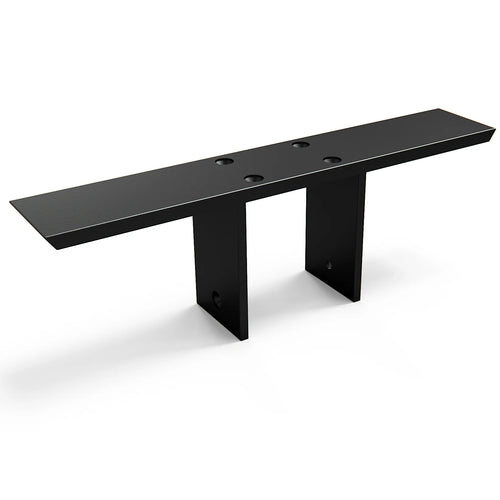

Installation Instructions - Hidden Center Mount Countertop Bracket - Knee Wall

  • Use the correct tools.
  • Wear protective eye wear & proper safety equipment.
  • When using tools or modifying anything follow manufactures instructions & user manuals.
  • Always use common sense & follow good construction practices.
  • Ask a professional when installing brackets for load bearing applications.
  • Always mount brackets to a structure that is able to support the brackets and the weight that my be applied to it.
  • Any use of this product in a way other than what it is intended for is not recommended.
Installing On Wood Studs

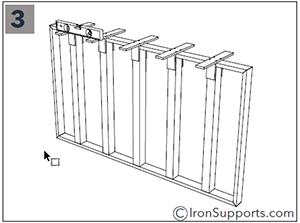

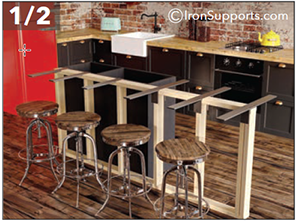

  1. Install one bracket directly under a supporting vertical stud in your knee or pony wall. Alternatively you can mount brackets to header style supports as well when vertical wall studs are not possible.
  2. Create mounting channel for bracket using one of the following:

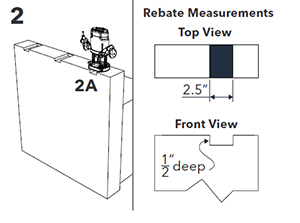

    2A. POWER TOOLS: Use a Top Bearing Flush Trim router with a 1/2" deep cutting length and trim the excess wood out of the mounting surface.

    2B. MANUAL TOOLS: Use a hand saw and cut along each line to a depth of 1/2”. Then using a wood chisel (1” is a good choice) remove the excess wood between the lines you just created.

    Be sure to remove all the material in the mounting channel so you have a clean, level channel for the bracket to be seated in.

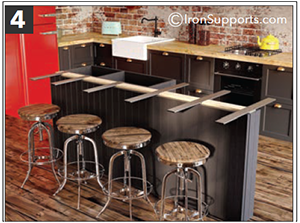

  3. Use a level to ensure the brackets are level. If necessary, use shims to make the bracket level.

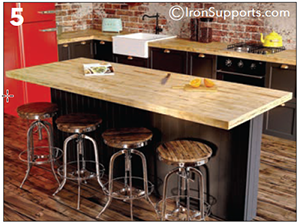

  4. Once the bracket is fastened finish the wall with your desired finishing materials, wood, drywall, tile etc.
  5. Prior to setting the top in place, run a bead of high-quality silicone adhesive down the center of each bracket.
    PRO TIP: For a wood countertop application you have the option to secure that to the bracket with screws and skip the glue. For this you would have to drill holes in the bracket and secure your wood shelf, desk, counter etc. with screws using the holes you drilled.

Disclaimer

Iron Counter Support Brackets can carry significant loads but they must be securely fastened to the mounting surface with continuous blocking, or double-stud construction. When mounting into wood studs ”toeing” into the stud will ensure that all screws are fully engaged. If toeing is not an option align the bracket so that 1 top and 1 bottom screw are fully engaged. When installing into metal studs you must block the steel studs using wood studs by either piggy backing or sliding a wood stud into the C channel metal stud.

Weight capacity is based on evenly distributed static loads.

Bracket spacing is based on the weight being applied and the countertop material being used. Different countertop material can carry different spans. Consult your countertop supplier if you have any questions or keep your spacing at no more than 24" on center be safe with any application.
