With its minimalist look, the 2-inch wide Parsons Corbel offers a straightforward way to support your kitchen countertop overhangs, shelving units and much more.

Each 2-inch wide corbel is made using a solid 1/4" L-Bracket and thick tube steel center support. Available in standard unfinished and premium finishes of Black, Aged Bronze, Aged Pewter or Clear Coat (over raw metal). For an industrial look the bracket looks best with our clear over raw metal finish. If you want to take the industrial look a step further you can opt to have the brackets shipped with no finish at all and let them naturally patina over time.

Bracket sizes range from 5 x 7 to 10 x 12, accommodating a myriad of countertop and shelf depths. This bracket design is available in a thinner less substantial looking 1.5-inch wide bracket as well.

Specifications

• Dimensions: L-bracket is 1/4-inch thick by 1.5" wide with a 1" thick center support.
• Bracket Sizes: 5 x 7 | 6 x 8 | 7 x 9 | 8 x 10 | 9 x 11 | 10 x 12
• Mounting Holes: 3 1/4" countersunk holes on the back mounting plate. 2 holes are included in the top part of this bracket, their use is optional if the application needs them. For example you may want to secure shelving or mantels to your bracket.

• Material: Iron
• Iron Finish Options: 4 Iron Finishes Available
• Pictured: Parsons Iron Corbel with Black Finish

Additional Info.

• Product Type: Corbel or Bracket

• Function: Support Granite/Natural stone counter top overhangs, shelves, mantels & more.
• Style:Transitional
• Country of Manufacture: USA
• Eco-Friendly: Yes
• Care: Wipe clean with dry cloth
• Assembly Required: Installation is required but the product is one solid piece
• Included: Brackets sold individually (mounting hardware is not included)

This information is provided by The Marble Institute of Americas published requirements for granite countetops.

What size corbel do I order?

• Your Countertop overhang should not extend past the corbel by more than 4 to 6 inches.
• Example: If your countetop overhang is 10-inches you will want a bracket that measures at least 5 to 6 inches deep.
• All our corbel measurements are listed as depth x height | Example: a 6" x 8" corbel is 6 inches deep and 8 inches high.
• Notes From a Designer: Corbels are meant to be seen. So they generally look best when they are 2/3 as deep as the countertop overhang itself. As an example, when we design countetop overhangs we will keep the end of the corbel 2-4" from the end of the countertop overhang. This does exceed the Marble Institutes requirements but it looks much better from a design perspective.

How many corbels do I order?

• Corbels are generally spaced 24 to 36 inches apart under countertop overhangs.
• To figure out how many corbels you need lets start with 2 corbels at each end of the countertop set 4" to 6" inches in, from the edge.
• Now measure the span left between the 2 end corbels and use the following formula: (span left) divided by (desired spacing).
• Example; an 84" wide countertop with 2 brackets set 4 inches from the end would leave you with 76 inches left to support; (84" - 8" = 76"). Now take 76" divided/by 24" = 3.1, so you would need 3 more corbels for a total of 5 brackets.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 24 inch span between corbels, you would order 5 brackets total. 2 ends brackets and 3 to support the remaining 76" span.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 36 inch span between corbels, you would order 4 brackets total. 2 ends brackets and 2 to support the remaining 76" span.

Shipping

Orders over $149 ship free with standard ground shipping service. Free shipping only applies to locations within the contiguous United States.
Additional charges apply for shipments to Alaska, Hawaii, and Canada.
Most orders ship via FedEx, UPS Ground, USPS 1st class or USPS Priority.

Carrier Calculated Shipping

All orders under $149 will have shipping calculated at checkout.

Shipping Time.

Lead Times vary per item.

All items have a listed lead-time just below the product name or below the ad to cart button. Some Items are stocked and ship next business day while others are Made-To-Order and take up to 14 business days to build. We will allways do everything we can to ship your order ASAP.

Ground Shipping times vary from 3-5 business days.

Expedited (1-2 Day) Shipping is available, you can select that durring checkout as well. Note: Expedited shipping only speeds up ship times not the lead time.

Returns are simple :-)

You may return an item for a refund or credit of the merchandise total within 30 days of delivery; all you need to do is ship the item back to us in new and resalable condition (this means the item has not been used).

To process returns simply visit our returns page to find our return address and simple instructions.

Specifications

• Bracket Size (Depth x Height x Width)
• 6-in x 7.5-in x 2-in
• 7-in x 9.5-in x 2-in
• 9-in x 11.5-in x 2-in
• 10.5-in x 13-in x 2-in
• 12-in x 15-in x 2-in
• 15-in x 19-in x 2-in
• Material: Iron
• Iron Finish Options: Matte Black, or Matte Clear
• Mounting Hardware: Not Included - A total of 4, 3/8 inch diameter holes are drilled into the bracket. 2 holes on the back plate and 2 holes on the top plate.
• Handcrafted in: America (USA)
• Style: Rustic / Farmhouse

Additional Information

• Room: Kitchen, Bar Room, Living Room, Garage, Basically any room in your home or cabin where you could use an iron support bracket.
• Use: This corbel can be used as a granite counter top support, shelf brackets, bar brackets, mantel brackets and more.
• Indoor / Outdoor: Indoor
• Care: Wipe clean with a soft damp cloth.
• Installation Corbels can be installed by a contractor/builder or a handy Do-It-Yourselfer. For detailed installation instructions please see "Installation" link below.
• Structural Warranty Life Time (touch up paint available for scratches if that happens)

This information is provided by The Marble Institute of Americas published requirements for granite countetops.

What size corbel do I order?

• Your Countertop overhang should not extend past the corbel by more than 4 to 6 inches.
• Example: If your countetop overhang is 10-inches you will want a bracket that measures at least 5 to 6 inches deep.
• All our corbel measurements are listed as depth x height | Example: a 6" x 8" corbel is 6 inches deep and 8 inches high.
• Notes From a Designer: Corbels are meant to be seen. So they generally look best when they are 2/3 as deep as the countertop overhang itself. As an example, when we design countetop overhangs we will keep the end of the corbel 2-4" from the end of the countertop overhang. This does exceed the Marble Institutes requirements but it looks much better from a design perspective.

How many corbels do I order?

• Corbels are generally spaced 24 to 36 inches apart under countertop overhangs.
• To figure out how many corbels you need lets start with 2 corbels at each end of the countertop set 4" to 6" inches in, from the edge.
• Now measure the span left between the 2 end corbels and use the following formula: (span left) divided by (desired spacing).
• Example; an 84" wide countertop with 2 brackets set 4 inches from the end would leave you with 76 inches left to support; (84" - 8" = 76"). Now take 76" divided/by 24" = 3.1, so you would need 3 more corbels for a total of 5 brackets.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 24 inch span between corbels, you would order 5 brackets total. 2 ends brackets and 3 to support the remaining 76" span.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 36 inch span between corbels, you would order 4 brackets total. 2 ends brackets and 2 to support the remaining 76" span.

Shipping

Orders over $149 ship free with standard ground shipping service. Free shipping only applies to locations within the contiguous United States.
Additional charges apply for shipments to Alaska, Hawaii, and Canada.
Most orders ship via FedEx, UPS Ground, USPS 1st class or USPS Priority.

Carrier Calculated Shipping

All orders under $149 will have shipping calculated at checkout.

Shipping Time.

Lead Times vary per item.

All items have a listed lead-time just below the product name or below the ad to cart button. Some Items are stocked and ship next business day while others are Made-To-Order and take up to 14 business days to build. We will allways do everything we can to ship your order ASAP.

Ground Shipping times vary from 3-5 business days.

Expedited (1-2 Day) Shipping is available, you can select that durring checkout as well. Note: Expedited shipping only speeds up ship times not the lead time.

Returns are simple :-)

You may return an item for a refund or credit of the merchandise total within 30 days of delivery; all you need to do is ship the item back to us in new and resalable condition (this means the item has not been used).

To process returns simply visit our returns page to find our return address and simple instructions.

This Cooper Corbel inherits its rustic look from the solid hand-forged iron center brace. A perfect support bracket for rustic cabins, homes and restaurant bars.

The L-Bracket is made from thick 1/4-inch steel with predrilled holes for mounting the bracket to any surface. 2 holes are in the top part of this bracket, their use is optional if the application needs them, ex: shelving, mantels, etc...

Specifications

• Dimensions: L-bracket is 1/4-inch thick by 2" wide.
• Size Options: (depth x height) 5.5 x 8 | 6.5 x 9 | 7.5 x 10 | 8.5 x 11 | 9.5 x 12 | 10.5 x 13 | 11.5" Deep x 14" High | 13.5" Deep x 16" High
• Material: Iron
• Iron Finish Options: 7 Finishes Available (see image under product photo)
• Pictured: Cooper Corbel With Oil Rubbed Bronze Finish
• Indoor / Outdoor Use: Brackets are powder-coated (unless you select unfinished). They will last a substantial amount of time outdoors, but like all steel products, sooner or later they will show signs of rust in areas that hold water. Keep in mind, if you install our products underneath a counter or roof overhang outdoors, our products should last for many years without concern. And they can always be refinished.

Additional Info.

• Product Type: Corbel or Support Bracket

• Function: Support Granite & Natural stone counter top overhangs, shelves, mantels & more.
• Weight Capacity: Properly mounted each Corbel will support 200-lbs.
• Style: Rustic
• Country of Manufacture: USA
• Eco-Friendly: Yes
• Care: Wipe clean with dry cloth
• Assembly Required: Installation is required but the product is one solid piece
• Included: Brackets sold individually (mounting hardware is not included)

This information is provided by The Marble Institute of Americas published requirements for granite countetops.

What size corbel do I order?

• Your Countertop overhang should not extend past the corbel by more than 4 to 6 inches.
• Example: If your countetop overhang is 10-inches you will want a bracket that measures at least 5 to 6 inches deep.
• All our corbel measurements are listed as depth x height | Example: a 6" x 8" corbel is 6 inches deep and 8 inches high.
• Notes From a Designer: Corbels are meant to be seen. So they generally look best when they are 2/3 as deep as the countertop overhang itself. As an example, when we design countetop overhangs we will keep the end of the corbel 2-4" from the end of the countertop overhang. This does exceed the Marble Institutes requirements but it looks much better from a design perspective.

How many corbels do I order?

• Corbels are generally spaced 24 to 36 inches apart under countertop overhangs.
• To figure out how many corbels you need lets start with 2 corbels at each end of the countertop set 4" to 6" inches in, from the edge.
• Now measure the span left between the 2 end corbels and use the following formula: (span left) divided by (desired spacing).
• Example; an 84" wide countertop with 2 brackets set 4 inches from the end would leave you with 76 inches left to support; (84" - 8" = 76"). Now take 76" divided/by 24" = 3.1, so you would need 3 more corbels for a total of 5 brackets.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 24 inch span between corbels, you would order 5 brackets total. 2 ends brackets and 3 to support the remaining 76" span.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 36 inch span between corbels, you would order 4 brackets total. 2 ends brackets and 2 to support the remaining 76" span.

Shipping

Orders over $149 ship free with standard ground shipping service. Free shipping only applies to locations within the contiguous United States.
Additional charges apply for shipments to Alaska, Hawaii, and Canada.
Most orders ship via FedEx, UPS Ground, USPS 1st class or USPS Priority.

Carrier Calculated Shipping

All orders under $149 will have shipping calculated at checkout.

Shipping Time.

Lead Times vary per item.

All items have a listed lead-time just below the product name or below the ad to cart button. Some Items are stocked and ship next business day while others are Made-To-Order and take up to 14 business days to build. We will allways do everything we can to ship your order ASAP.

Ground Shipping times vary from 3-5 business days.

Expedited (1-2 Day) Shipping is available, you can select that durring checkout as well. Note: Expedited shipping only speeds up ship times not the lead time.

Returns are simple :-)

You may return an item for a refund or credit of the merchandise total within 30 days of delivery; all you need to do is ship the item back to us in new and resalable condition (this means the item has not been used).

To process returns simply visit our returns page to find our return address and simple instructions.

The Freeman corbel is a perfect fit for those looking for clean lines, and a low profile. Available in many sizes and finishes to fit your needs. The L-Bracket is made from thick 1/4-inch steel with holes for mounting the bracket to any surface 2 holes are in the top part of this bracket, their use is optional if the application needs them (shelving, mantels, etc...)

Specifications

• Dimensions: L-bracket is 1/4-inch thick by 2" wide.
• Size Options: (depth x height) 5.5 x 8 | 6.5 x 9 | 7.5 x 10 | 8.5 x 11 | 9.5 x 12 | 10.5 x 13 | 11.5" Deep x 14" High | 13.5" Deep x 16" High | 14.5" Deep x 17" High | 15.5" Deep x 18" High
• Material: Iron
• Iron Finish Options: 7 Finishes Available
• Pictured: Freeman Corbel With Black Finish
• Indoor|Outdoor Use: Brackets are powder-coated, (unless you select unfinished) they will last a substantial amount of time outdoors, but like all steel products, sooner or later they will show signs of rust in areas that hold water. Consider steel patio furniture, they're in the sun, rain, snow etc... for years before showing any signs of rust. Keep in mind, if you install our products underneath a counter or roof overhang outdoors, our products should last for many years without concern.

Additional Info.

• Product Type: Corbel or Bracket

• Function: Support Granite/Natural stone counter top overhangs, shelves, mantels & more.
• Weight Capacity: When properly mounted each Corbel can hold 150-lbs each.
• Style: Contemporary
• Country of Manufacture: USA
• Eco-Friendly: Yes
• Care: Wipe clean with dry cloth
• Assembly Required: Installation is required but the product is one solid piece
• Included: Brackets sold individually (mounting hardware is not included)

This information is provided by The Marble Institute of Americas published requirements for granite countetops.

What size corbel do I order?

• Your Countertop overhang should not extend past the corbel by more than 4 to 6 inches.
• Example: If your countetop overhang is 10-inches you will want a bracket that measures at least 5 to 6 inches deep.
• All our corbel measurements are listed as depth x height | Example: a 6" x 8" corbel is 6 inches deep and 8 inches high.
• Notes From a Designer: Corbels are meant to be seen. So they generally look best when they are 2/3 as deep as the countertop overhang itself. As an example, when we design countetop overhangs we will keep the end of the corbel 2-4" from the end of the countertop overhang. This does exceed the Marble Institutes requirements but it looks much better from a design perspective.

How many corbels do I order?

• Corbels are generally spaced 24 to 36 inches apart under countertop overhangs.
• To figure out how many corbels you need lets start with 2 corbels at each end of the countertop set 4" to 6" inches in, from the edge.
• Now measure the span left between the 2 end corbels and use the following formula: (span left) divided by (desired spacing).
• Example; an 84" wide countertop with 2 brackets set 4 inches from the end would leave you with 76 inches left to support; (84" - 8" = 76"). Now take 76" divided/by 24" = 3.1, so you would need 3 more corbels for a total of 5 brackets.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 24 inch span between corbels, you would order 5 brackets total. 2 ends brackets and 3 to support the remaining 76" span.
• For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 36 inch span between corbels, you would order 4 brackets total. 2 ends brackets and 2 to support the remaining 76" span.

Shipping

Orders over $149 ship free with standard ground shipping service. Free shipping only applies to locations within the contiguous United States.
Additional charges apply for shipments to Alaska, Hawaii, and Canada.
Most orders ship via FedEx, UPS Ground, USPS 1st class or USPS Priority.

Carrier Calculated Shipping

All orders under $149 will have shipping calculated at checkout.

Shipping Time.

Lead Times vary per item.

All items have a listed lead-time just below the product name or below the ad to cart button. Some Items are stocked and ship next business day while others are Made-To-Order and take up to 14 business days to build. We will allways do everything we can to ship your order ASAP.

Ground Shipping times vary from 3-5 business days.

Expedited (1-2 Day) Shipping is available, you can select that durring checkout as well. Note: Expedited shipping only speeds up ship times not the lead time.

Returns are simple :-)

You may return an item for a refund or credit of the merchandise total within 30 days of delivery; all you need to do is ship the item back to us in new and resalable condition (this means the item has not been used).

To process returns simply visit our returns page to find our return address and simple instructions.

View Bracket Detail Drawing (PDF)

Product Buying Tips (PDF)

• Made in the USA
• Perfect for supporting short-overhang countertop surfaces on kneewalls or kitchen islands.
• The narrow profile makes this support nearly invisible for a clean look.
• Used to support - Granite, Quartz, Natural Stone, Concrete, Wood, Fermica, and all other countertop materials.
• Material - Solid 1/2" Thick x 2.5" Wide American Steel
• Finish - Premium powder coated matte black finish
• Made to screw into 2x4 or 2x6 lumber
• Wood Screws Included

• Carry Capacity - 375 pounds per bracket

How Many Brackets Should You Use?

You will want to space your brackets 16-20 inches apart, this will allow for maximum support.

What Size Bracket Should You Use?

The Hidden Granite Countertop Flat Bracket is sized from tip to tip. When determining what size you should use, you don't want to have an overhang more than 3" past the edge of the bracket. Be sure to add the measurement of the pony wall as well in your measuring.

For example, if you have a 15 inch overhang and a 4 inch pony wall, (15+4=19), minus the 3 inch you need for the overhang, (19-3=16) you would need a 16 inch Flat Bracket.

Shipping

Orders over $149 ship free with standard ground shipping service. Free shipping only applies to locations within the contiguous United States.
Additional charges apply for shipments to Alaska, Hawaii, and Canada.
Most orders ship via FedEx, UPS Ground, USPS 1st class or USPS Priority.

Carrier Calculated Shipping

All orders under $149 will have shipping calculated at checkout.

Shipping Time.

Lead Times vary per item.

All items have a listed lead-time just below the product name or below the ad to cart button. Some Items are stocked and ship next business day while others are Made-To-Order and take up to 14 business days to build. We will allways do everything we can to ship your order ASAP.

Ground Shipping times vary from 3-5 business days.

Expedited (1-2 Day) Shipping is available, you can select that durring checkout as well. Note: Expedited shipping only speeds up ship times not the lead time.

Returns are simple :-)

You may return an item for a refund or credit of the merchandise total within 30 days of delivery; all you need to do is ship the item back to us in new and resalable condition (this means the item has not been used).

To process returns simply visit our returns page to find our return address and simple instructions.

View Bracket Detail Drawing (PDF)

Product Buying Tips (PDF)

• Perfect for supporting heavy granite countertop surfaces on kneewalls or kitchen islands.

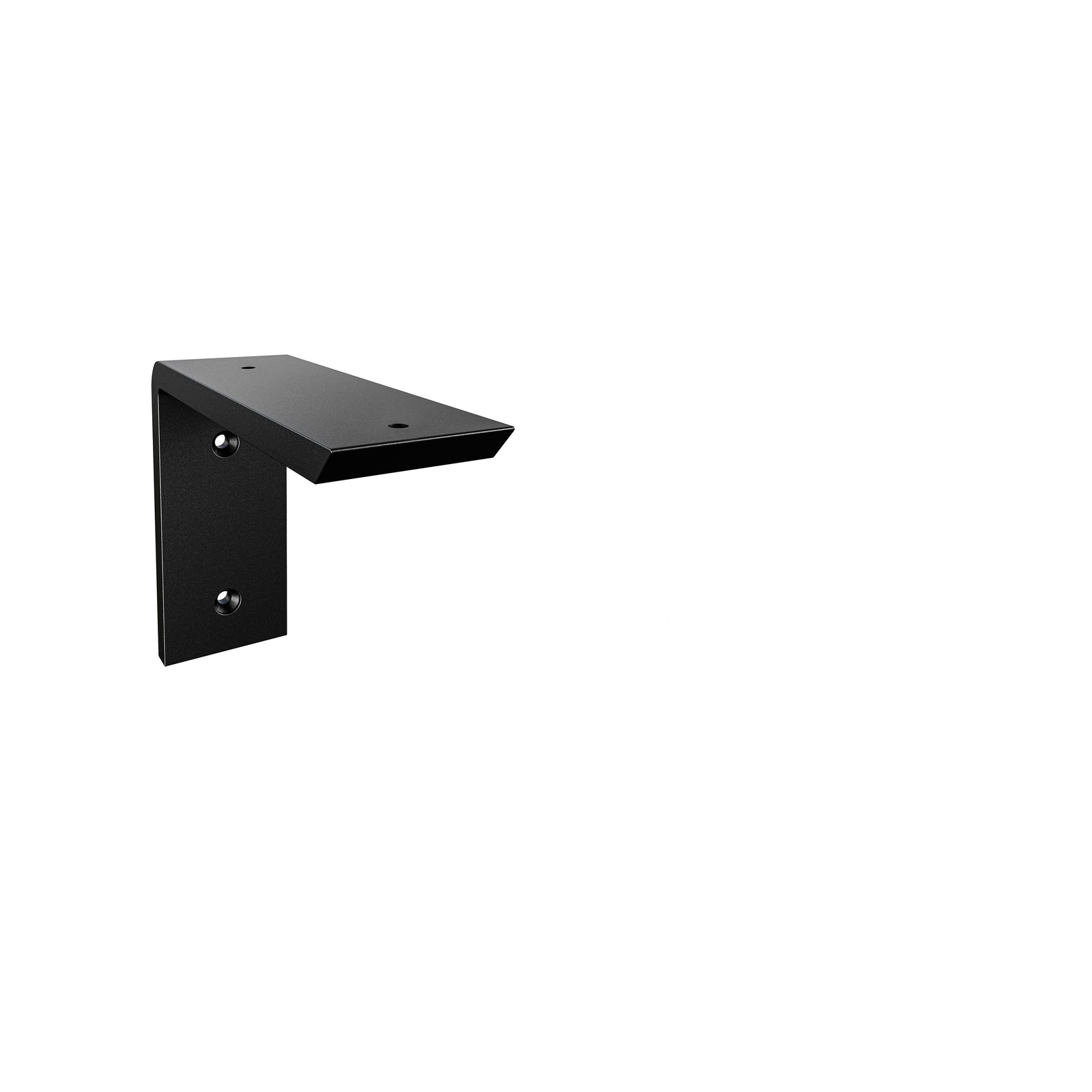

• The screws get screwed in from the front.
• The narrow profile makes this support nearly invisible for a clean look.
• Can be used as a universal shelf bracket.
• Used to support Granite, Quartz, Wood, Fermica countertop materials.
• Made to screw into 2x4 or 2x6 lumber.
• Includes required wood screws for your convenience.

Shipping

Orders over $149 ship free with standard ground shipping service. Free shipping only applies to locations within the contiguous United States.
Additional charges apply for shipments to Alaska, Hawaii, and Canada.
Most orders ship via FedEx, UPS Ground, USPS 1st class or USPS Priority.

Carrier Calculated Shipping

All orders under $149 will have shipping calculated at checkout.

Shipping Time.

Lead Times vary per item.

All items have a listed lead-time just below the product name or below the ad to cart button. Some Items are stocked and ship next business day while others are Made-To-Order and take up to 14 business days to build. We will allways do everything we can to ship your order ASAP.

Ground Shipping times vary from 3-5 business days.

Expedited (1-2 Day) Shipping is available, you can select that durring checkout as well. Note: Expedited shipping only speeds up ship times not the lead time.

Returns are simple :-)

You may return an item for a refund or credit of the merchandise total within 30 days of delivery; all you need to do is ship the item back to us in new and resalable condition (this means the item has not been used).

To process returns simply visit our returns page to find our return address and simple instructions.

View Bracket Detail Drawing (PDF)

Product Buying Tips (PDF)

• Perfect for supporting heavy granite countertop surfaces on kneewalls or kitchen islands.
• The added vertical brace give more support and stability.
• The narrow profile makes this support nearly invisible for a clean look.
• The cost effective and reliable flat countertop bracket is the most popular style.
• Used to support Granite, Quartz, Wood, Fermica countertop materials.
• Made to screw into 2x4 or 2x6 lumber.
• Includes required wood screws for your convenience.

Shipping

Orders over $149 ship free with standard ground shipping service. Free shipping only applies to locations within the contiguous United States.
Additional charges apply for shipments to Alaska, Hawaii, and Canada.
Most orders ship via FedEx, UPS Ground, USPS 1st class or USPS Priority.

Carrier Calculated Shipping

All orders under $149 will have shipping calculated at checkout.

Shipping Time.

Lead Times vary per item.

All items have a listed lead-time just below the product name or below the ad to cart button. Some Items are stocked and ship next business day while others are Made-To-Order and take up to 14 business days to build. We will allways do everything we can to ship your order ASAP.

Ground Shipping times vary from 3-5 business days.

Expedited (1-2 Day) Shipping is available, you can select that durring checkout as well. Note: Expedited shipping only speeds up ship times not the lead time.

Returns are simple :-)

You may return an item for a refund or credit of the merchandise total within 30 days of delivery; all you need to do is ship the item back to us in new and resalable condition (this means the item has not been used).

To process returns simply visit our returns page to find our return address and simple instructions.

View Bracket Detail Drawing (PDF)

Product Buying Tips

• Made in the USA

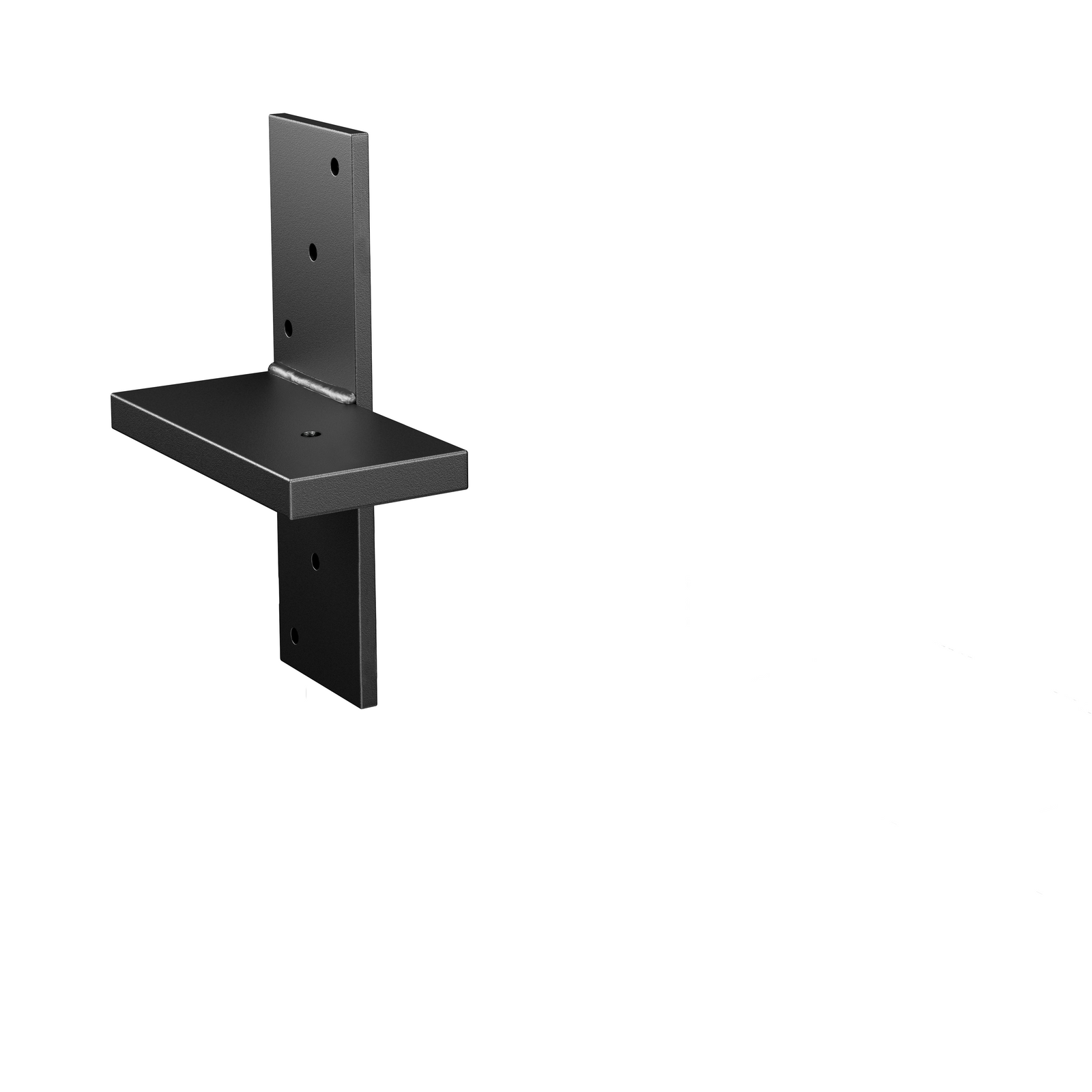

• Perfect for supporting floating shelves, floating bars, and floating desks on a wall.
• Can be used universally as left hand mounted or right hand.
• Screws to wall studs prior to adding drywall finish.
• The narrow profile makes this support nearly invisible for a clean look.
• Used to support - Granite, Quartz, Natural Stone, Concrete, Wood, Fermica, and all other countertop materials.
• Material - Solid 1/2" Thick x 2.5" Wide American Steel
• Finish - Premium powder coated matte black or white finish
• Made to screw into 2x4 or 2x6 lumber
• Wood Lag Bolts Included for Your Convenience.

• 325 pounds per bracket

How Many Brackets Should You Use?

You will want to space your brackets 16" - 24" apart, this will allow for maximum support.

What Size Bracket Should You Use?

When measuring for length remember the horizontal piece is measured from what will be exposed on finished wall. You can exclude the part of the brace that will be inside the wall (2.5 inches) as this is already figured into the size.

For example, if you have a 12” wide shelf you would stay 2-3 inches from the outer edge. Therefor, 12” inches minus 2.5” equals a 9.5” shelf bracket. (The total length from tip to tip 10.5”) Please look at the Detail Drawing above for further clarification.

Shipping

Orders over $149 ship free with standard ground shipping service. Free shipping only applies to locations within the contiguous United States.
Additional charges apply for shipments to Alaska, Hawaii, and Canada.
Most orders ship via FedEx, UPS Ground, USPS 1st class or USPS Priority.

Carrier Calculated Shipping

All orders under $149 will have shipping calculated at checkout.

Shipping Time.

Lead Times vary per item.

All items have a listed lead-time just below the product name or below the ad to cart button. Some Items are stocked and ship next business day while others are Made-To-Order and take up to 14 business days to build. We will allways do everything we can to ship your order ASAP.

Ground Shipping times vary from 3-5 business days.

Expedited (1-2 Day) Shipping is available, you can select that durring checkout as well. Note: Expedited shipping only speeds up ship times not the lead time.

Returns are simple :-)

You may return an item for a refund or credit of the merchandise total within 30 days of delivery; all you need to do is ship the item back to us in new and resalable condition (this means the item has not been used).

To process returns simply visit our returns page to find our return address and simple instructions.
