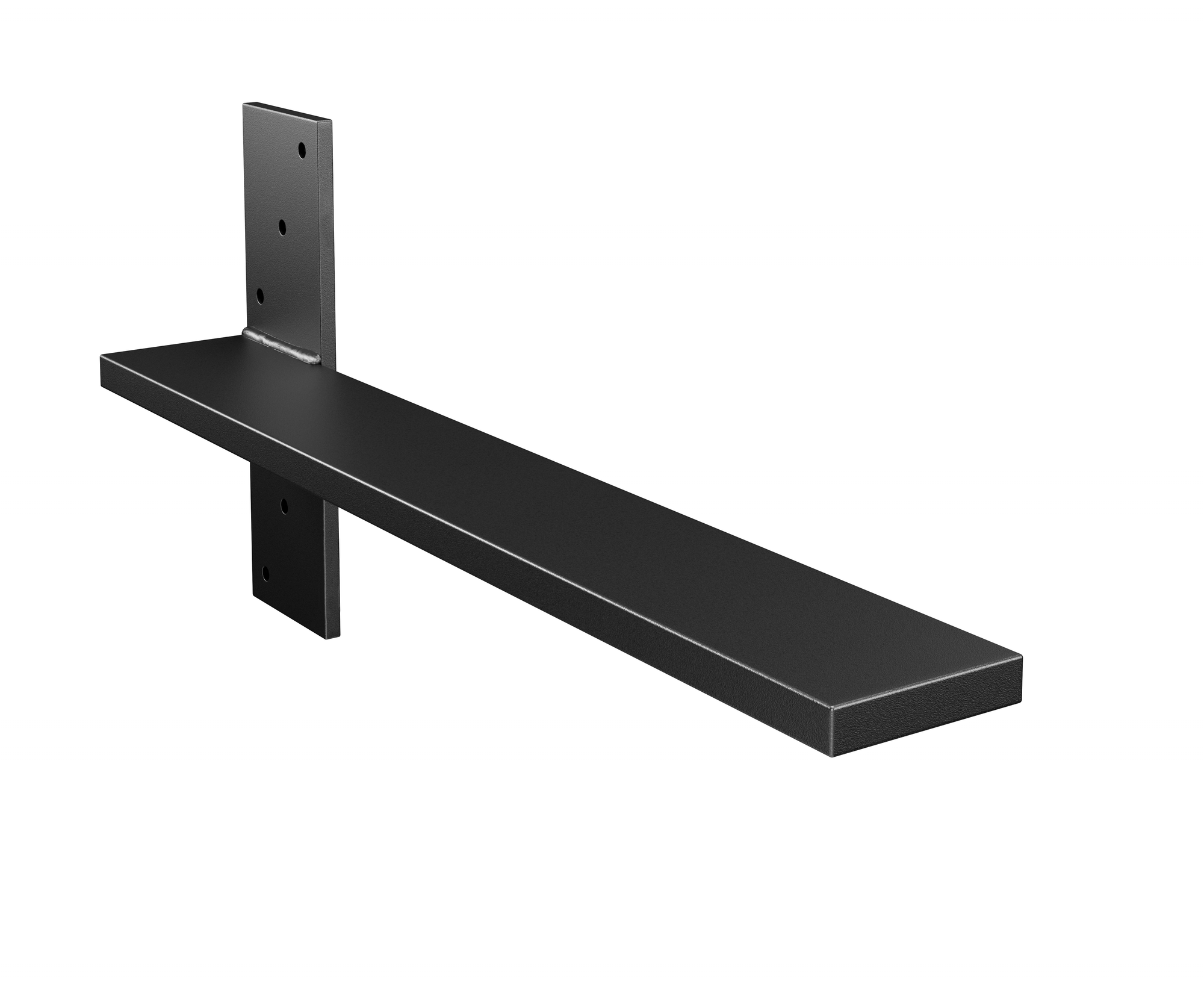

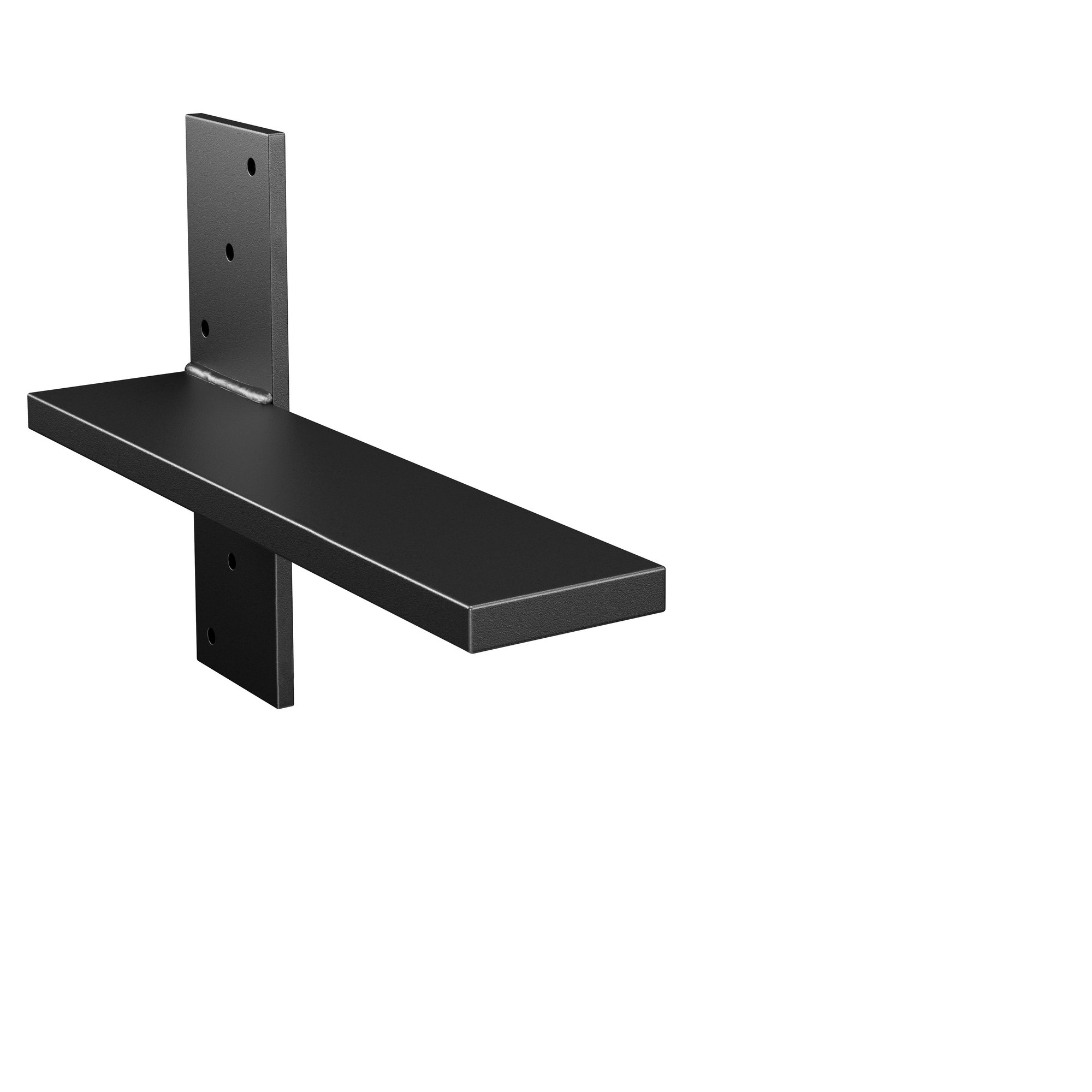

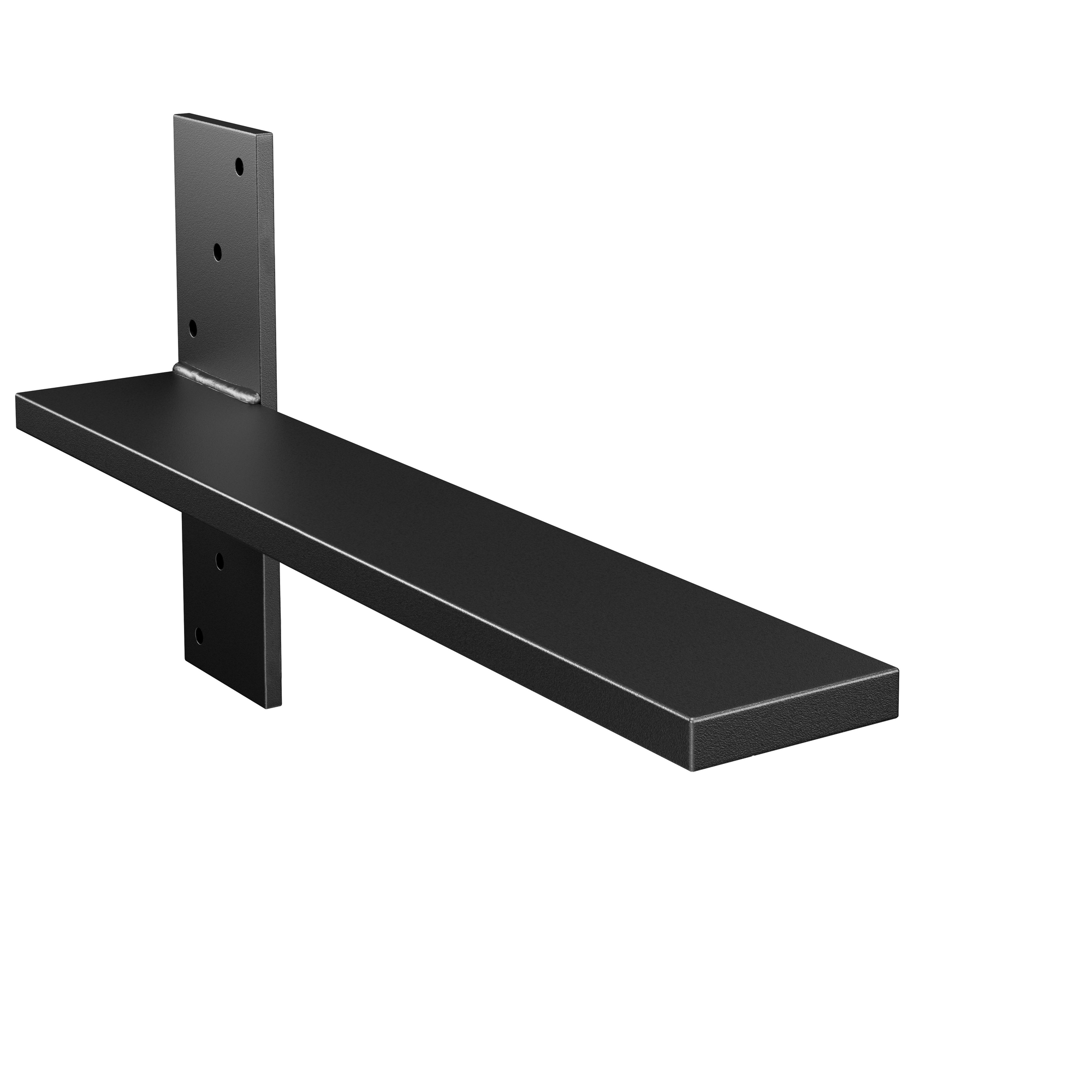

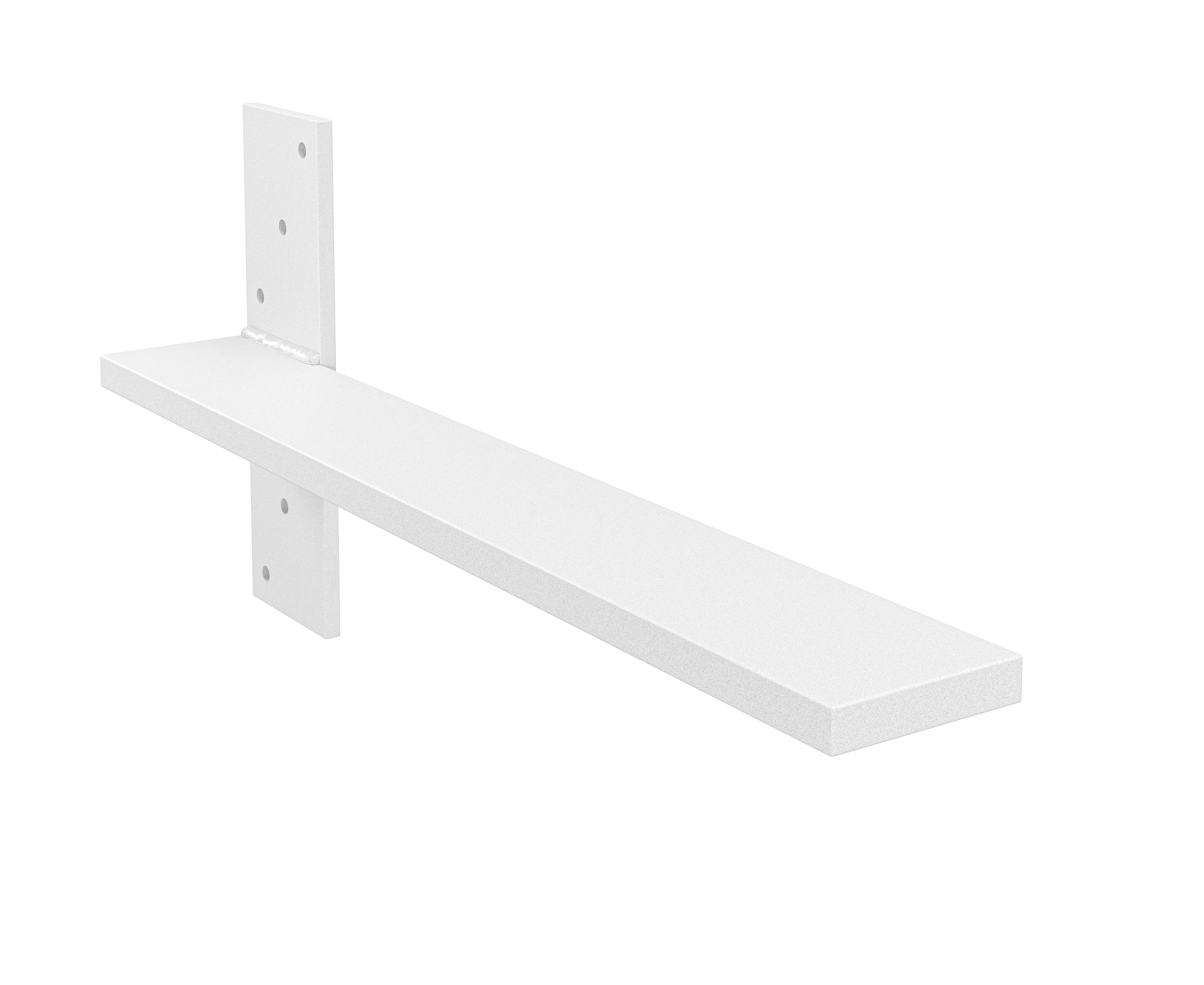

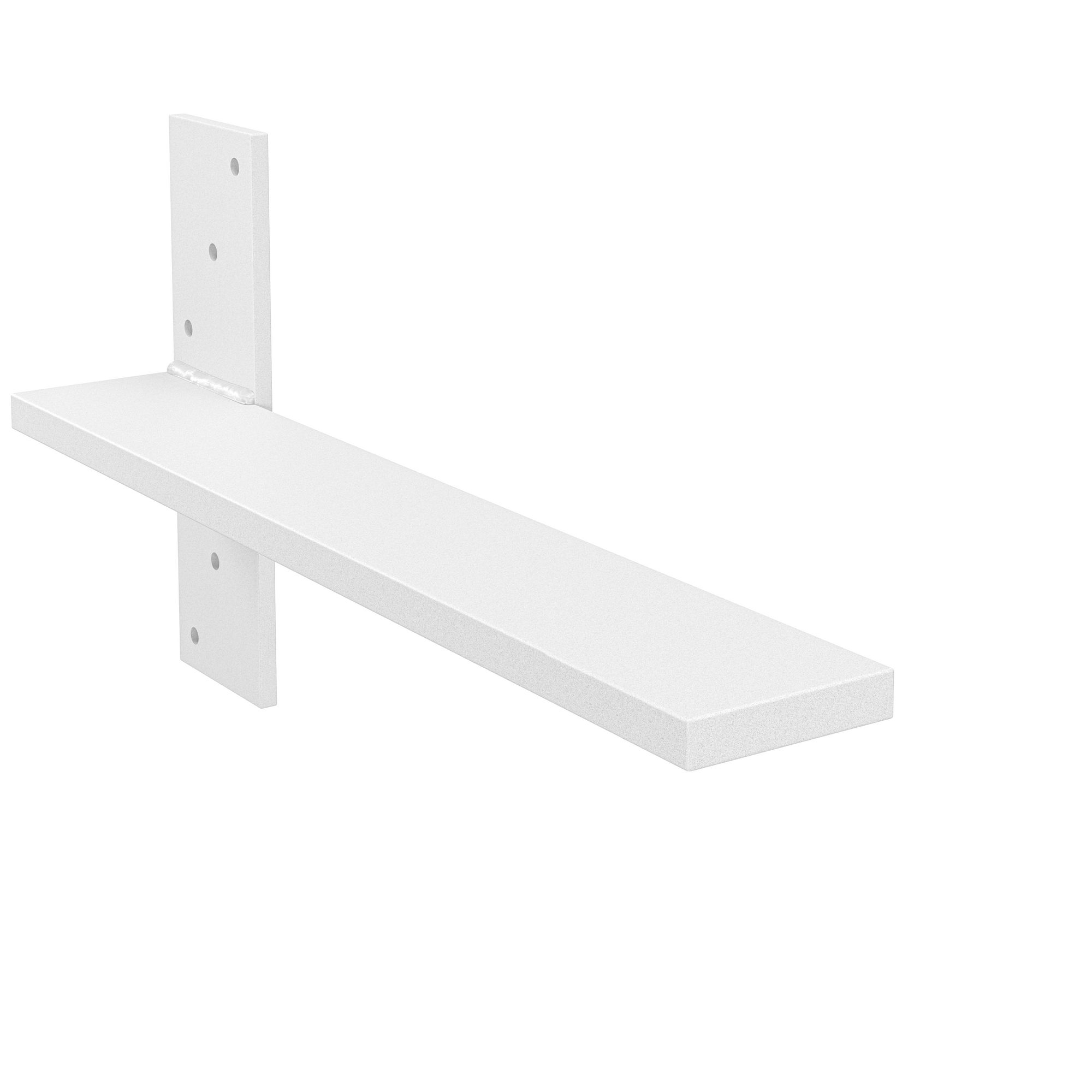

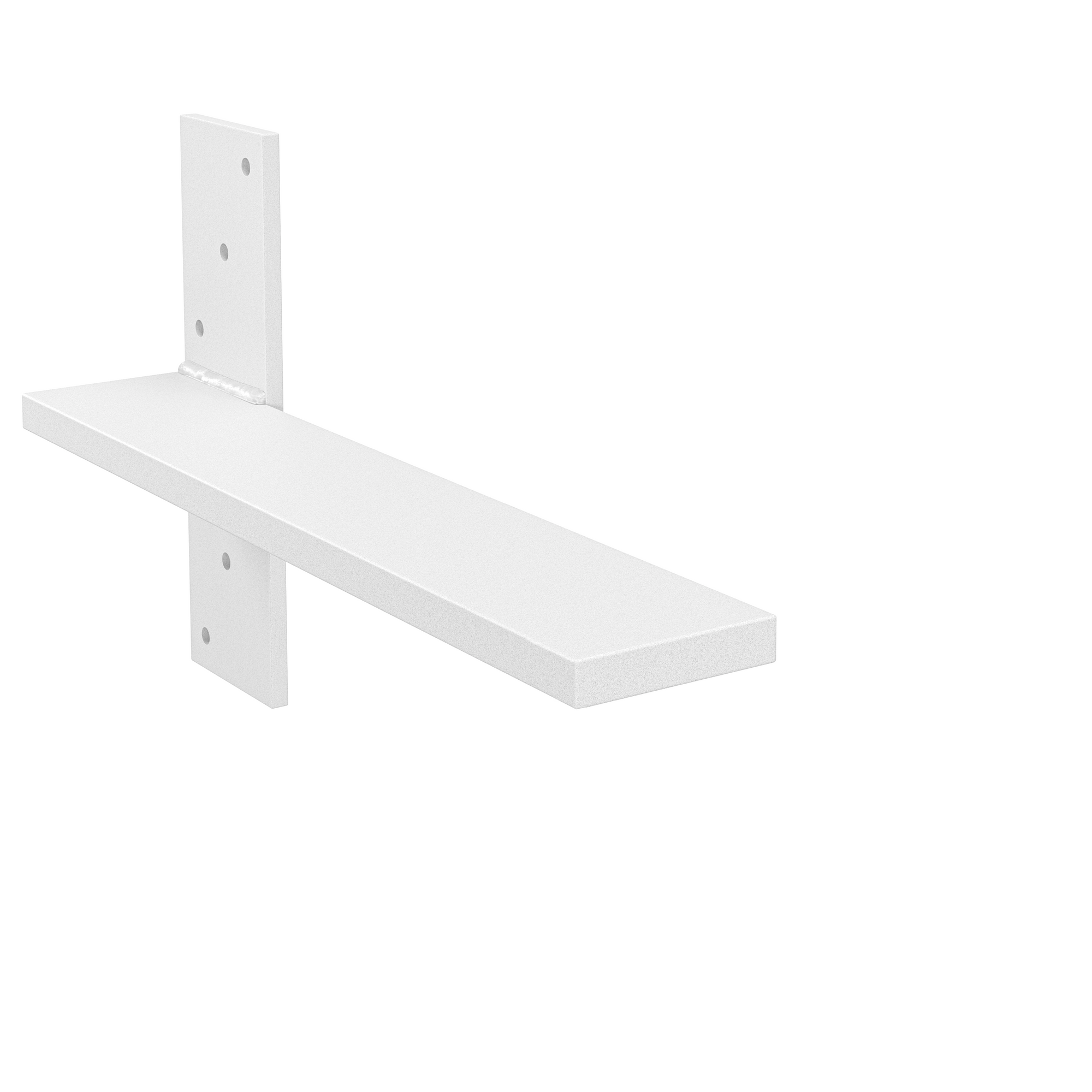

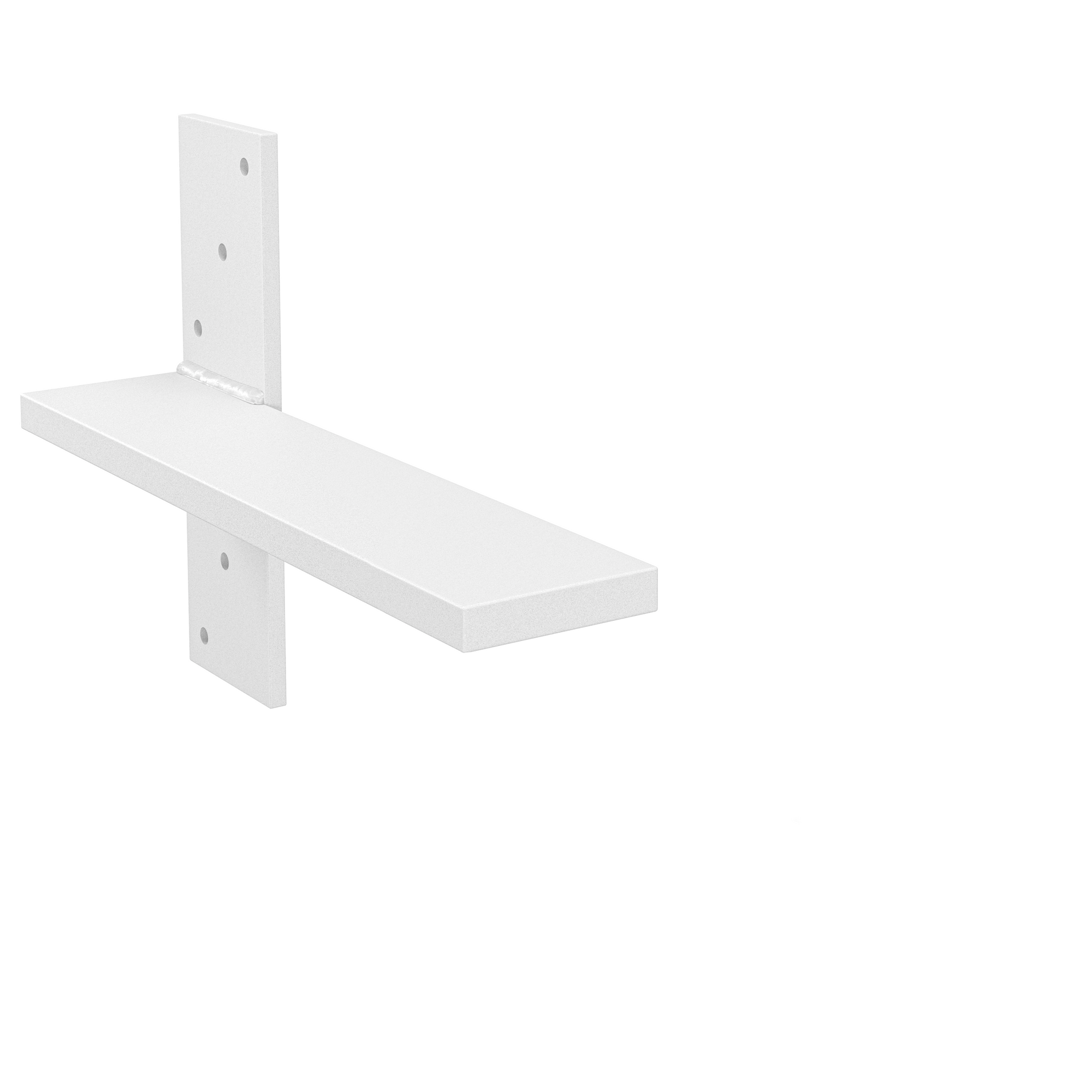

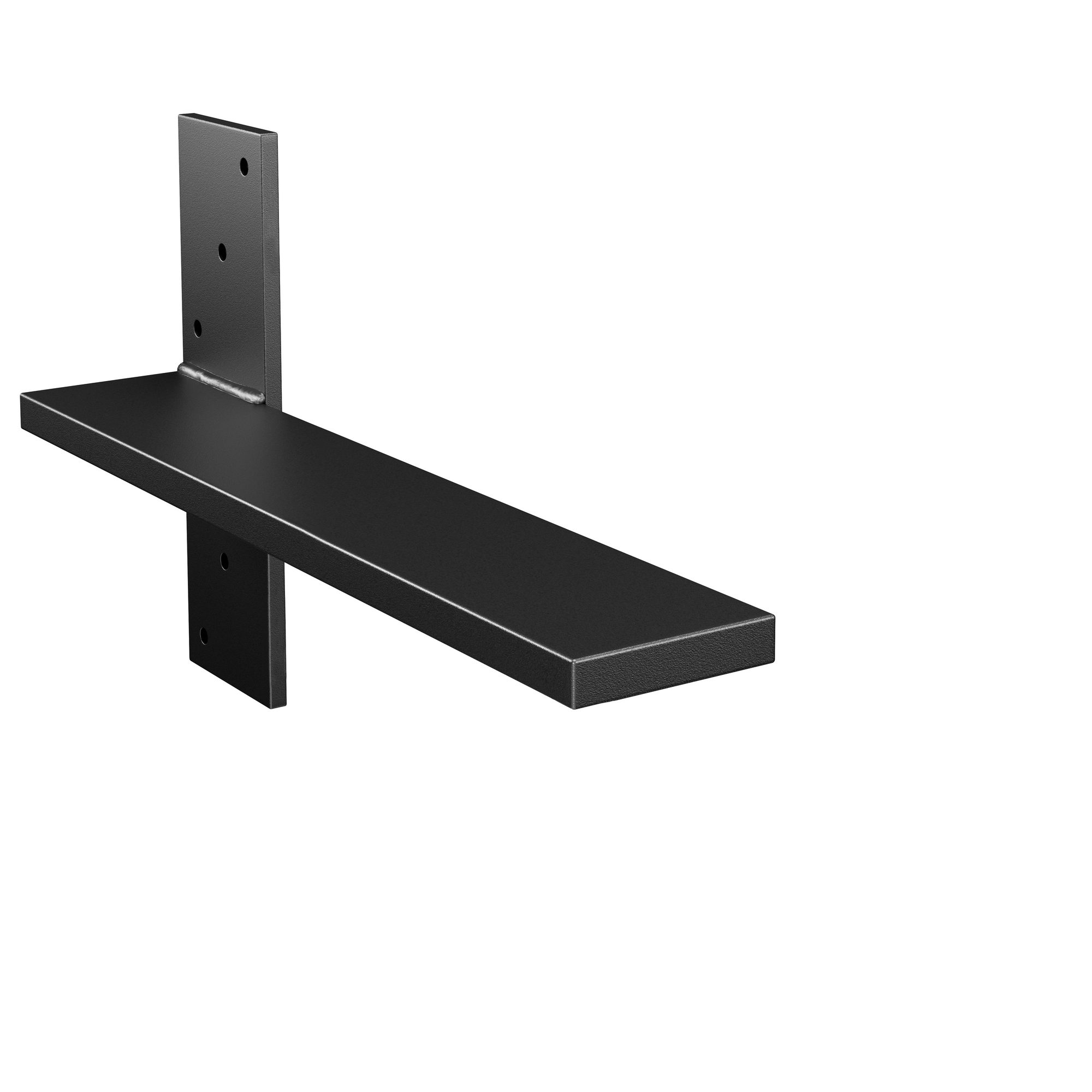

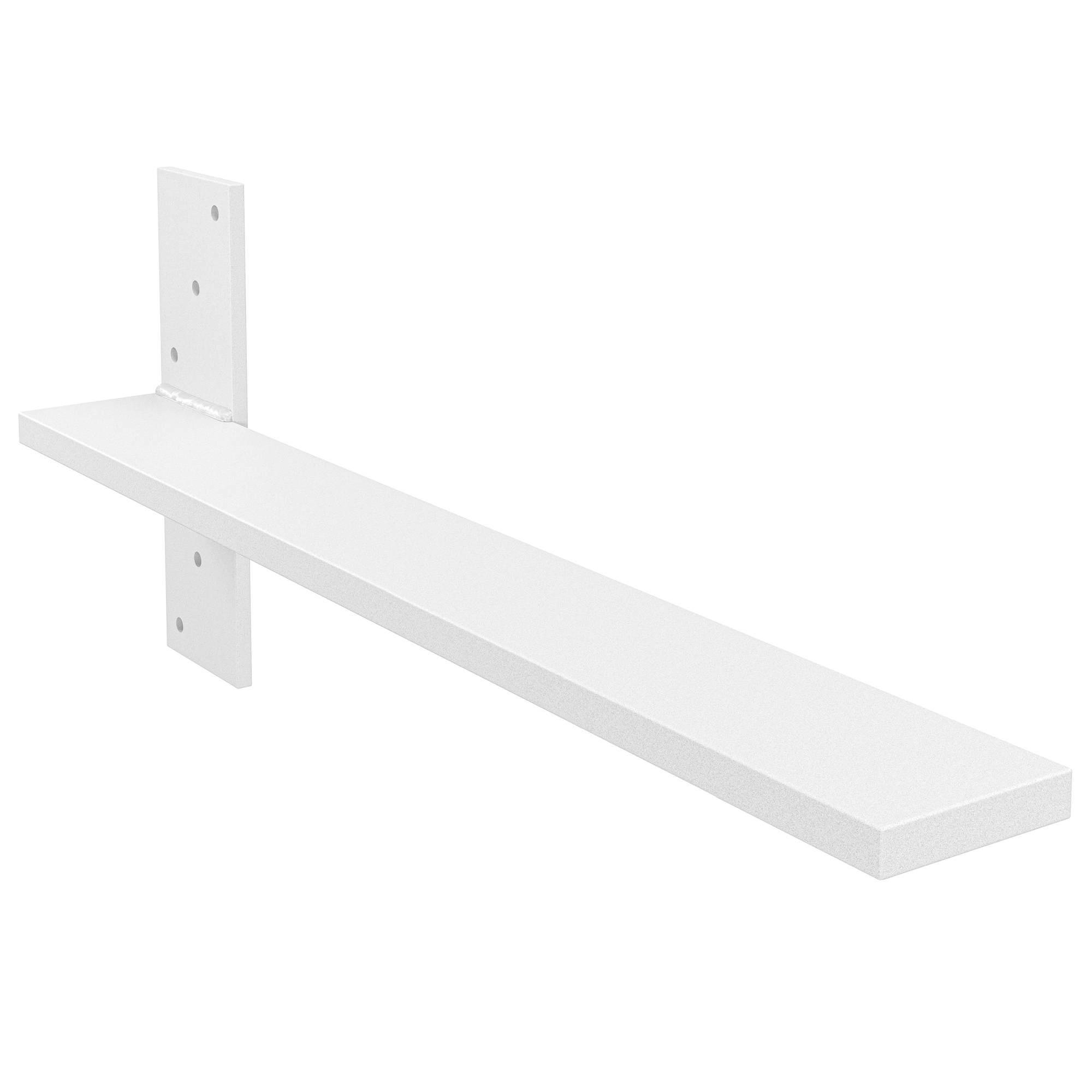

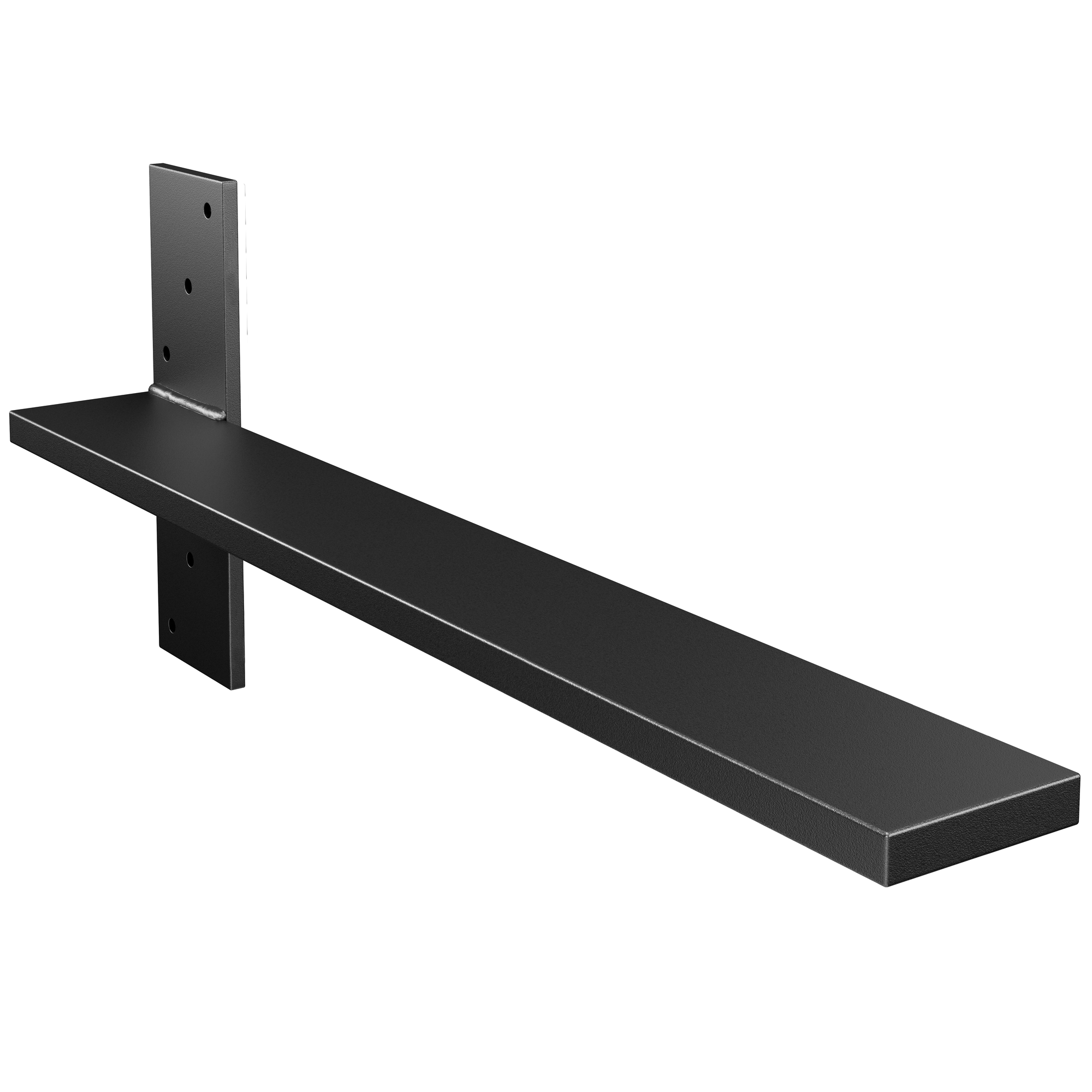

Hidden Floating Bench Bracket

Ready to create a stunning floating bench without visible supports? Our Hidden Stud-Mounted Floating Bench Bracket is your solution. Unlike surface-mounted brackets, this innovative design secures directly to wall studs, staying completely concealed behind the wall for a seamless, modern look. Perfect for indoor spaces like mudrooms and kitchens or outdoor covered patios, it blends industrial-grade strength with minimalist style—ideal for homeowners and contractors seeking a premium seating solution.

Crafted from solid American steel and finished with durable powder coating, this bracket supports up to 300 lbs per pair, making it a reliable choice for custom benches in high-traffic areas. Say goodbye to bulky external supports and hello to clean, floating elegance—buy direct from the manufacturer for unmatched quality and value!

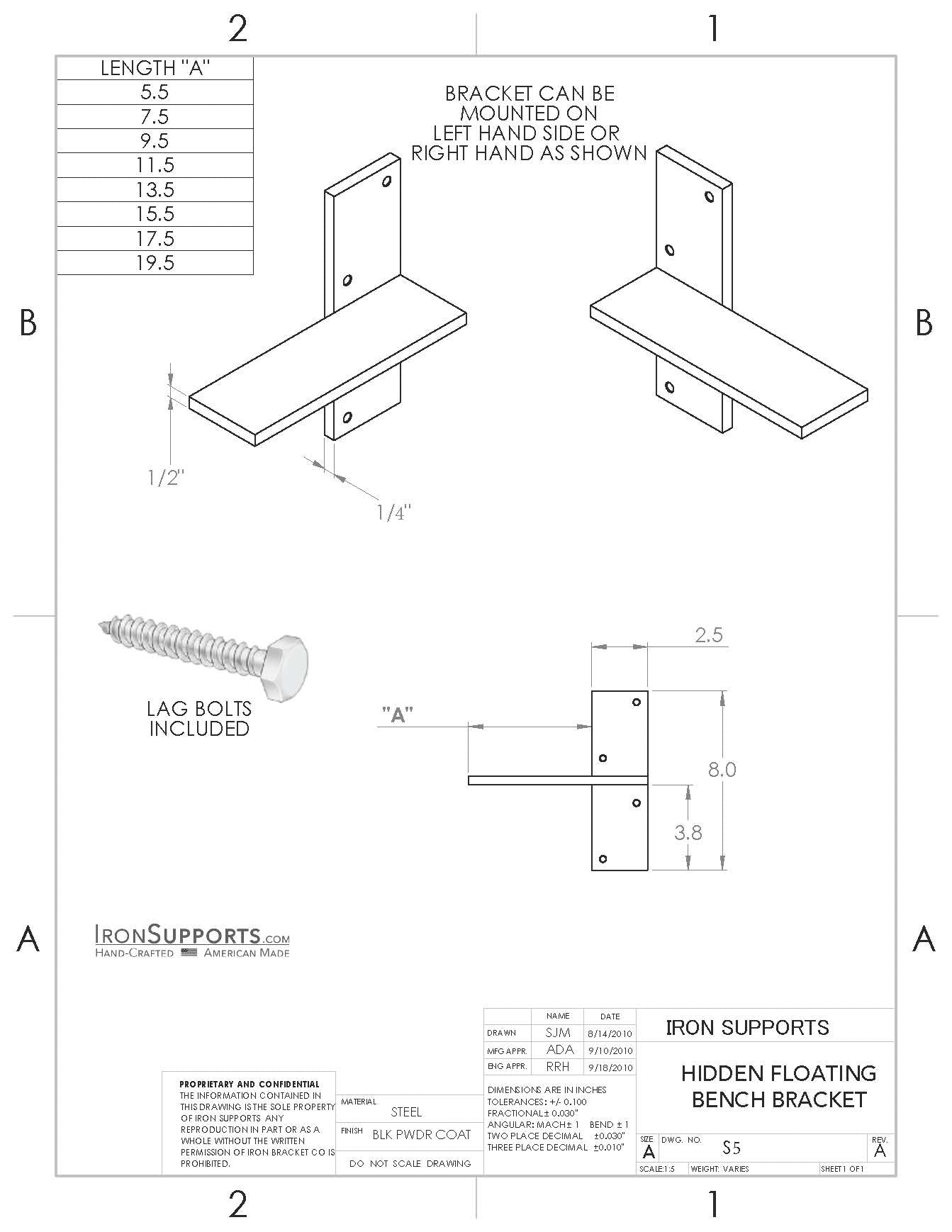

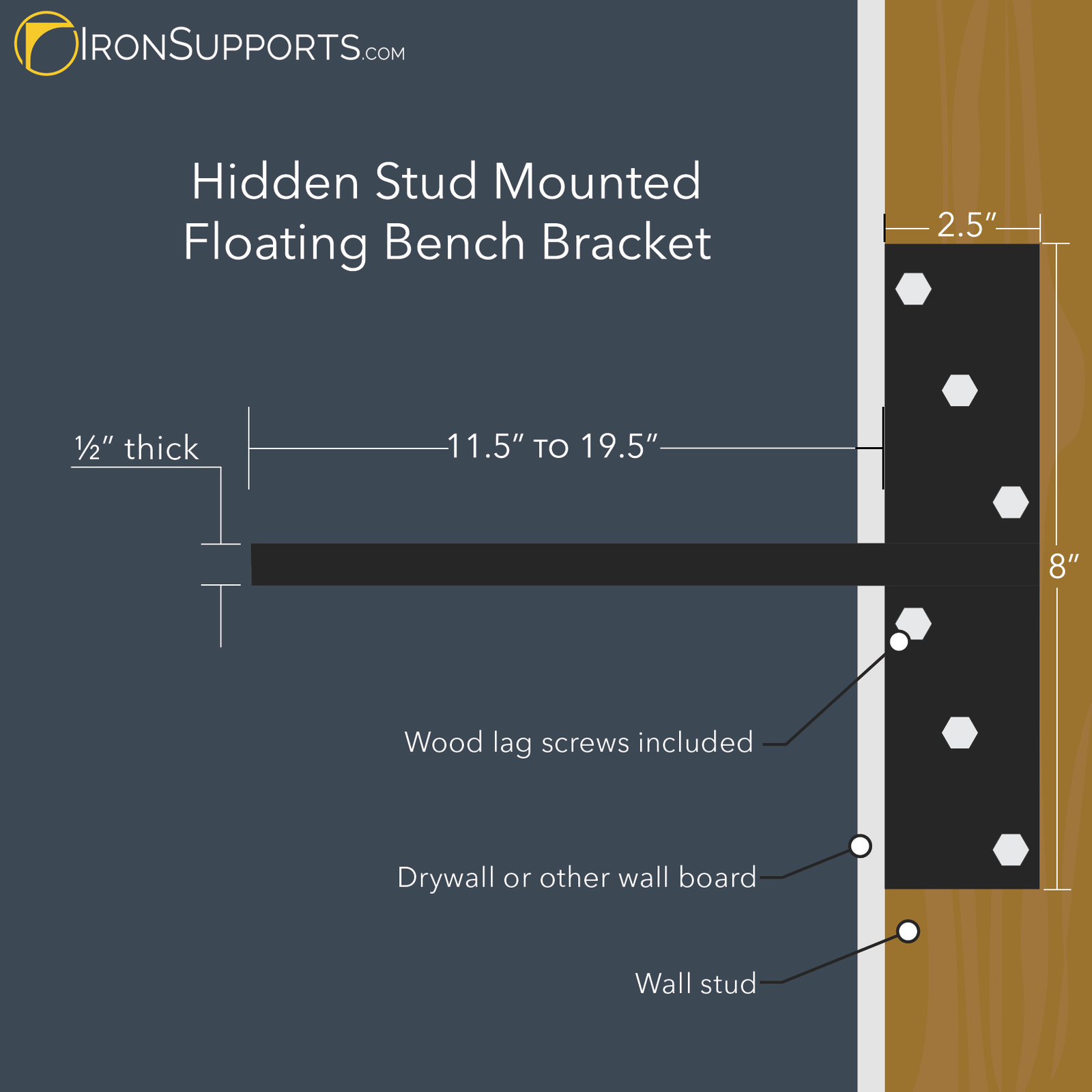

Technical Specifications

• Size Options:

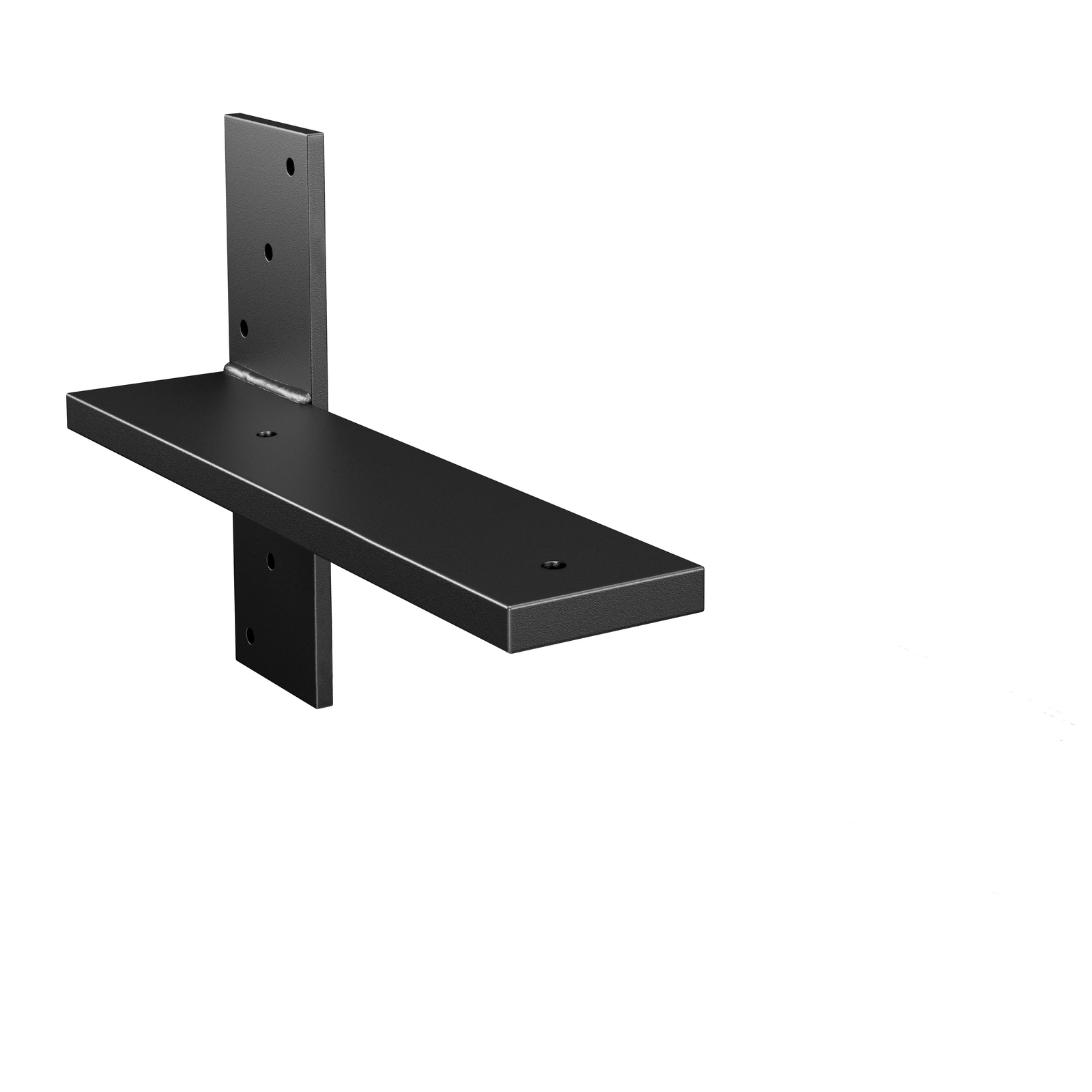

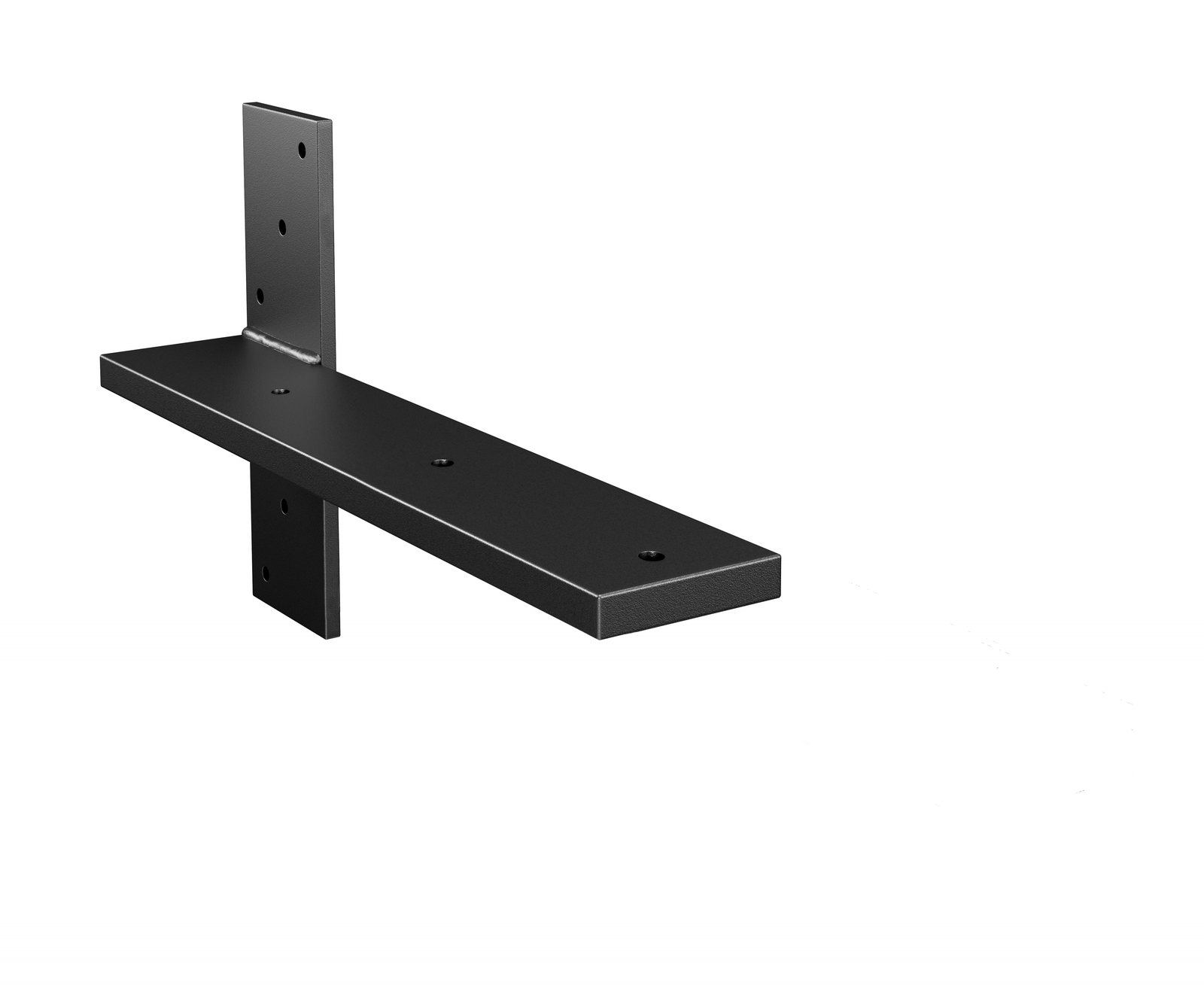

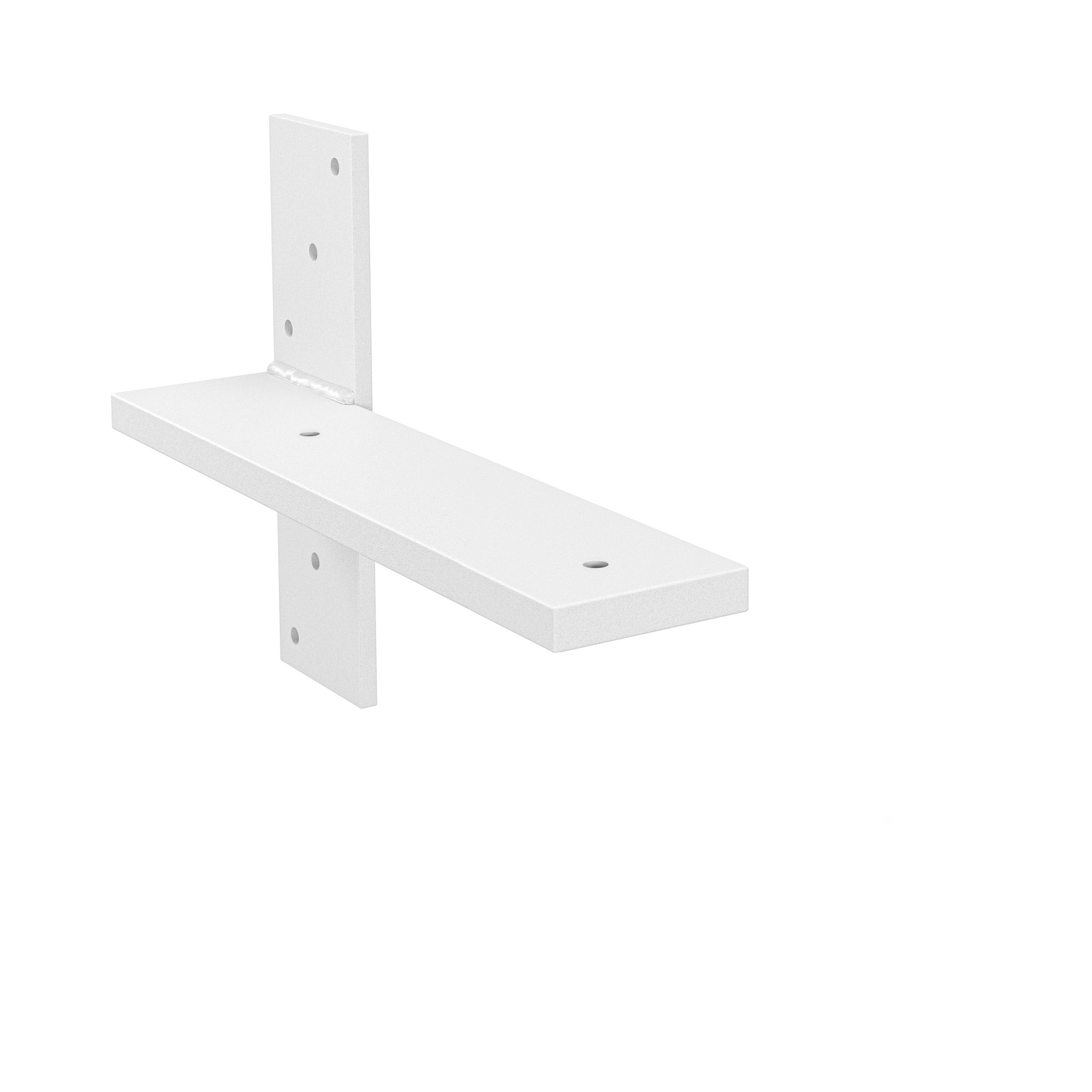

  • 11.5" (For benches up to 13" deep)

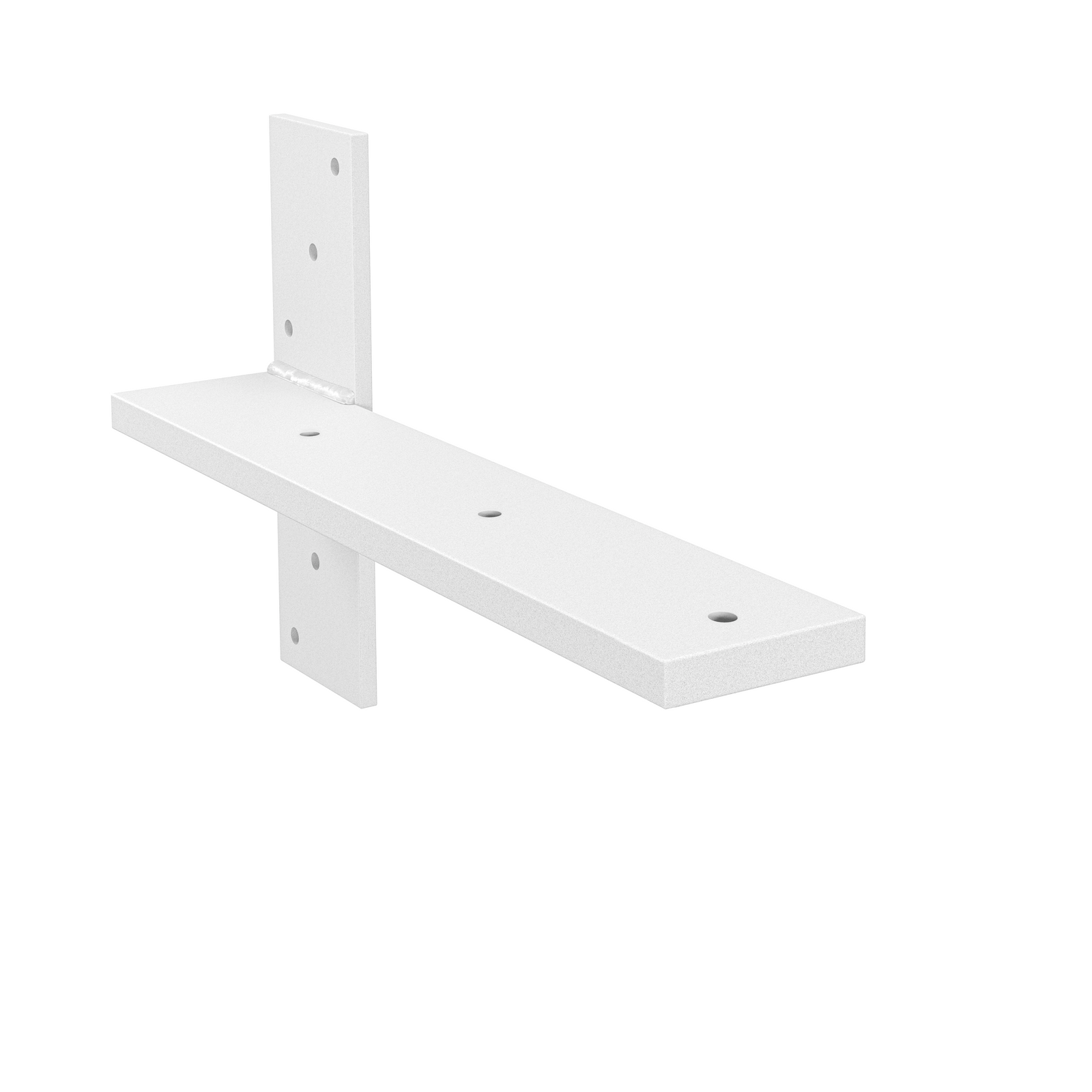

  • 13.5" (For benches up to 15" deep)

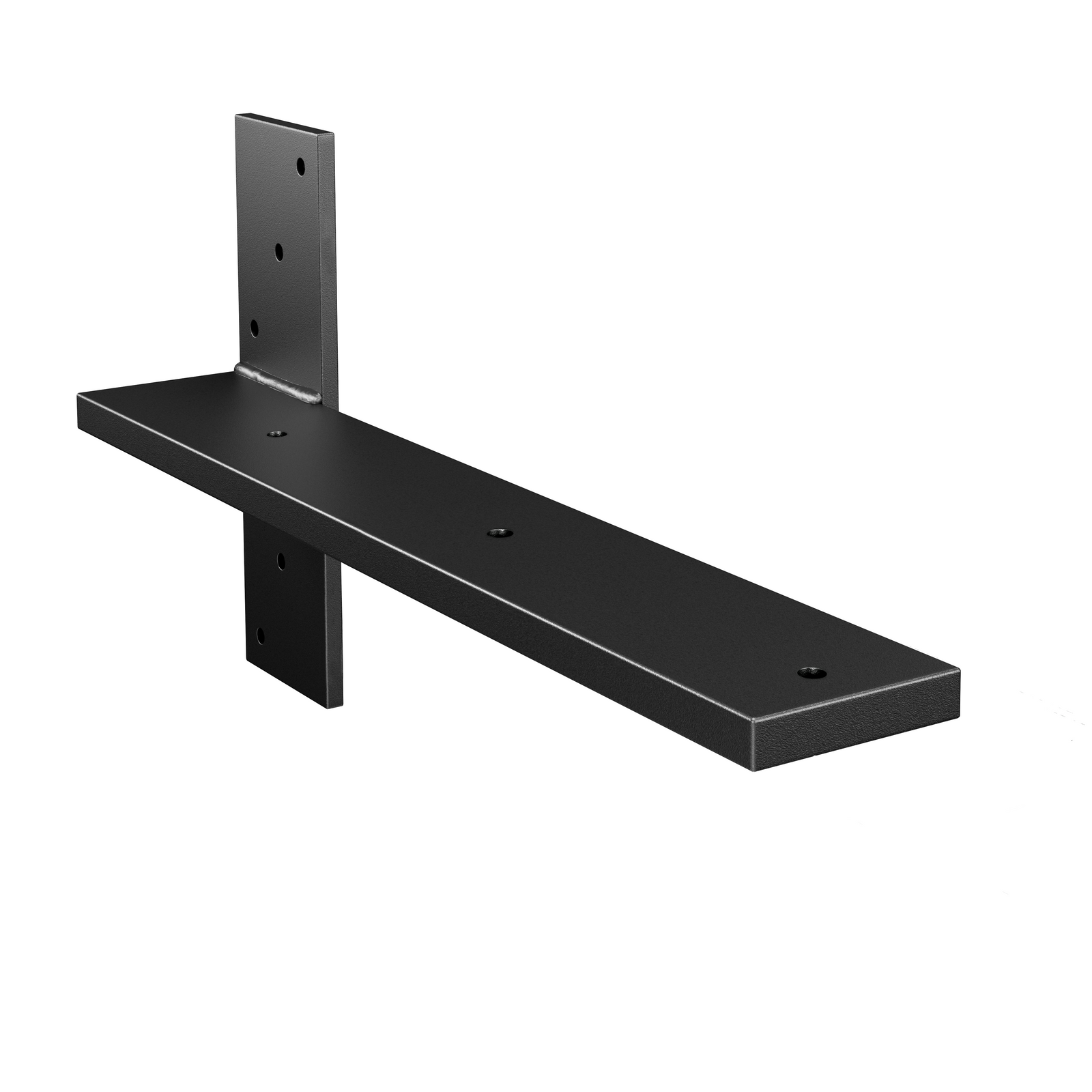

  • 15.5" (For benches up to 17" deep)

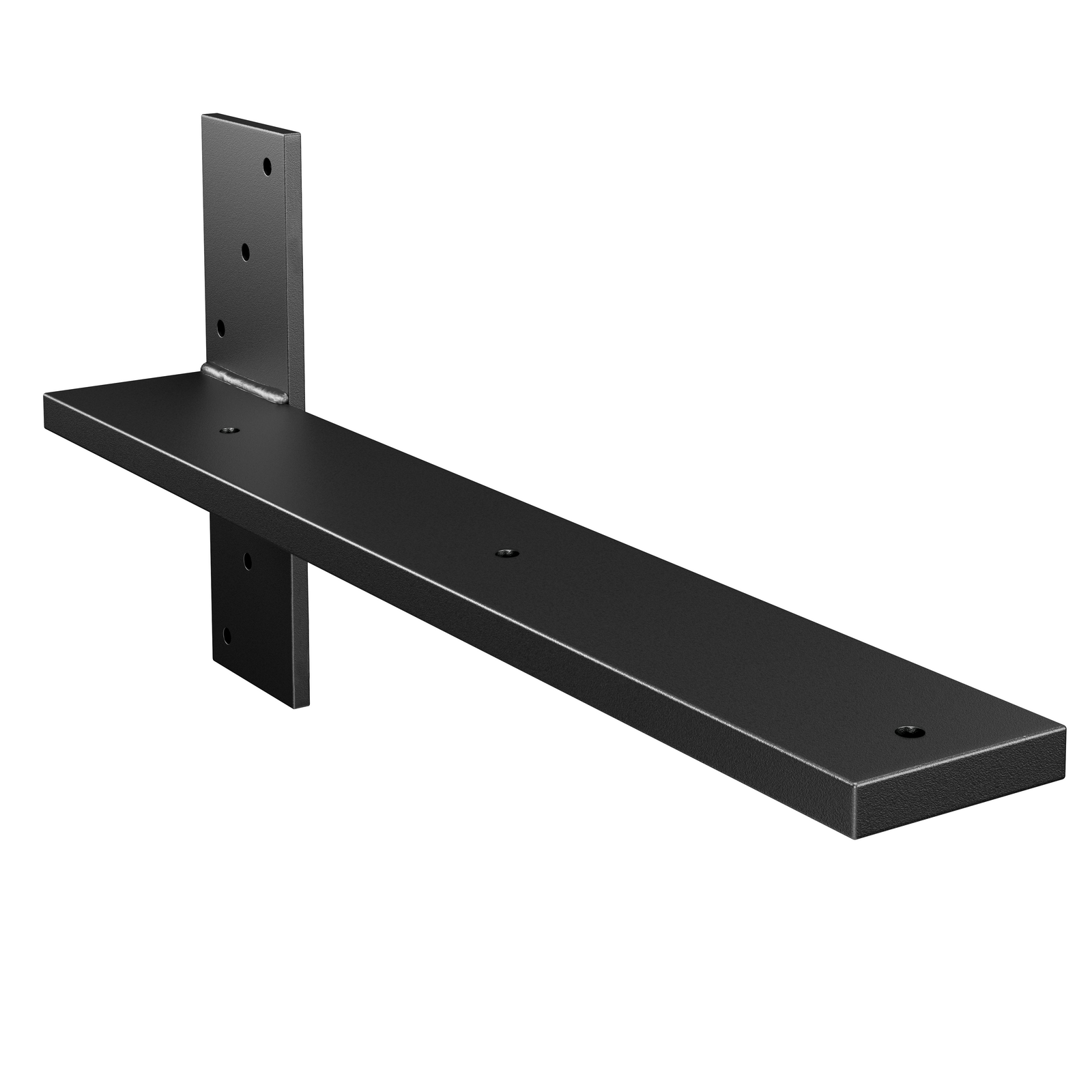

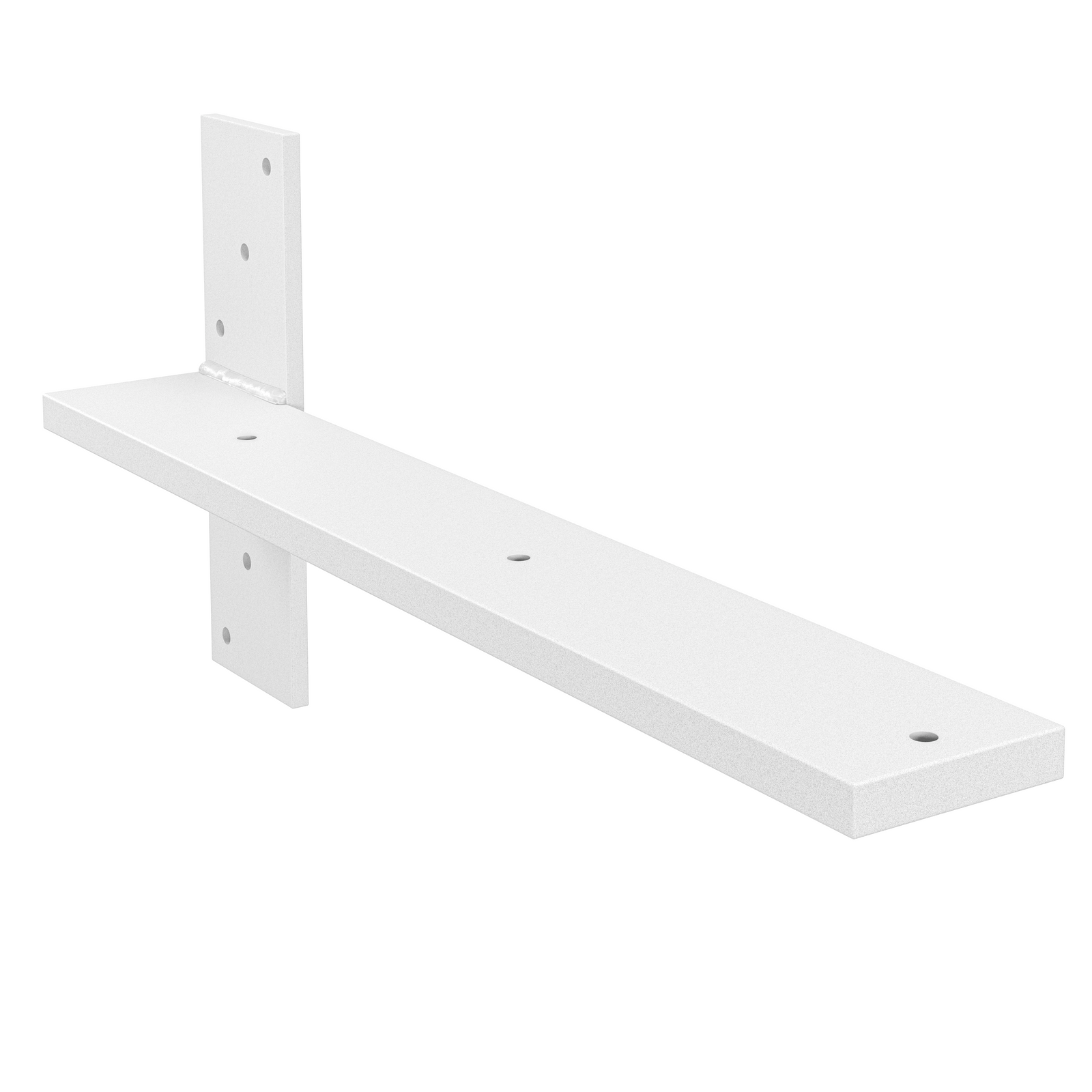

  • 17.5" (For benches up to 19" deep)

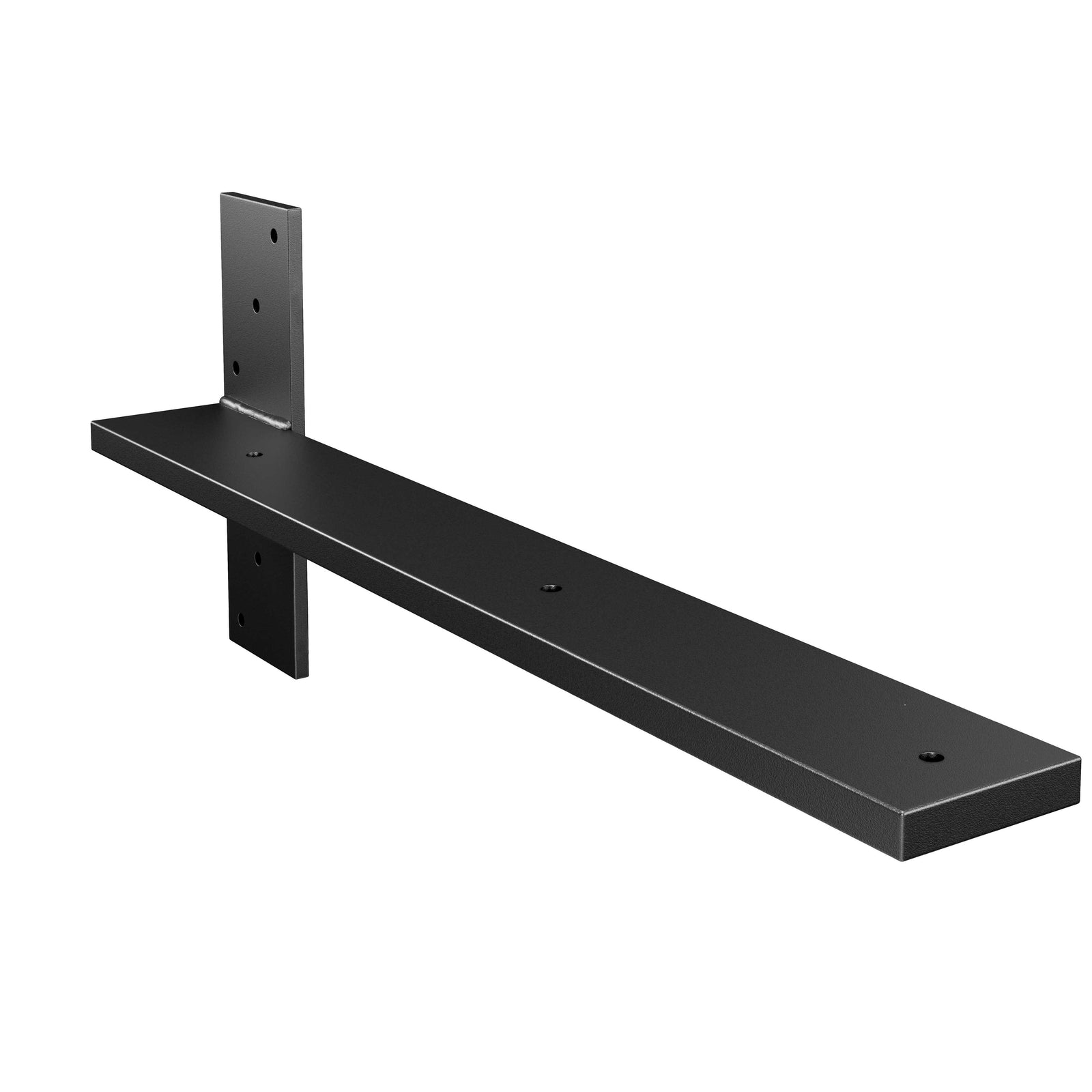

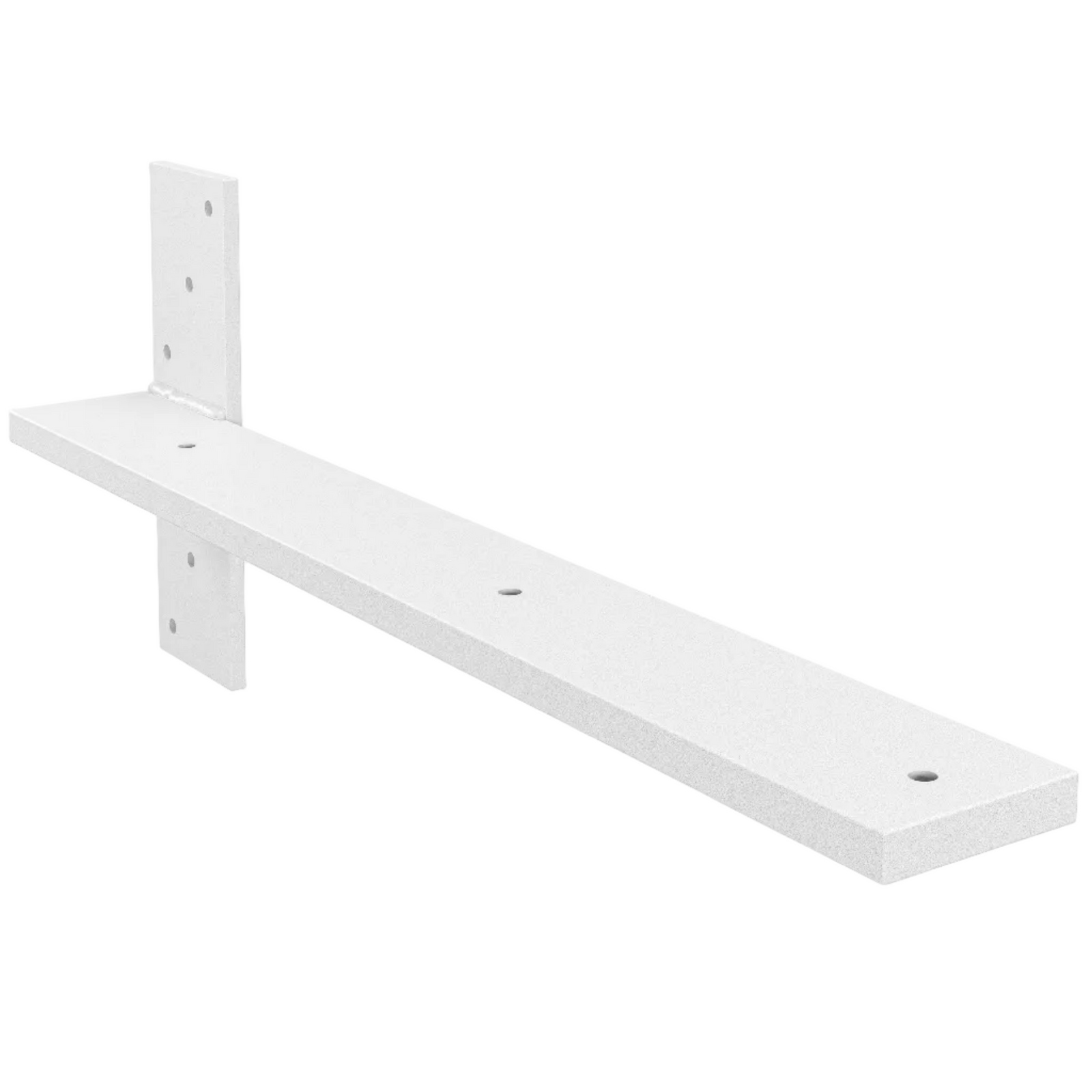

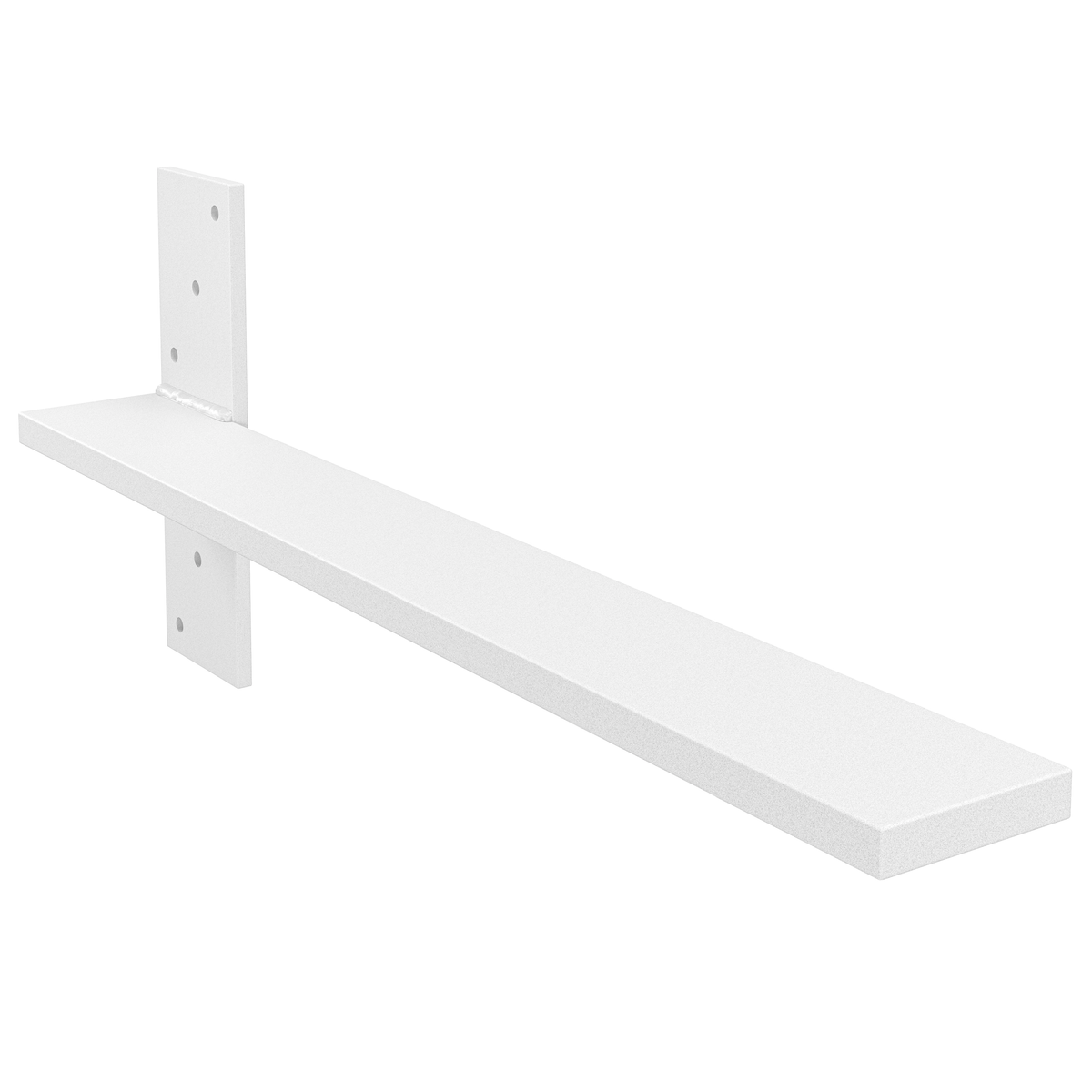

  • 19.5" (For benches up to 24" deep)
• Material: Steel
  • Horizontal Bench Support: 2 ½" wide x ½" thick steel
  • Stud Mounting Flange: 2 ½" wide x ¼" thick steel
• Finish: Industrial powder coating for durability
• Hardware: Includes 6 (1/4" x 2 ½" wood lag bolts) per bracket
• Load Capacity: 300 lbs per pair when properly installed to studs

Applications

• Minimalist mudroom benches
• Floating entryway seating
• Outdoor patio benches (covered areas)
• Commercial waiting areas
• Restaurant booth seating
• Home gym or workshop benches

Why Choose Our Hidden Stud-Mounted Bracket?

• Truly Concealed Design: Mounts to wall studs, unlike surface-mounted gusseted or non-gusseted brackets, for a fully hidden, floating effect.
• Unmatched Strength: Supports 300 lbs per pair—perfect for heavy-duty use.
• American-Made: Built from ½" solid steel with a premium powder-coated finish.
• Easy Installation: Reversible design and included hardware simplify stud mounting.
• Direct Value: Sold straight from the manufacturer for top quality at the best price.

Size & Quantity Guidelines

What size do I order?

How many do I order?

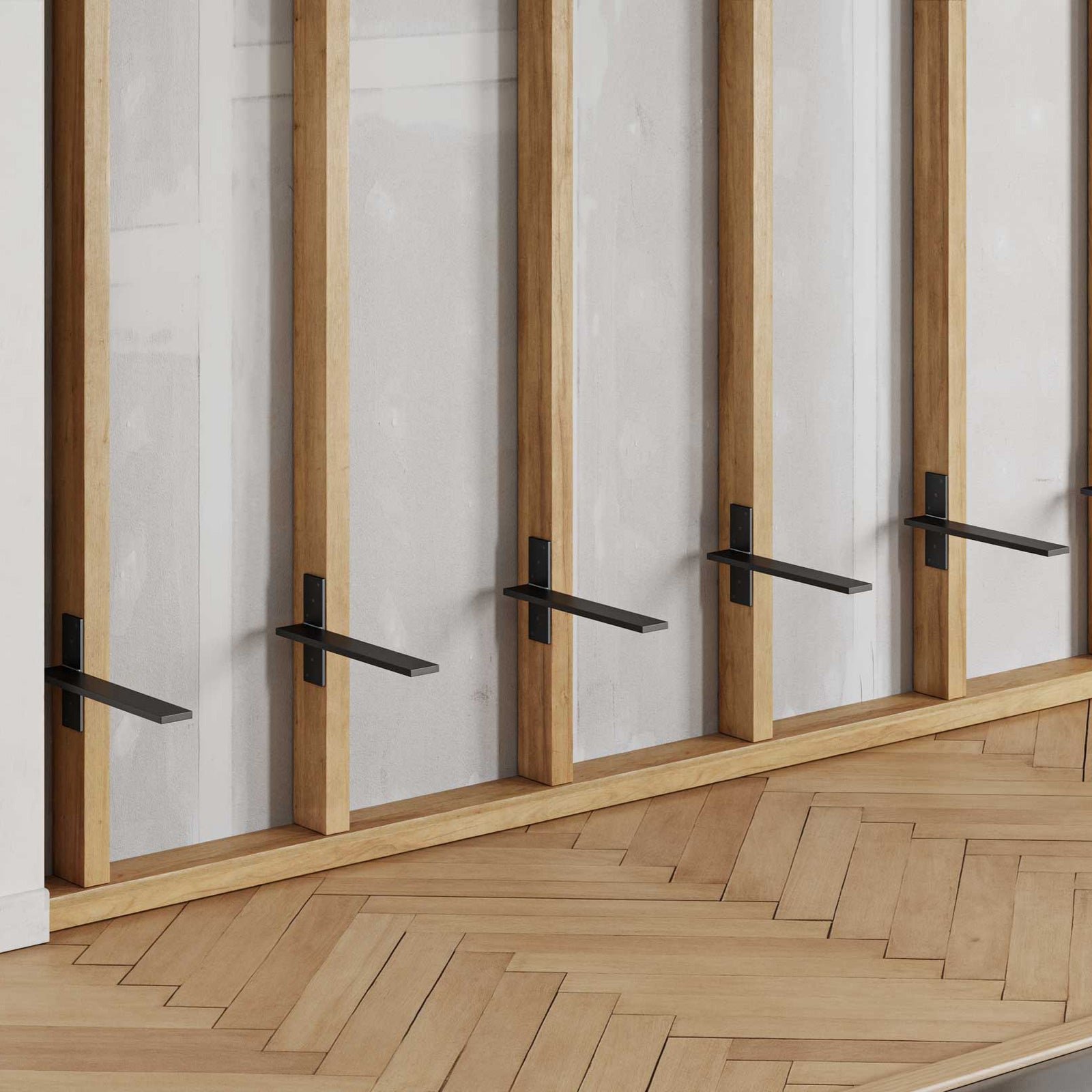

• Space brackets every 16" (one per stud) with wood blocking between studs for optimal support.
• Try to place a bracket within 4" of each bench end (each side).

16" OC Spacing (qty guide)

**Can span up to 32" OC if studs need to be skipped or are inaccessible**

Installation Basics

• Mark stud locations and level with a chalk line or laser.
  • Pro Tip: Attach a straight 2x4 along this line and use it as a solid stop to rest all of the brackets. This ensures each bracket is at the same height and speeds up installation.
• Secure to studs with included lag bolts.

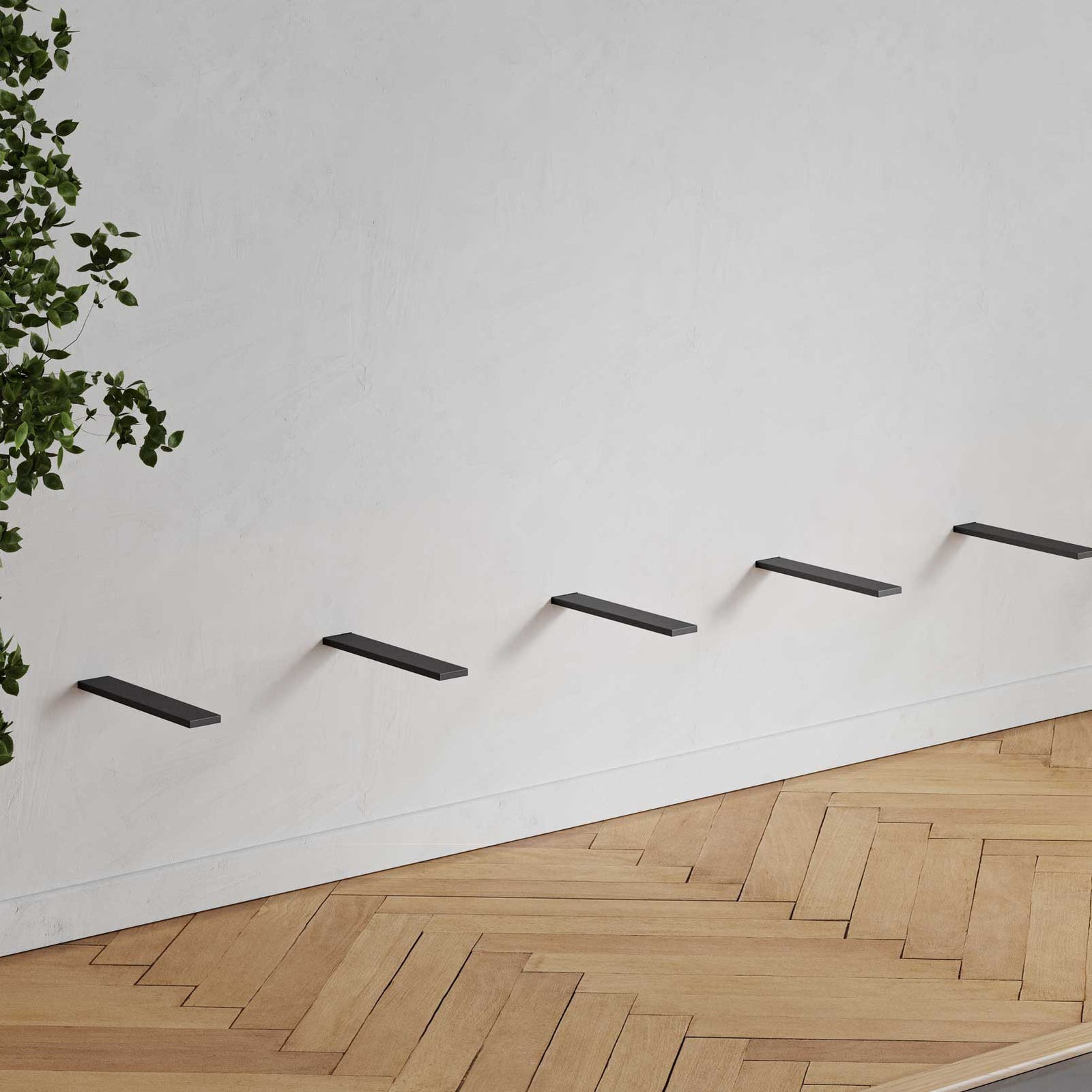

• Apply wall board, like drywall, and finish off.
• Attach bench with glue, or screws (drill pilot holes to avoid splitting).
• Compatible with 2x4 and 2x6 wood framing studs. Steel studs require wood insert (see installation guide).
  • Steel Studs: Need to have a wood stud slipped inside for support. Refer to installation guide for details on this.
• Detailed installation PDF included – Download Link
