HD Hidden Floating Vanity Bracket

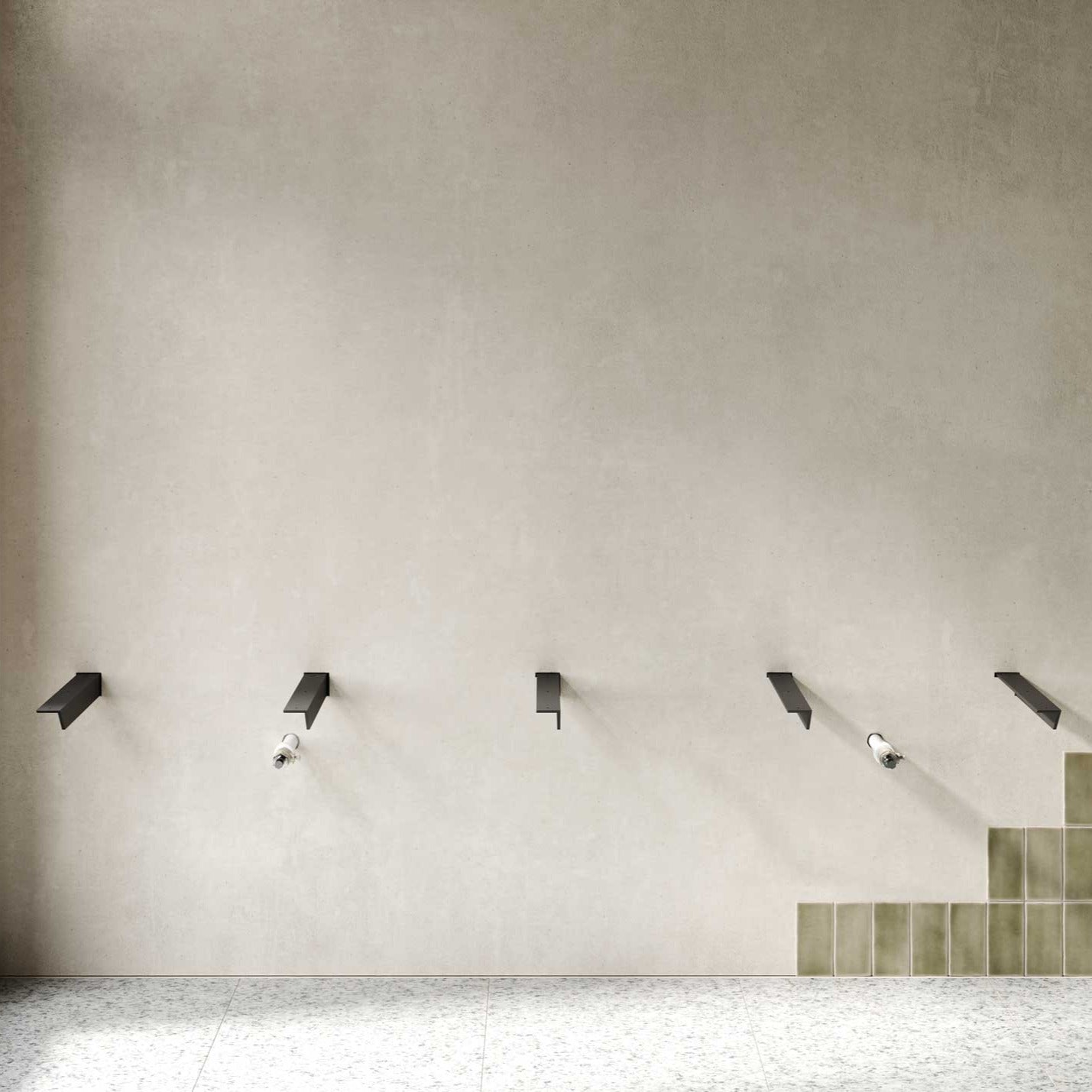

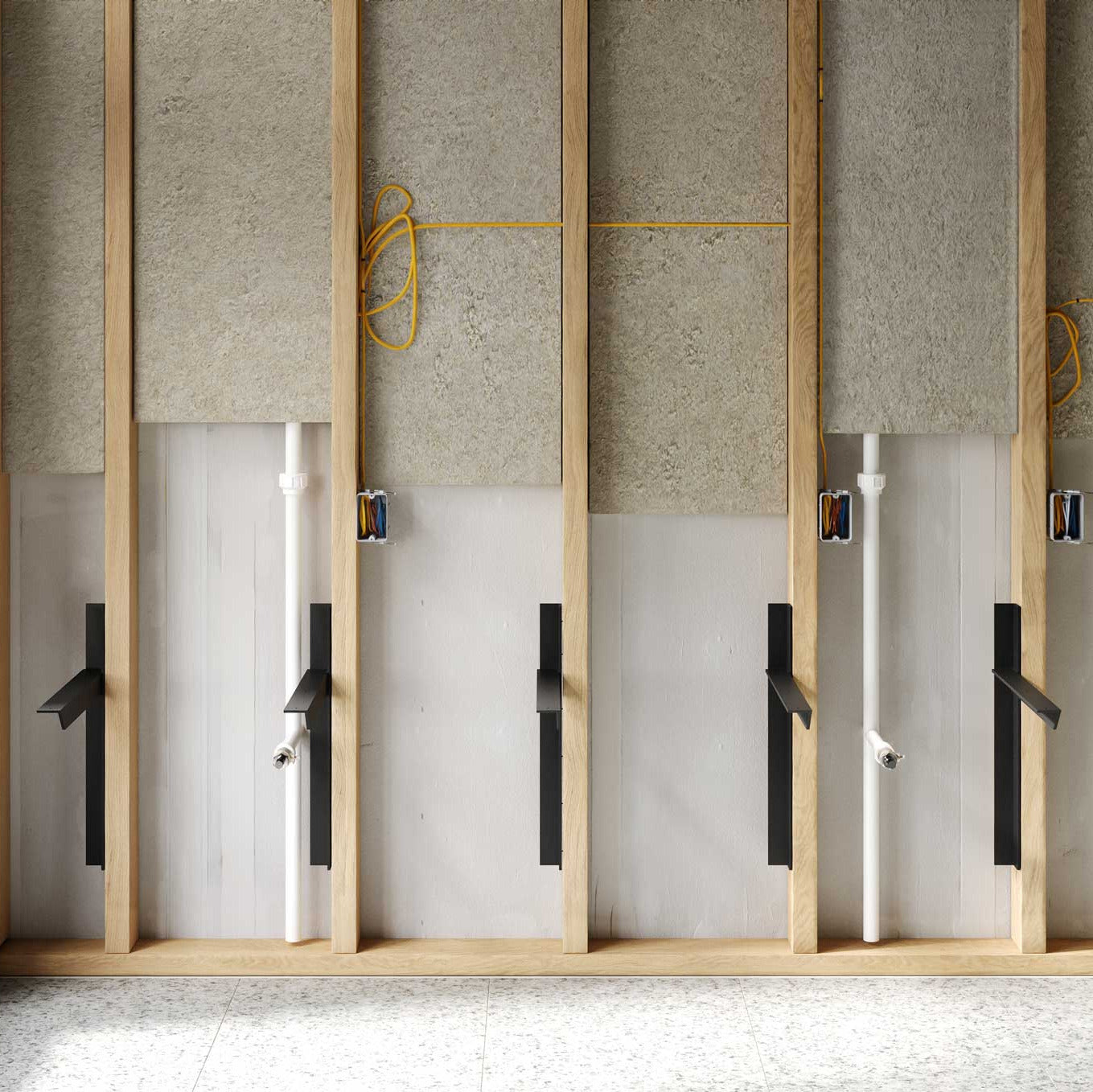

Our Heavy Duty Floating Vanity Bracket is designed to offer reliable hidden support for floating vanities in residential and commercial applications.  These brackets are mounted inside your wall to the wall studs during construction.  If steel studs are being used you must brace them properly with a wood stud. See our installation guide for details.

Specifications -

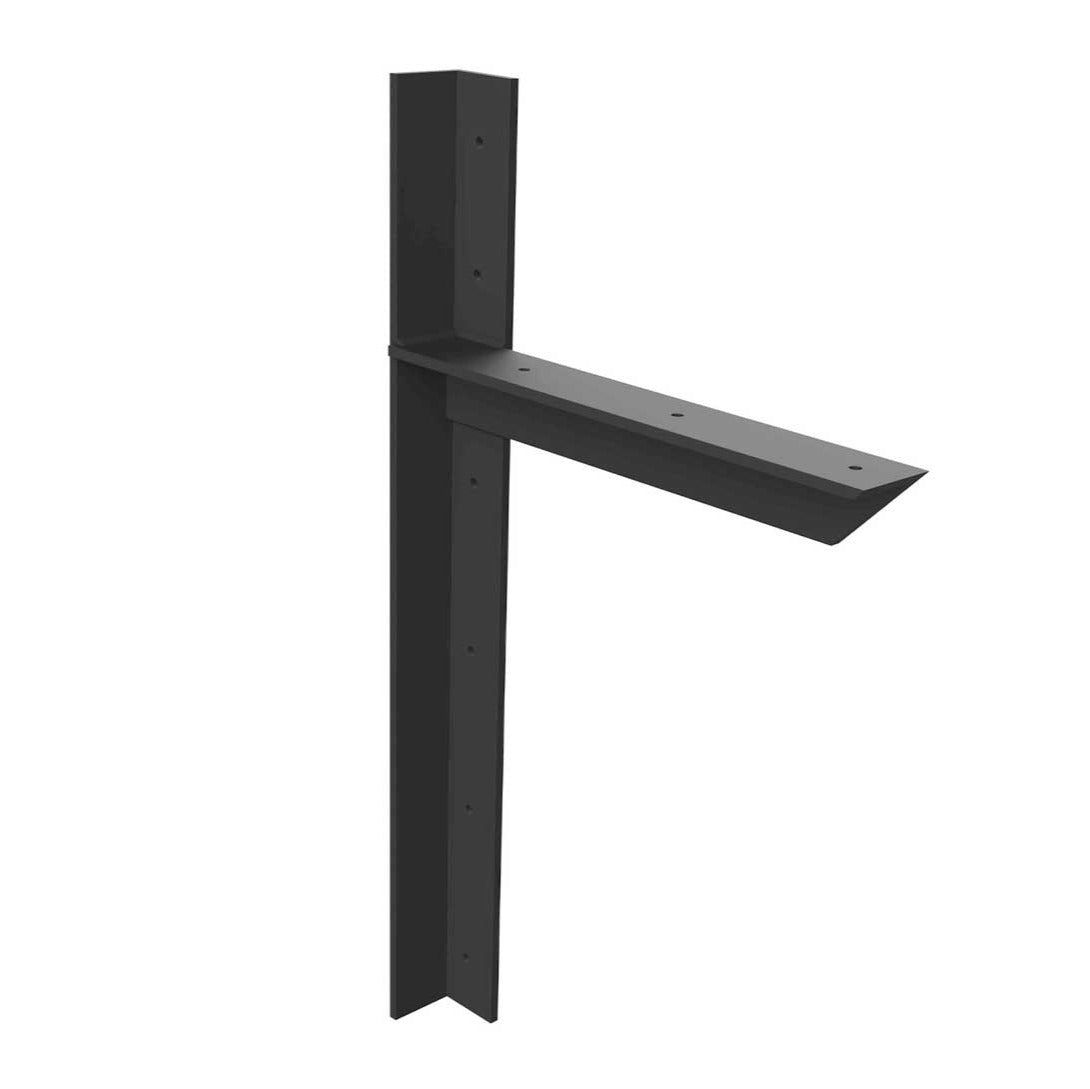

• Dimensions:

  • Width 2” Wide

  • Sizes (depth x height): 12" x 24"; 18 x 24"; 24 x 24"

• Mounting Holes:
• Vertical (stud mount): 6 holes sized for 1/4" x 2 ½” Lag Screws (Included)

• Top: 3 through holes sized for #14 wood screws for securing vanity if necessary (this hardware is not included)
• Material: 2 x 2 x 1/4" Thick Angle Iron

• Finish: Industrial powder coated finish

Additional Information -

• Made in the USA
• Carrying Capacity: 500 lbs individually; 1,500 lbs per pair. *When Properly mounted to a wall stud..
• Low profile makes this support nearly invisible for a clean look
• Made to screw into 2x4 or 2x6 reinforced wood framing.

• Metal Studs? You can mount these to metal studs, however, you must piggy back a wood stud to make this work. See installation details on how to do this.

Uses -

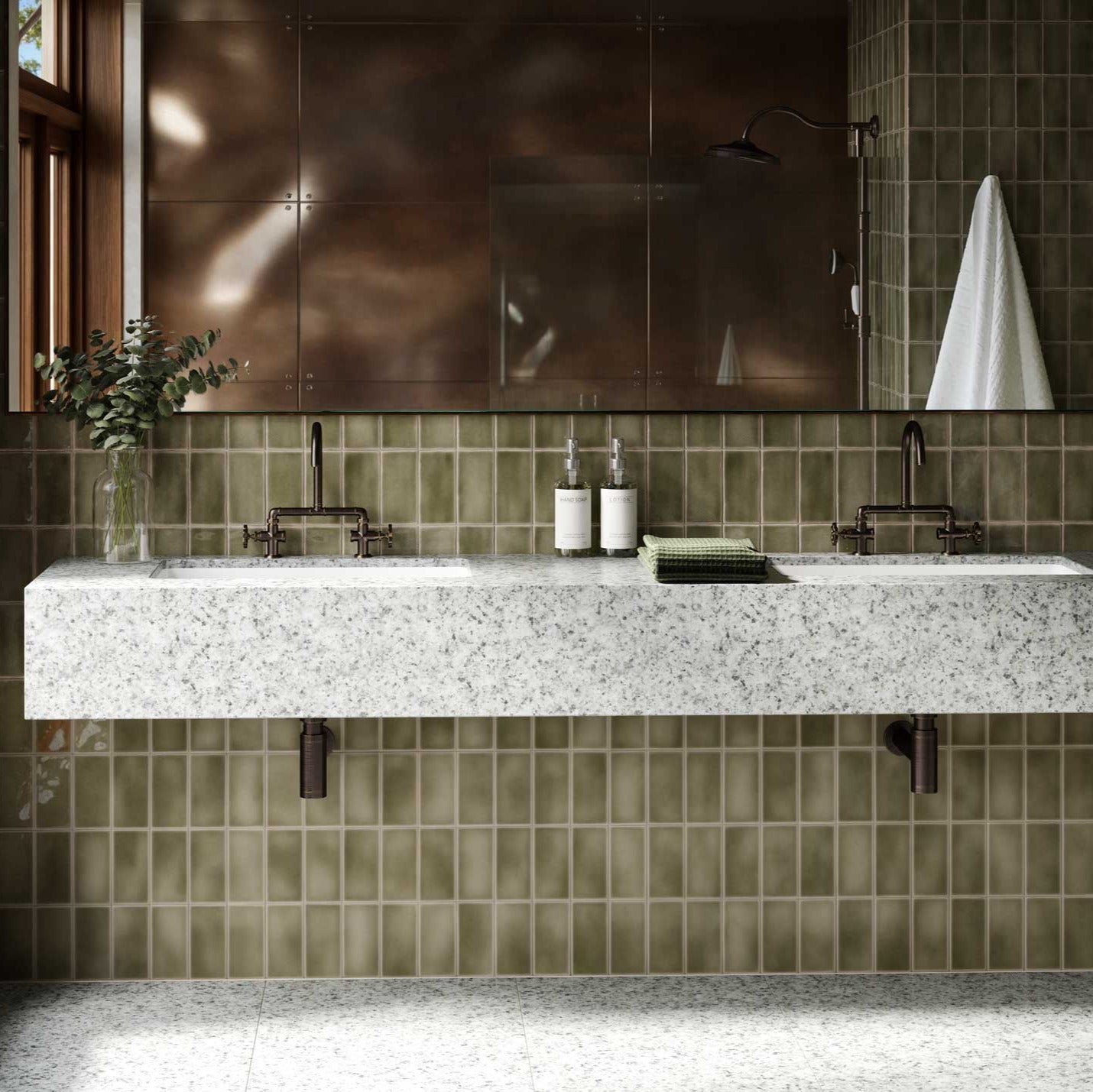

• Support Wall Mounted Floating Vanities
• Support Wall Mounted Floating Desks

• Support Wall Mounted Floating Bars

• Support Wall Mounted Floating Countertops


Determine What Size & Quantity to Order?

What Size Bracket Should I Use?

• NOTE: Ideally you want no more than 2" of unsupported surface extending past the end of your bracket. Never go more than 4" past the end of the bracket.

  • Example: If your Vanity is 21” Deep (21” – 2” = 19”) You’d want to go with an  18” deep bracket.
• Our brackets are listed as follows, depth x height measurements
  • Example: 18” x 24” Bracket
    • 18” would be supporting your material (horizontally or depth)

    • 24” would be mounted to the wall (vertically or height)

Quick Bracket Size Guide:

How Many Brackets Do I Order?

• These vanity support brackets are typically spaced 24" - 32" inches apart. Or 1 bracket per wall stud @ 24" OC framing, and 1 bracket every other wall stud @ 16" OC framing.

• Your average vanity measuring 48" wide will require at least 2 brackets.

• Larger vanities 60" Wide should have 3 Brackets or more to provide adequate support.
