The opposing arcs which make up the decorative center support on our Eclipse Iron Corbel intersects in the middle before finishing with a soft transitional split. This arching design gives you extra room under the counter. Our Eclipse Corbels is used to support granite and stone counter tops, fireplace mantels, kitchen island overhangs, bar tops and much more.

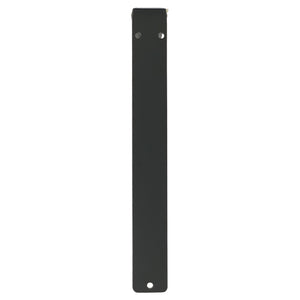

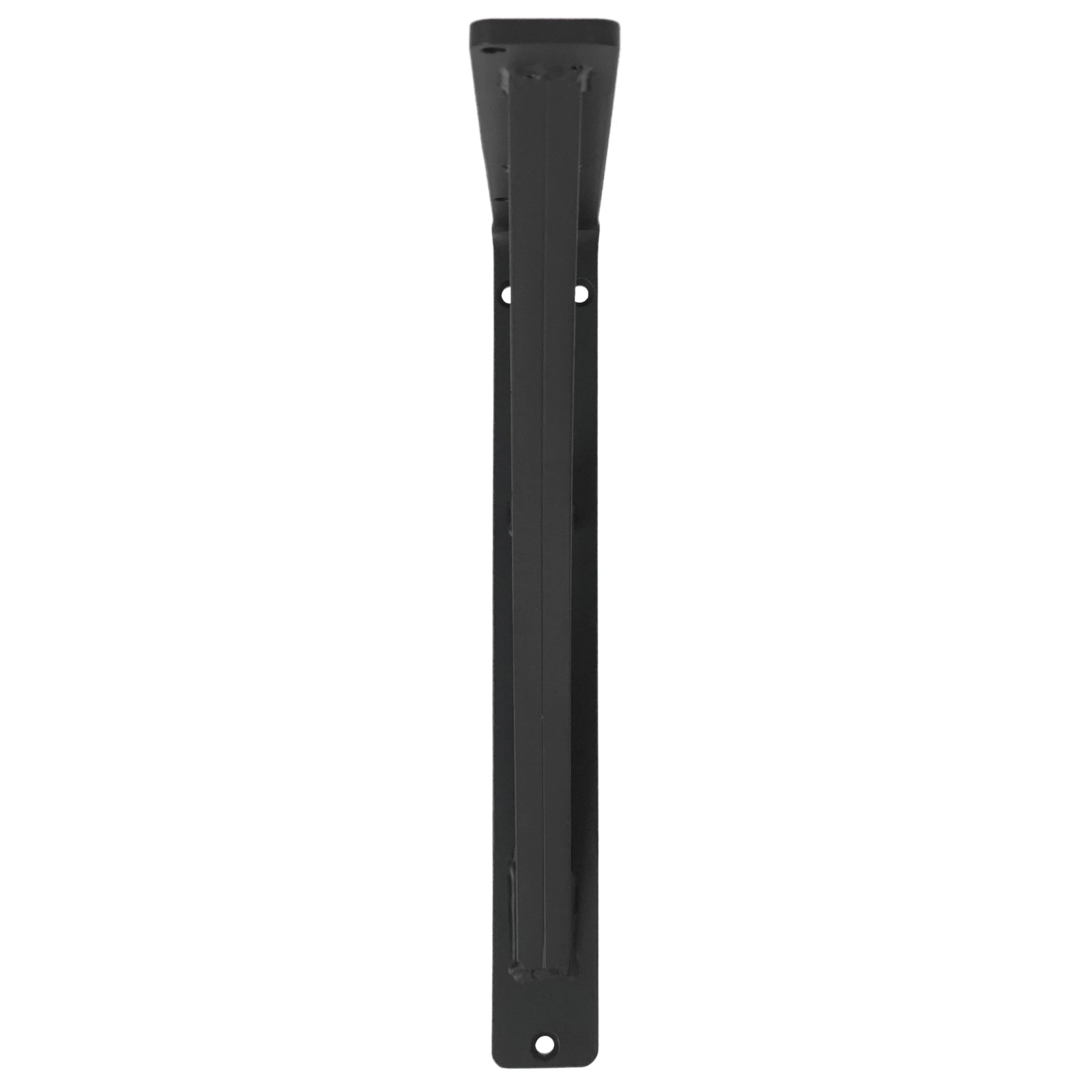

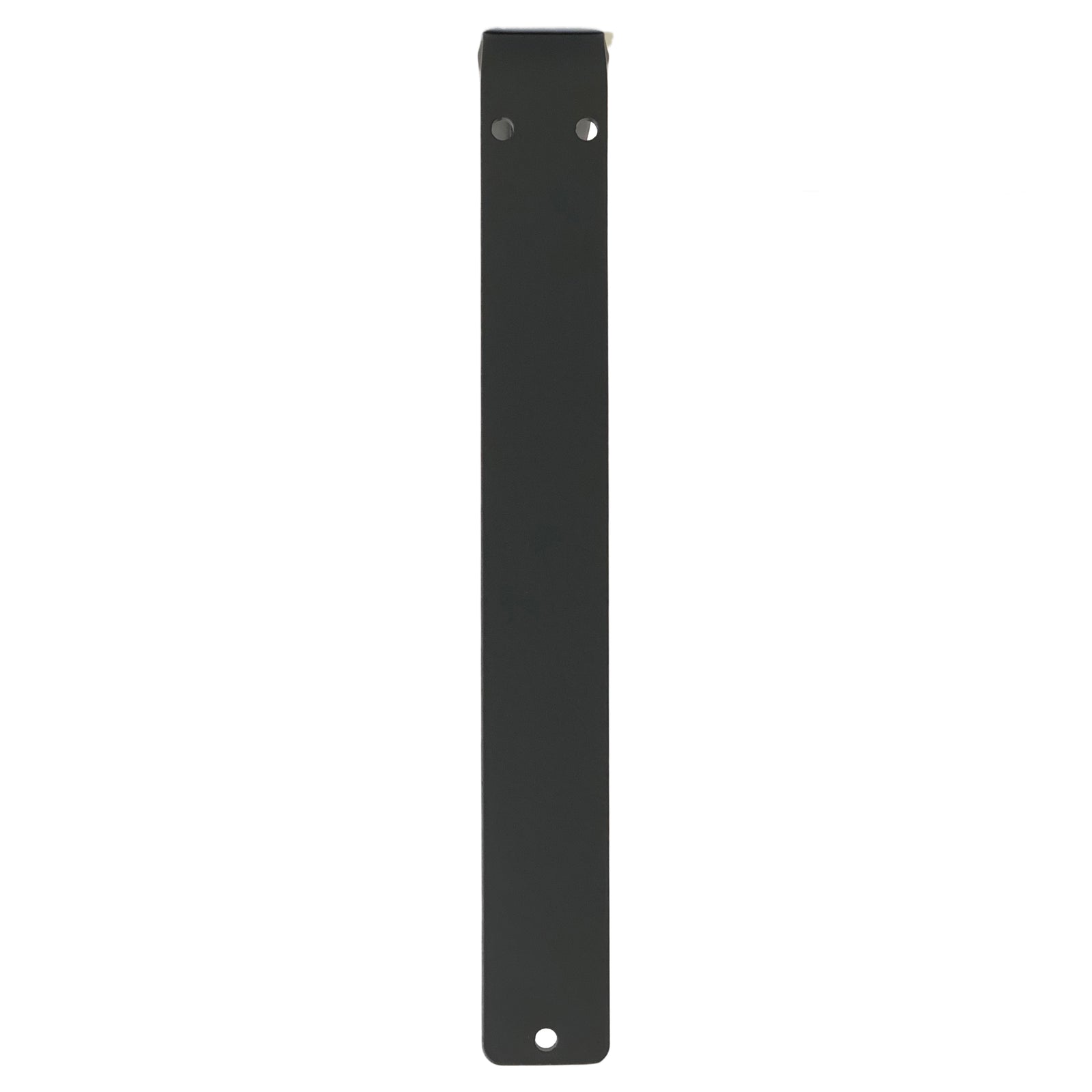

There are two 3/8" thick center designs welded together giving this bracket its strength and dimension. The L-Bracket is made from thick 1/4-inch steel with holes for mounting the bracket to any surface. 2 holes are included in the top part of this bracket, their use is optional if the application needs them (shelving, mantels, wood overhangs, etc...)
Dimensions: L-bracket is 1.5-inches wide and 1/4-inch thick with a 3/4" Thick center support.
Bracket Sizes:5 x 7 | 6 x 8 | 7 x 9 | 8 x 10 | 9 x 11 | 10 x 12
Iron Finish Options: 4 Finishes Available

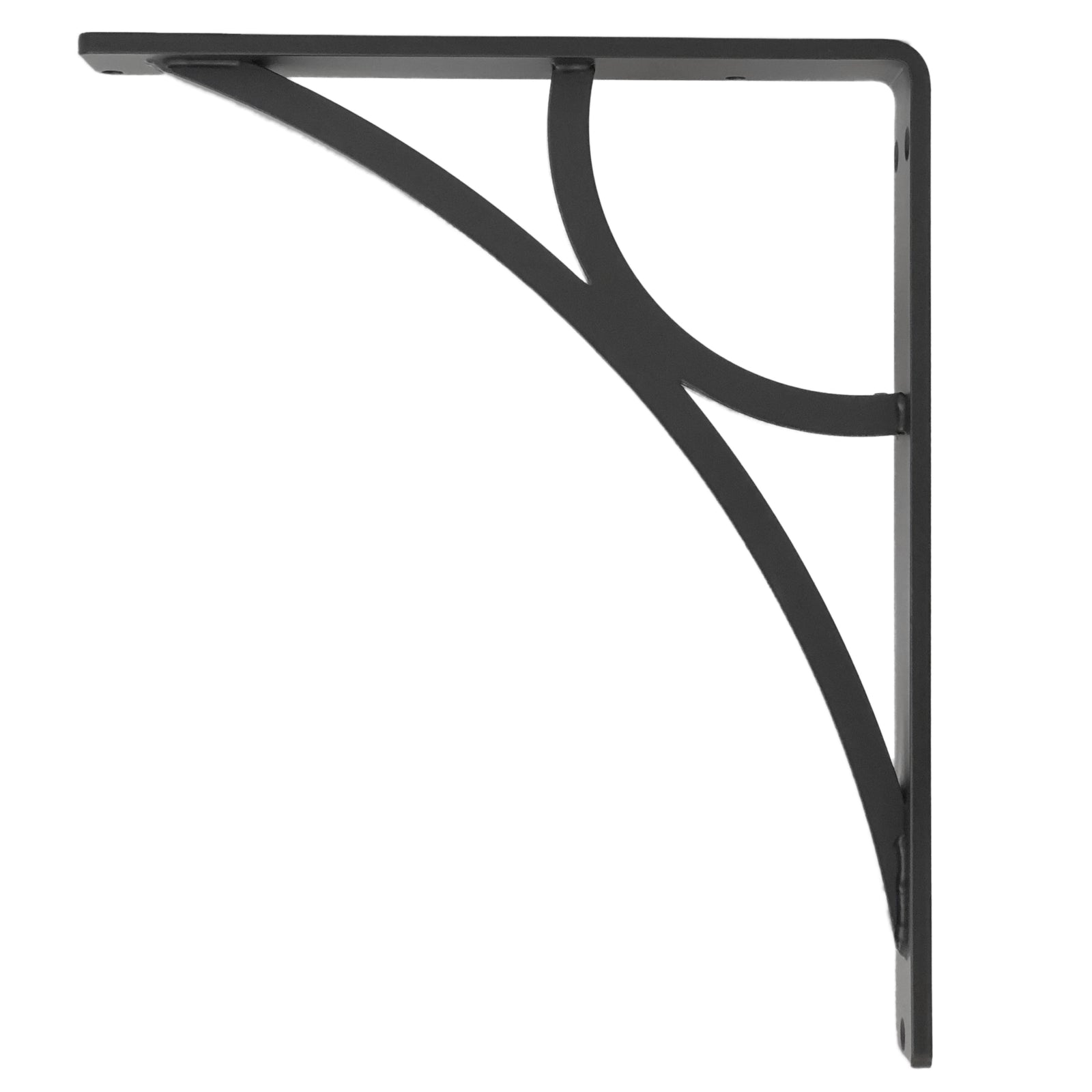

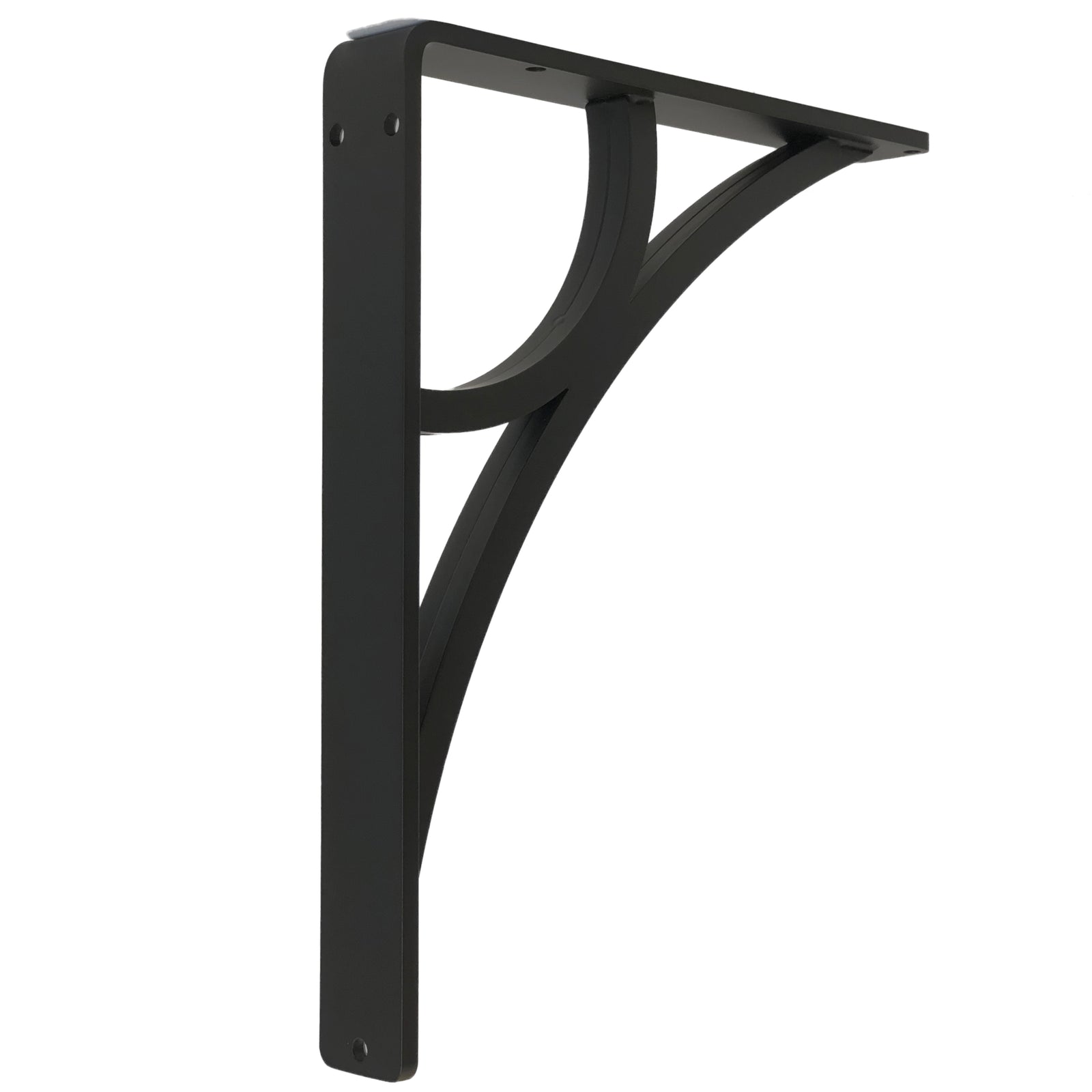

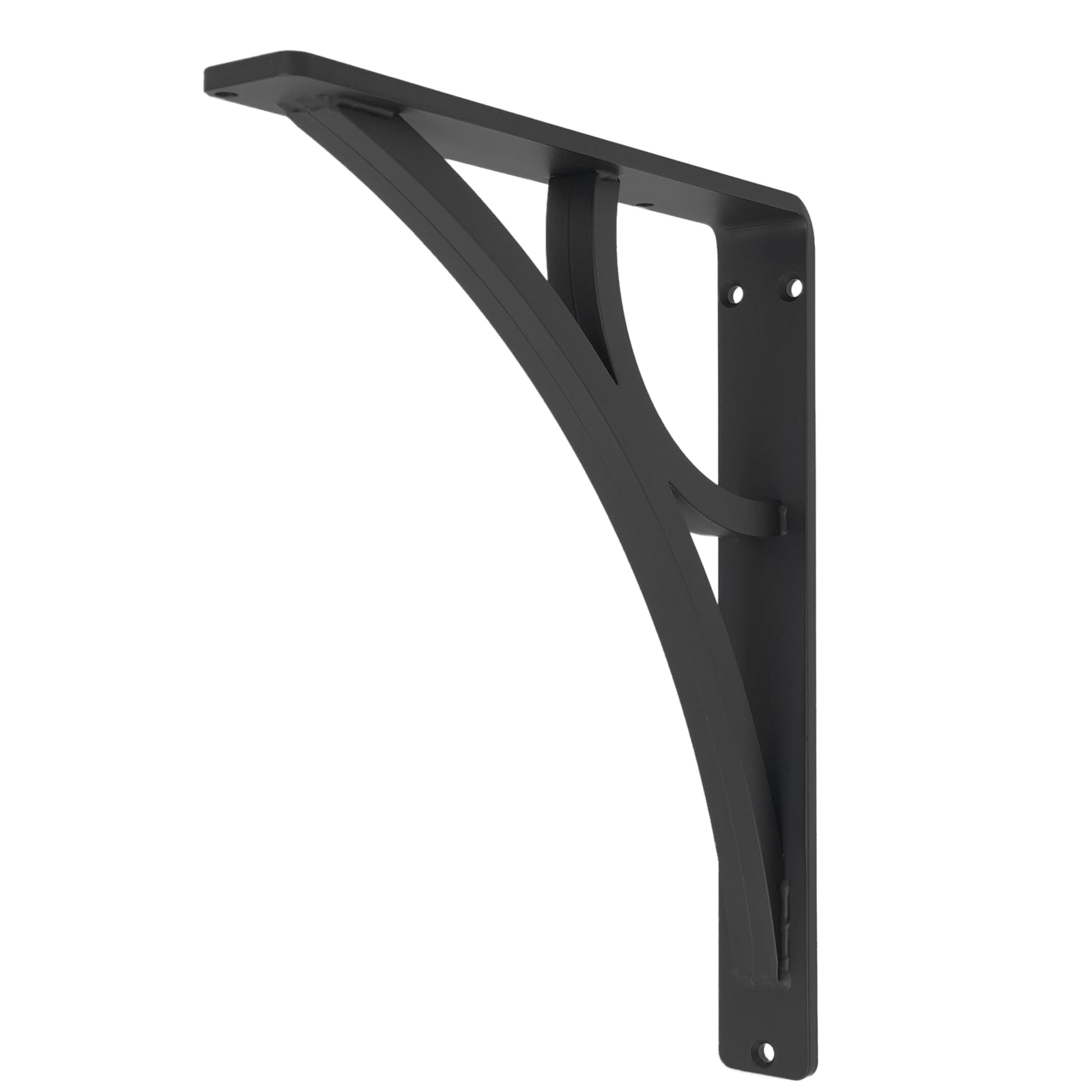

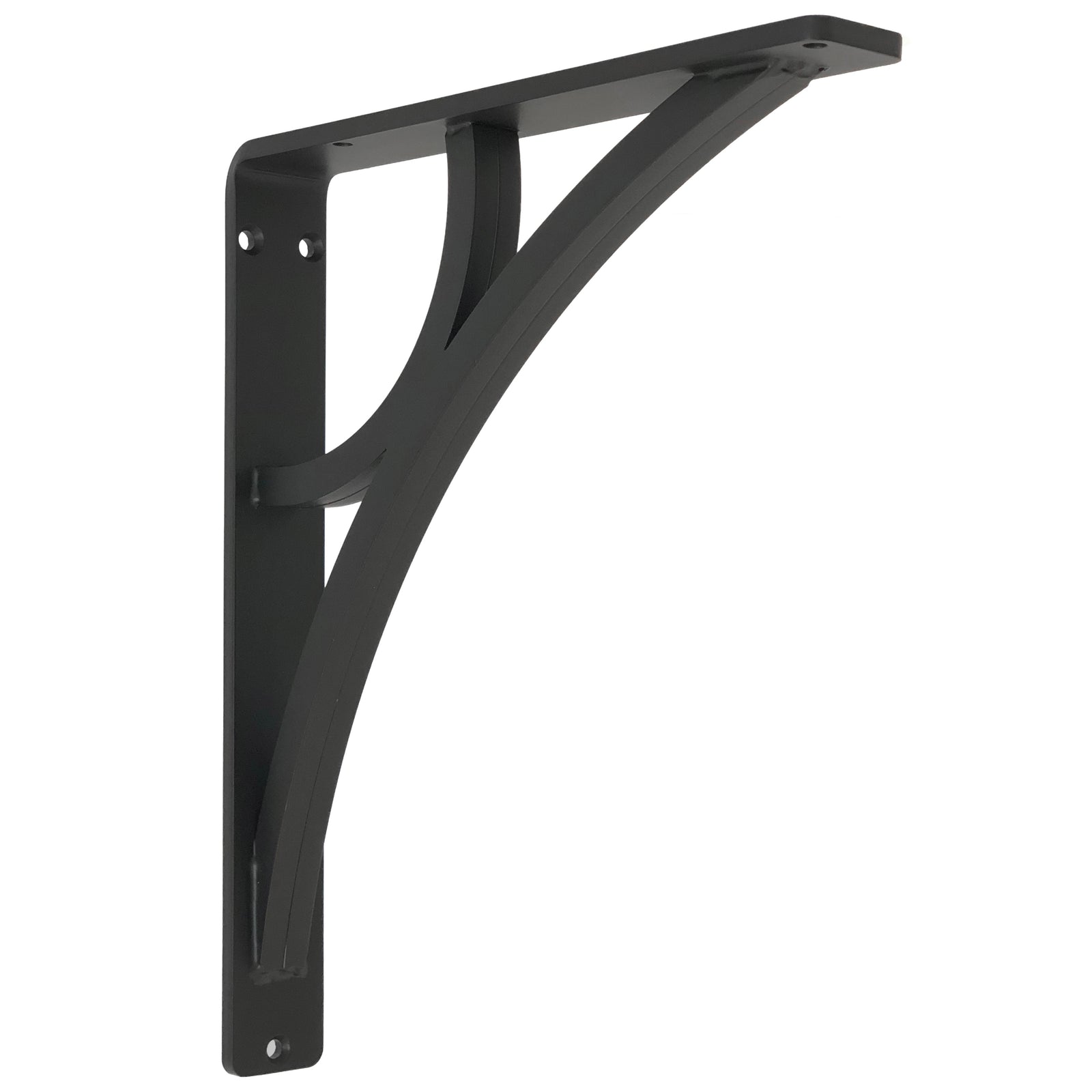

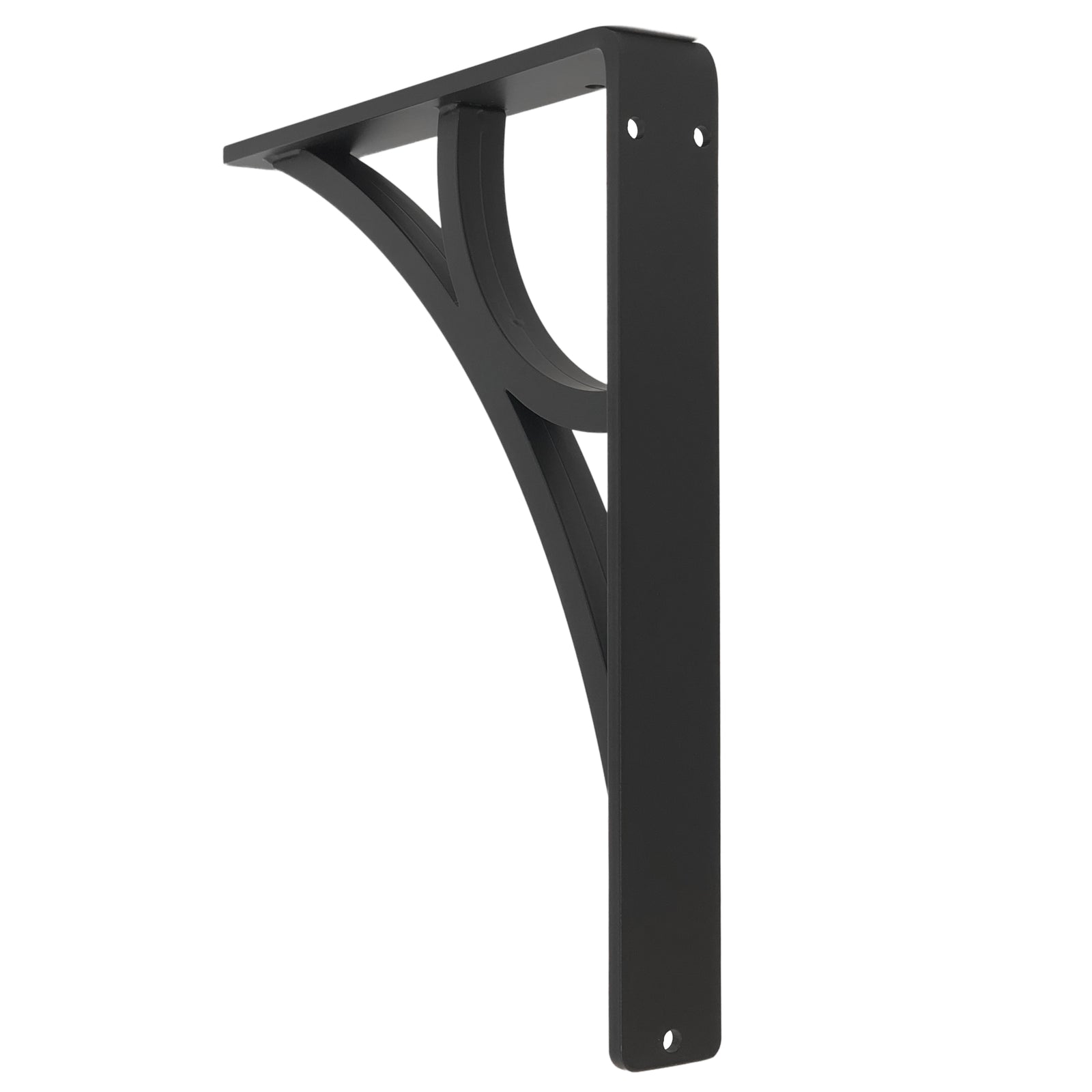

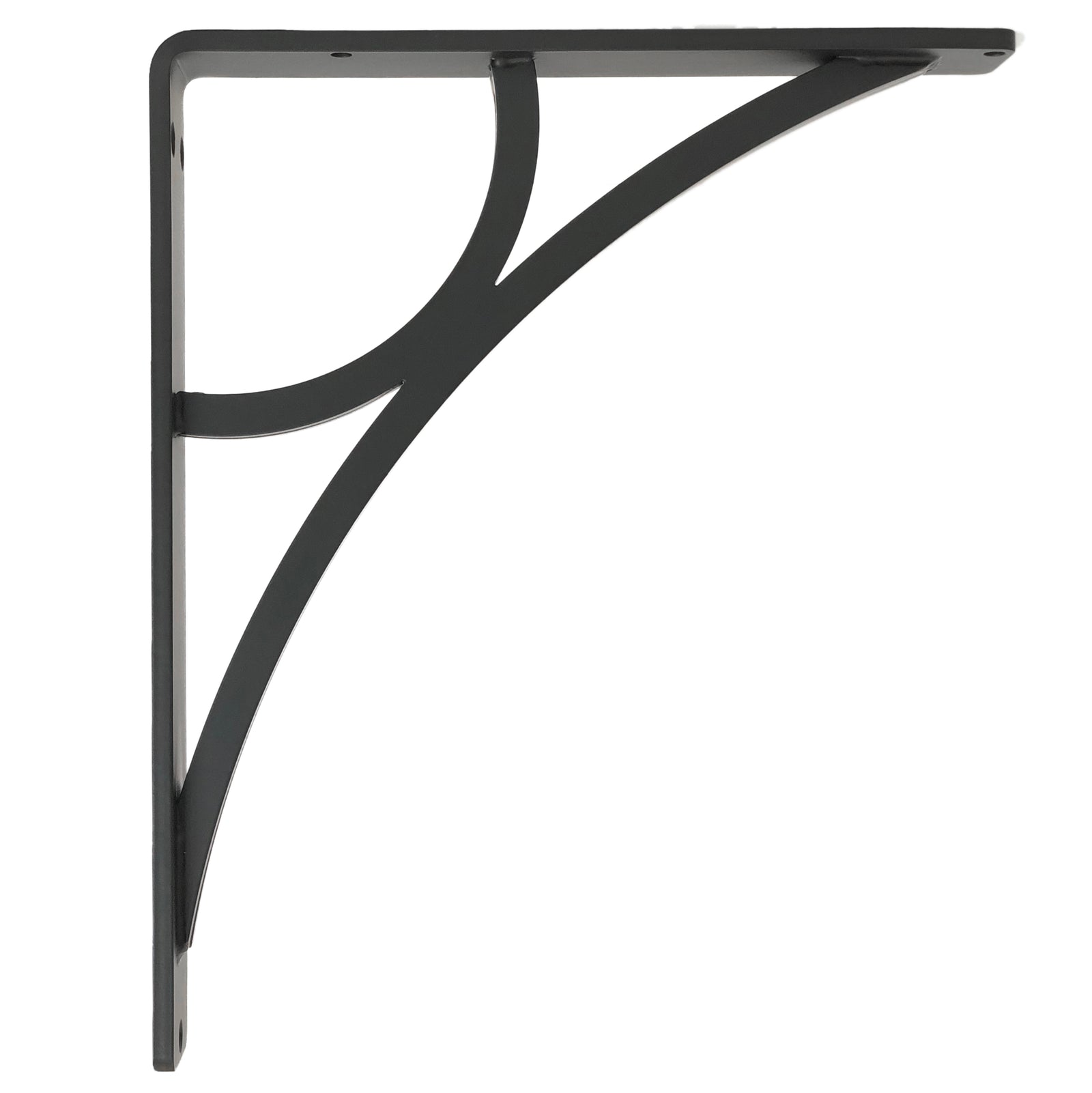

Pictured: Eclipse Iron Corbel with Black Finish
Capacity:Will support 150lbs each when mounted properly
Product Type:Corbel or Bracket
Function: Support Granite/Natural stone counter top overhangs, shelves, mantels & more.
Country of Manufacture: USA
Indoor | Outdoor Use: Brackets are powder-coated, (unless you select unfinished) they will last a substantial amount of time outdoors, but like all steel products, sooner or later they will show signs of rust in areas that hold water. Consider steel patio furniture, they're in the sun, rain, snow etc... for years before showing any signs of rust. Keep in mind, if you install our products underneath a counter or roof overhang outdoors, our products should last for many years without concern.
Care: Wipe clean with dry cloth
Assembly Required: Installation is required but the product is one solid piece
Included: Brackets sold individually (mounting hardware is not included)
Copyright:This design is protected (note: it has been knocked off by a Chinese company and sold unethically by another company. When you buy from us you get the original design and American Craftsmanship.)
Determine What Size & Quantity to Order?
This information is provided by The Marble Institute of Americas published requirements for granite countertops.
What size corbel do I order?
Your Countertop overhang should not extend past the corbel by more than 4 to 6 inches.
Example: If your countertop overhang is 10-inches you will want a bracket that measures at least 5 to 6 inches deep.
All our corbel measurements are listed as depth x height | Example: a 6" x 8" corbel is 6 inches deep and 8 inches high.
Notes From a Designer: Corbels are meant to be seen. So they generally look best when they are 2/3 as deep as the countertop overhang itself. As an example, when we design countertop overhangs we will keep the end of the corbel 2-4" from the end of the countertop overhang. This does exceed the Marble Institutes requirements but it looks much better from a design perspective.
How many corbels do I order?
Corbels are generally spaced 24 to 36 inches apart under countertop overhangs.
To figure out how many corbels you need lets start with 2 corbels at each end of the countertop set 4" to 6" inches in, from the edge.
Now measure the span left between the 2 end corbels and use the following formula: (span left) divided by (desired spacing).
Example; an 84" wide countertop with 2 brackets set 4 inches from the end would leave you with 76 inches left to support; (84" - 8" = 76"). Now take 76" divided/by 24" = 3.1, so you would need 3 more corbels for a total of 5 brackets.
For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 24 inch span between corbels, you would order 5 brackets total. 2 ends brackets and 3 to support the remaining 76" span.
For a countertop overhang spanning 84" wide with 2 corbels set in 4" from either side, and a 36 inch span between corbels, you would order 4 brackets total. 2 ends brackets and 2 to support the remaining 76" span.
Free shipping is available on orders shipping within the contiguous United States. Orders not shipping to the contiguous U.S. have shipping rates calculated at checkout. We use standard ground delivery methods from UPS, USPS & FedEx for free shipping.
How long does it take to receive my order?
Orders typically take about 5-9 business days to ship but please see the item "Availability" just below the product title to get the most accurate time frame as this may vary per product. As soon as your order is placed we build and finish the brackets to your specifications. Raw (unfinished) brackets ship in 2-3 business days. We do carry some stock of our top sellers and those will ship in 1-2 business days.
Orders can take up to 2-4 Business days to arrive once shipped. If you need your order sooner, please reach out to customer service and we will do our best to meet your deadline. If you have delivery time questions or requests please call us @ 888.971.3771.
Note: Large orders of 50+ brackets typically ship on a pallet these shipping times vary from 1-7 business days. If your ordering in bulk we will contact you to arrange shipments.
Map of Standard Ground Shipping Times
How can I track my order?
You will receive an email with tracking link upon creation of the shipping label, which means your order is packed and ready for carrier pickup.
We Keep Returns Just as Simple
Simply return your bracket(s) / parts(s) (*un-used) within 30/days of delivery and receive a refund.
Contractors, Builders, Desingers & Architects - We know that qulity, price and delivery options are extremeley important to you.
If you need to order custom brackets or large quantities of 50+ pices please call us 888-971-3771. We quote qtys of 50 or more over the phone and provide emailed quotes for you to share with your team.
You will work with a dedicated rep to help you get the brackets you need for your project.
