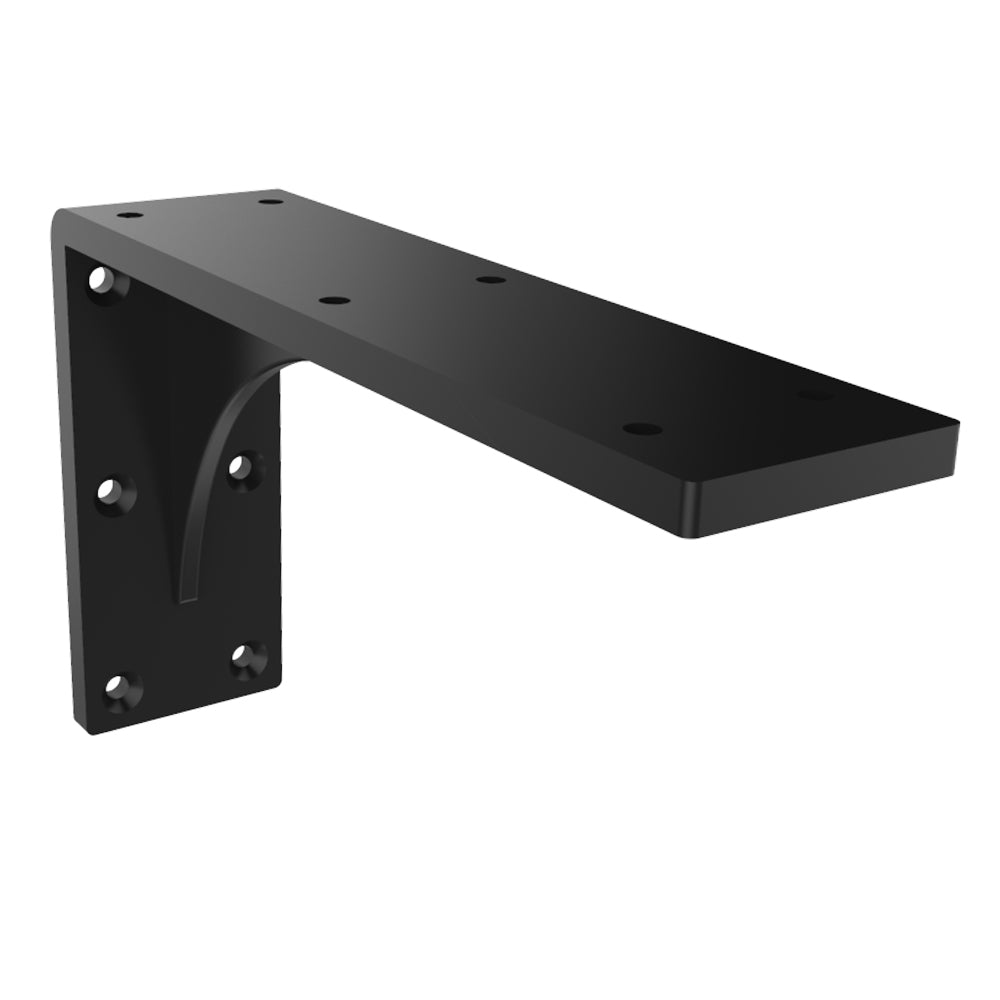

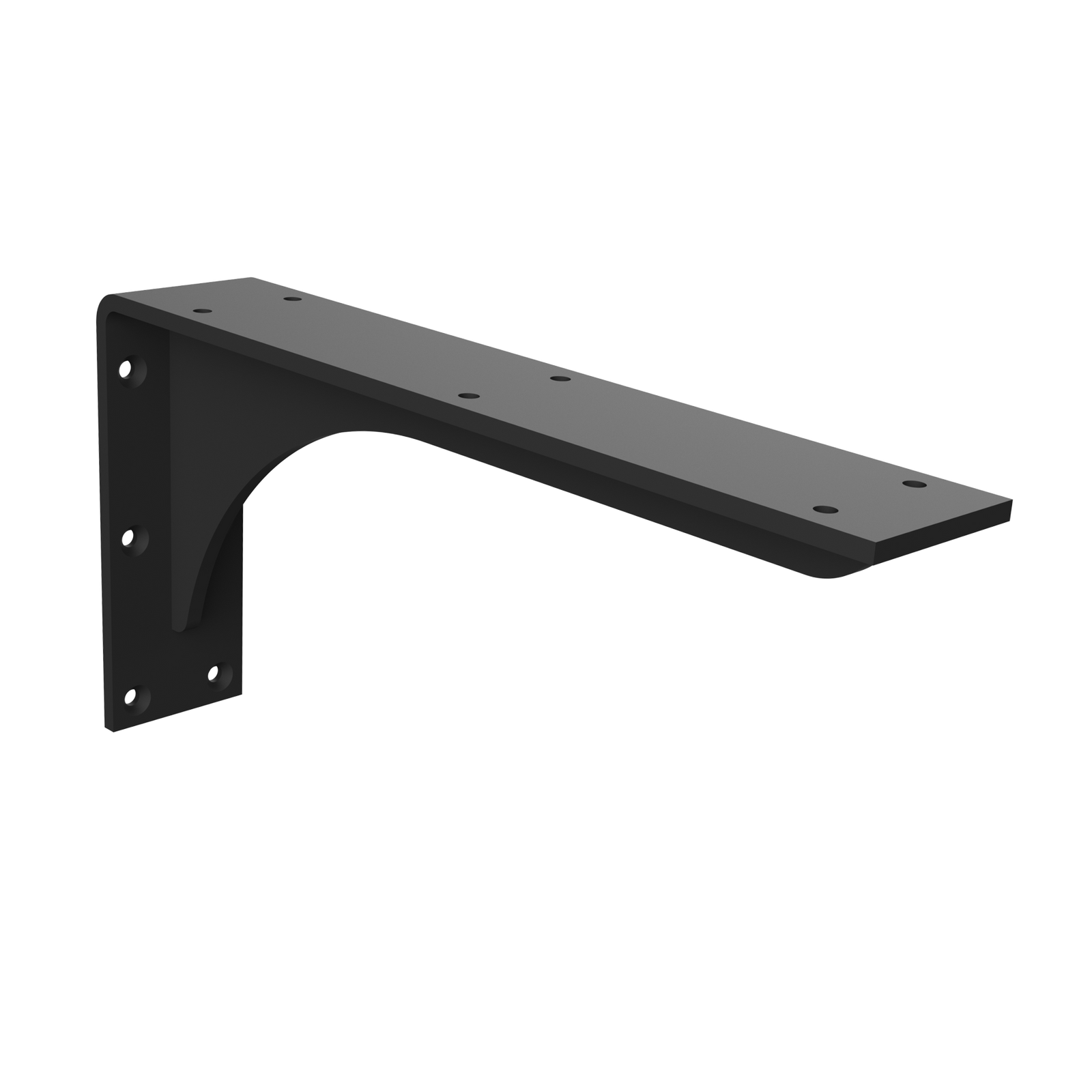

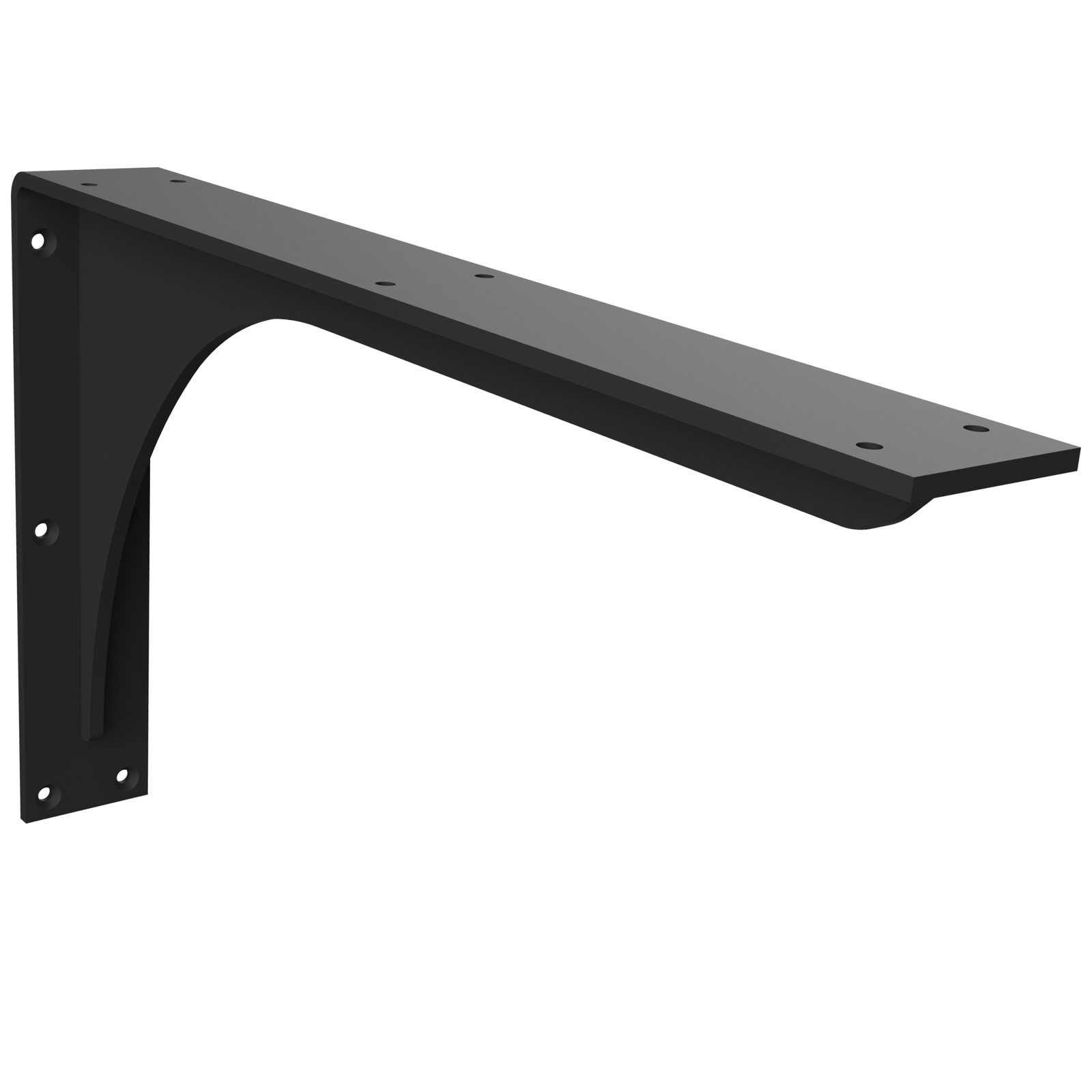

HD Front Mount Countertop L Bracket

Our HD Front Mount Countertop L Bracket is designed to offer reliable support to any granite countertop overhang that extends from a wall or cabinet base. With a heavy duty welded center gusset, it can carry up to 350lbs with no bracket deflection. These countertop support brackets should be mounted directly to a stud, masonry or used with a backing plate in both existing and new construction installations.

Specifications -

• Dimensions:
  • Width 2.5” Wide

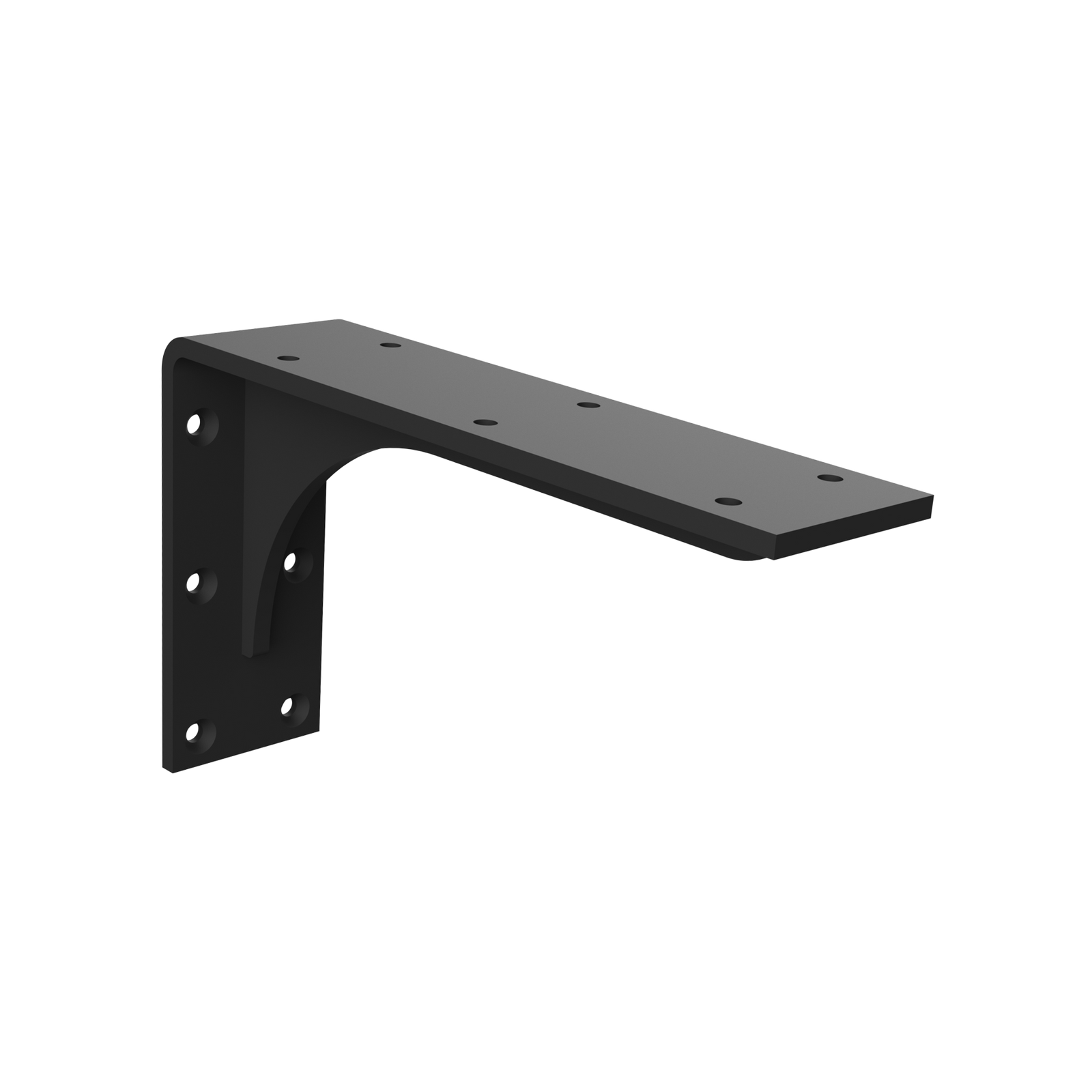

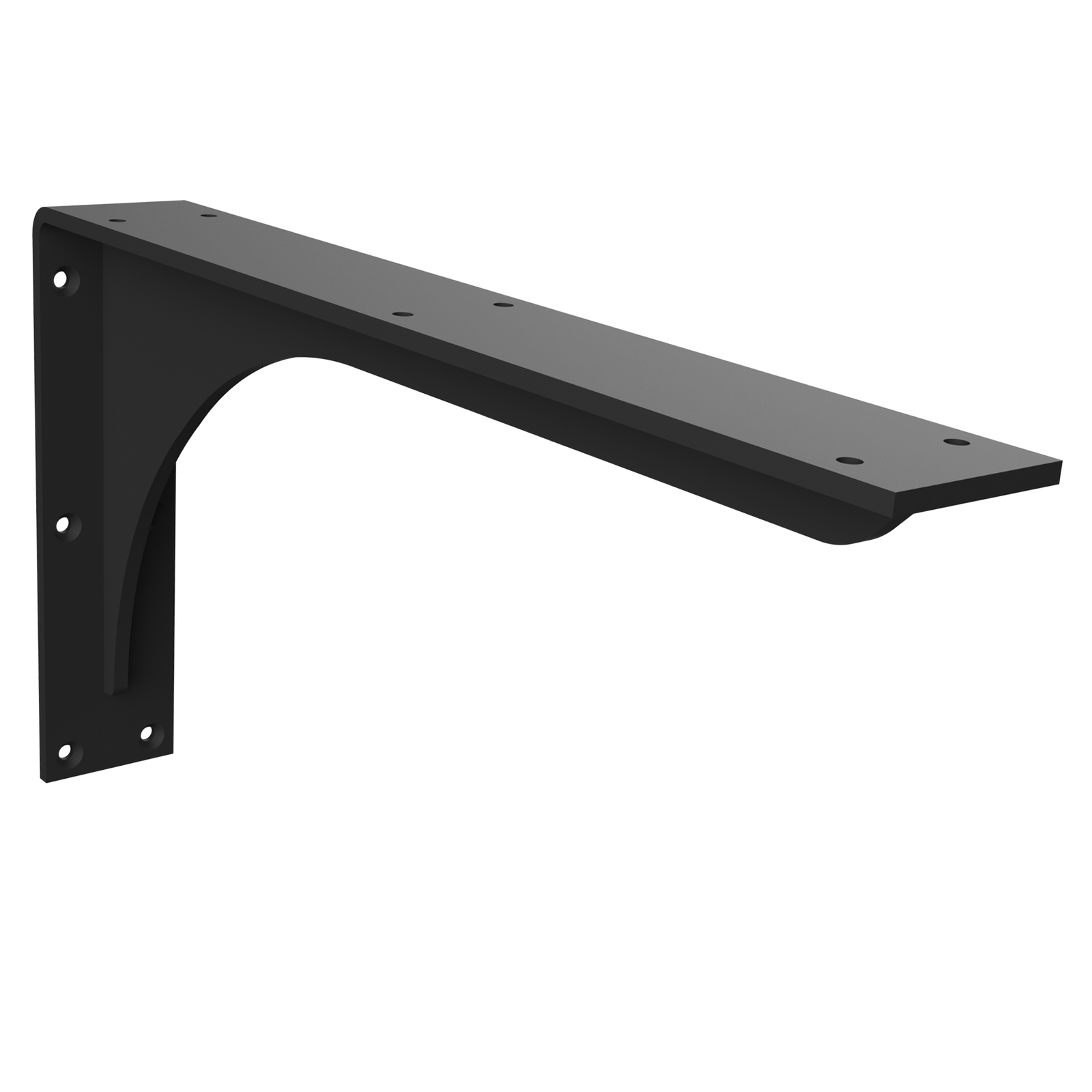

  • Sizes: 10" x 6"; 14" x 7"; 16" x 9"; 18" x 10"; 20" x 12"

• Mounting Holes:

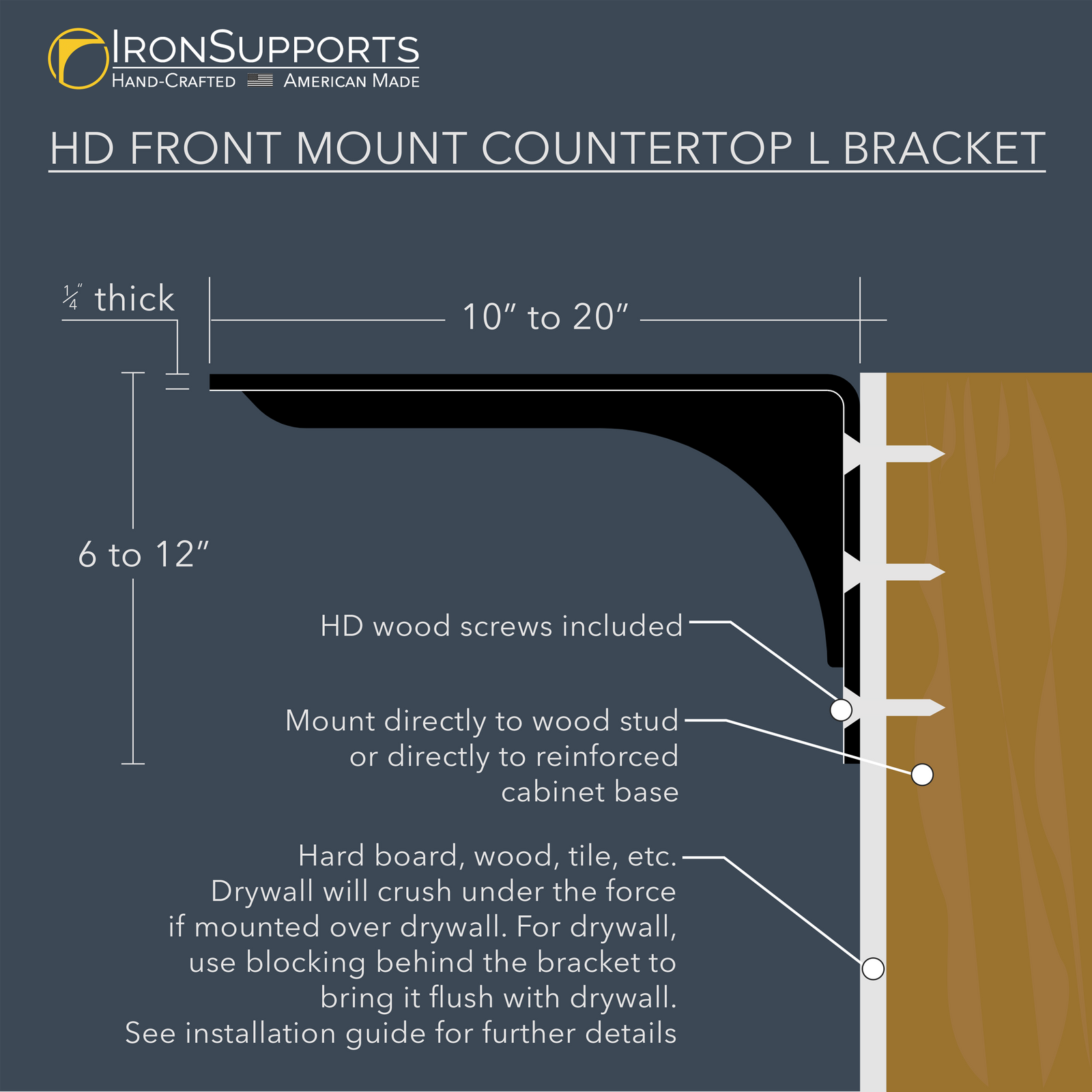

• Back: 6 countersunk holes sized for 14 x 2 ½” Phillips Flat Head Screws (Wood Screws Included with purchase)

• Top: 6 through holes for securing countertop if necessary (this hardware is not included)
• Material: Solid 1/4" American Steel with 1/4" Gusset

• Finish: Industrial powder coated finish

Additional Information -

• Made in the USA
• Carrying Capacity: 350 Lbs. per bracket
• Welded Gusset provides ridged support with zero deflection from the bracket

• Low profile makes this support nearly invisible for a clean look
• Made to screw into 2x4 or 2x6 reinforced wood framing. Can also be mounted to cement and other masonry walls with special concrete screws/anchors.

Uses -

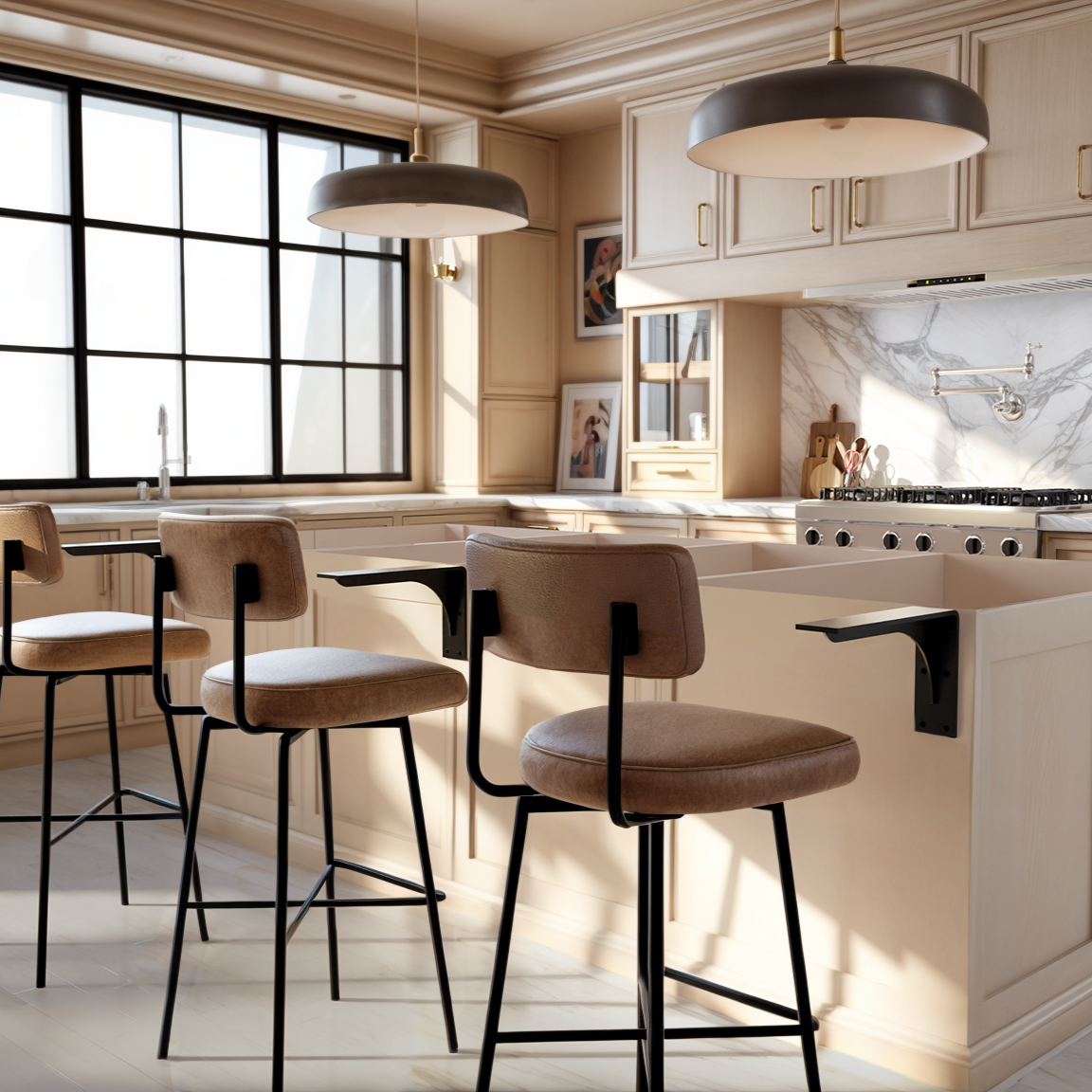

• Support Countertops on Knee Walls

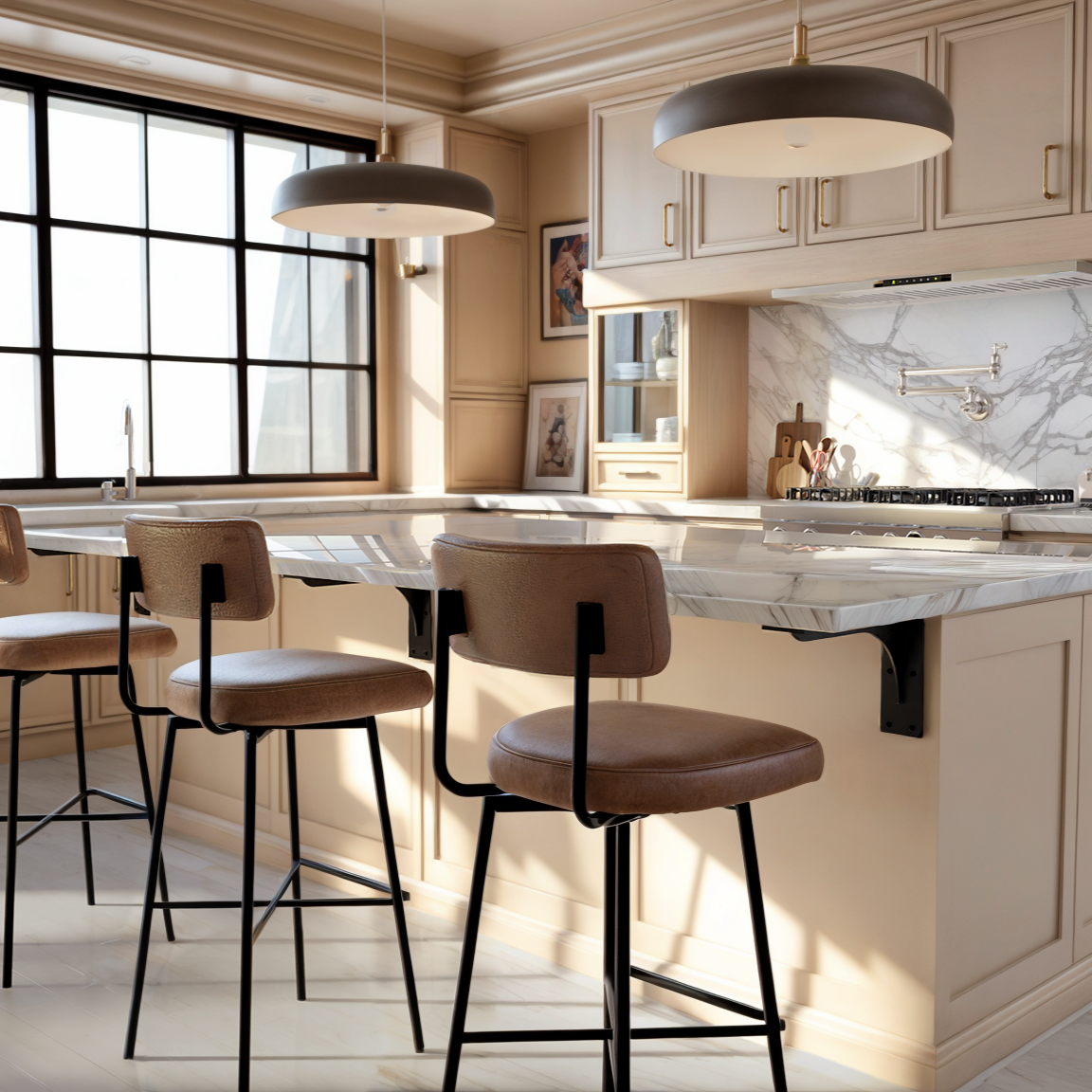

• Support Kitchen Island Countertops

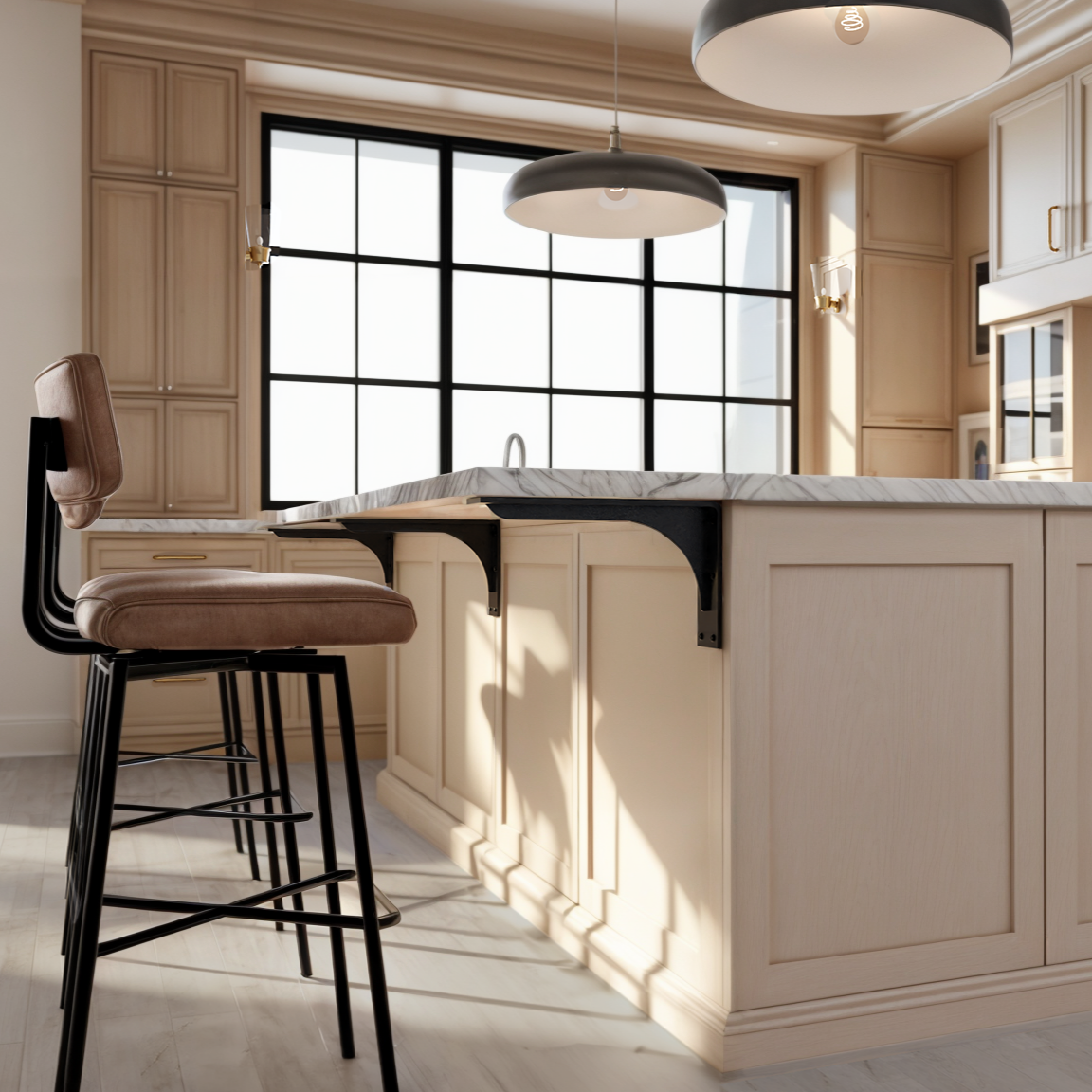

• Support Breakfast Bars
• Support any countertop surface on a framed wall or cabinet base including Granite, Quartz, Natural Stone, Concrete, Wood, Formica, Porcelain and all other materials

Determine What Size & Quantity to Order?

What Size Bracket Should I Use?

• NOTE: Ideally you want no more than 3" of unsupported countertop extending past the end of your bracket.

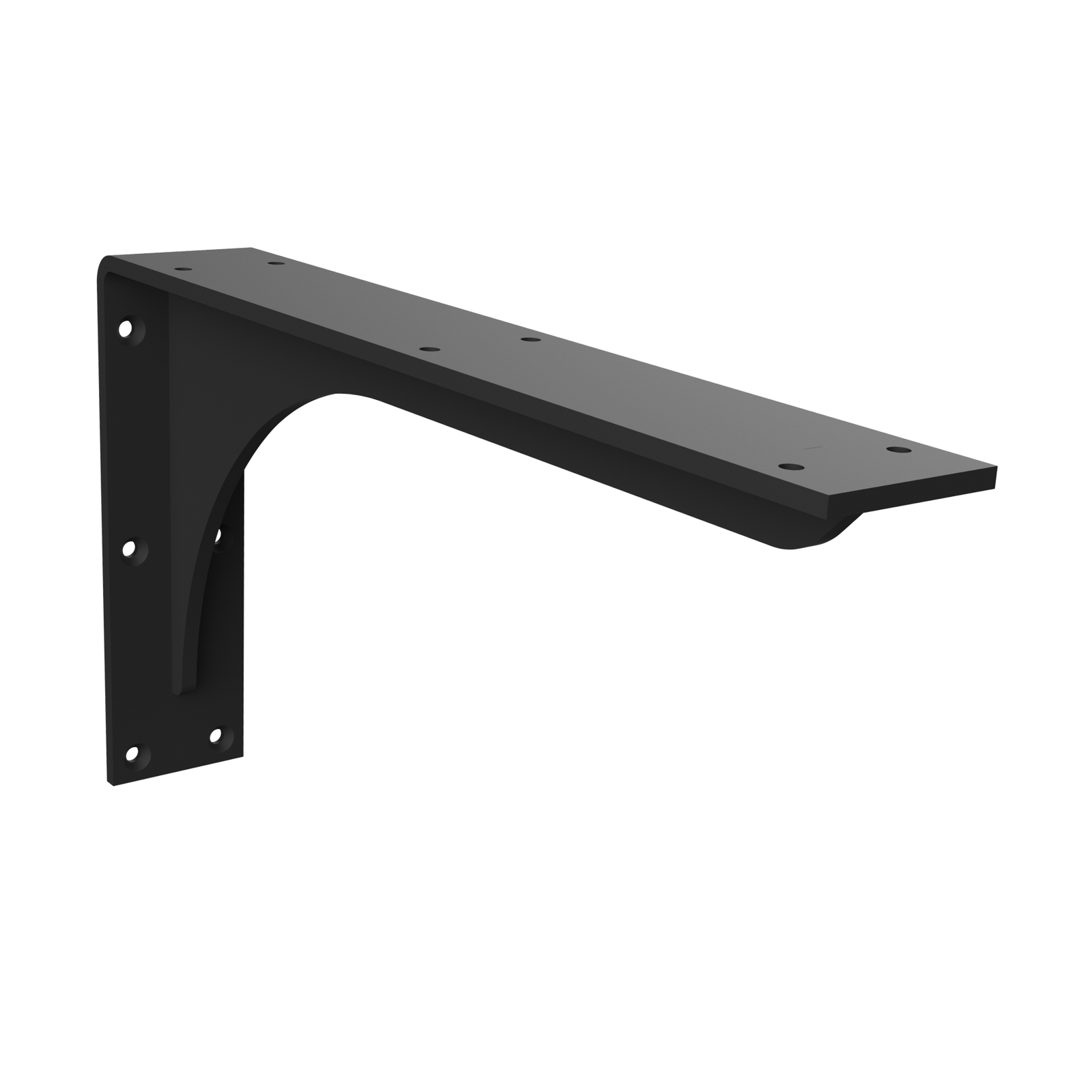

  • Example: If your countertop overhang is 19” Deep (19” – 3” = 16”) You’d want to go with an 16” x 9” Bracket
• Our brackets are listed as follows, depth x height measurements
  • Example: 16” x 9” Bracket
    • 16” would be supporting your material (horizontally or depth)

    • 9” would be mounted to the wall (vertically or height)

Quick Bracket Size Guide:

How Many Brackets Do I Order?

• These countertop support brackets are typically spaced 16 - 24 inches apart, or 1 bracket on each framing stud when possible.

• To figure out how many brackets you need lets start with 2 brackets at each end of the countertop set 4" - 6" inches in from the edge.
• Now measure the distance between the 2 end brackets and use the following formula:
• (Distance Between) divided by/ (desired bracket spacing).
• Example 76 / 16 = 4.75, so you need 4 more brackets to support the space left between the two end brackets.
• Here is an example using a real countertop installation:
• An 84" wide countertop with 2 brackets set 4 inches from the end would leave you with 76" left to support; (84" - 8" = 76"). Now take 76" divided by / 16" = 4.75, So you would need 4 more brackets for the space left giving you a total of 6 brackets for this project.
• For a countertop overhang spanning 84" wide with 2 brackets set in 4" from either side and a 16" span between brackets, you would order 6 brackets total. 2 end brackets and 4 to support the remaining 76" span.

Installation Guide (PDF)

Installation Instructions

View Bracket Spec Sheet (PDF)

View Bracket Installation Guide (PDF)
