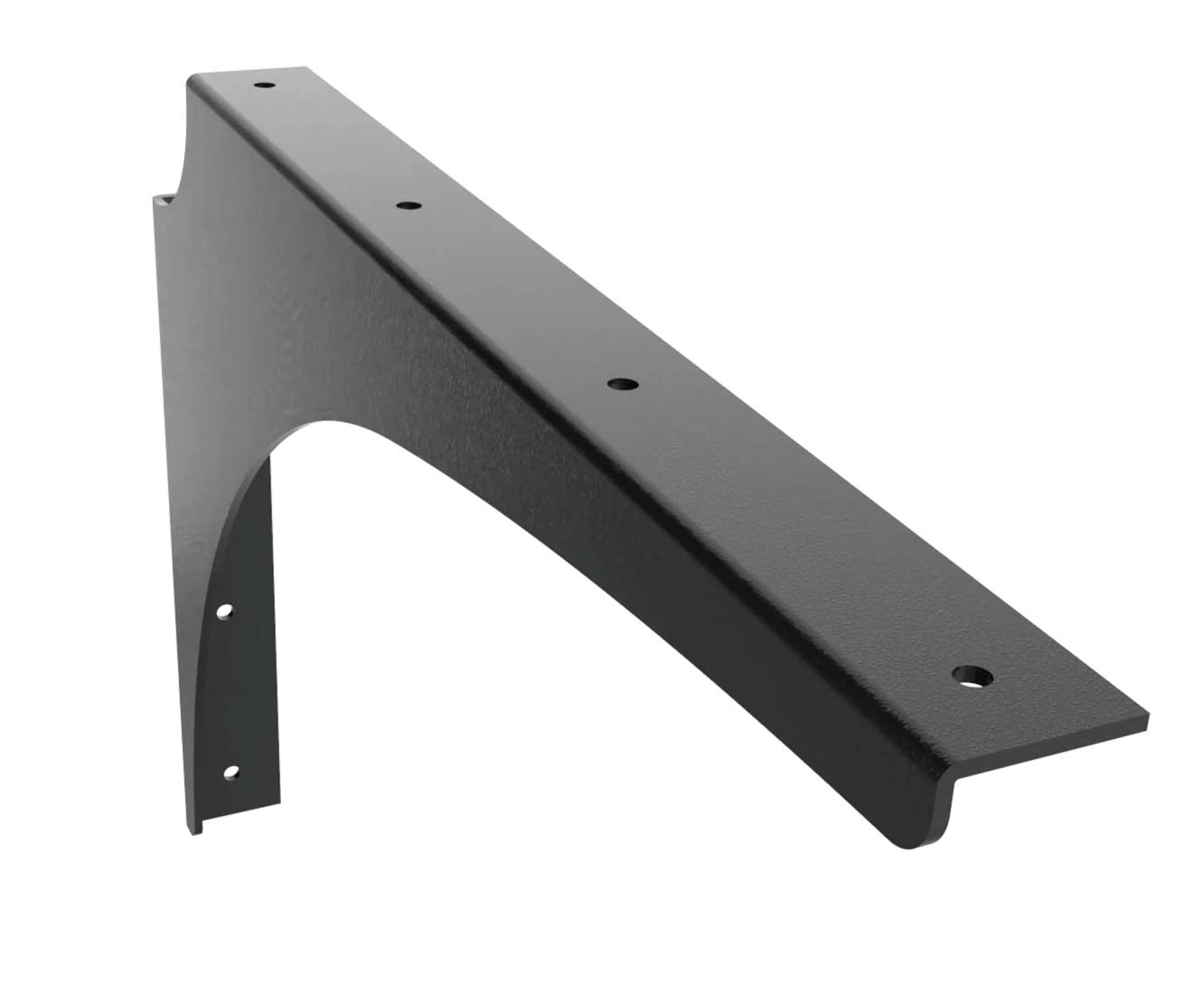

Universal Heavy Duty Commercial Support Bracket

Discover unparalleled versatility with our Universal Commercial Bracket, the ultimate support solution for a wide range of applications. Engineered for exceptional strength and featuring a seamless low-profile gusset, our bracket ensures ADA compliant accessibility, ideal for supporting public restroom vanities and various other fixtures. Plus, it's reversible design allows for effortless mounting on either side. From floating desks to heavy-duty shelving, wall-mounted bench seating to restaurant buffets, trust our brackets to provide solid support where it's needed.

Specifications -

• Dimensions:
  • Width 1.5” Wide

  • Sizes: 12" x 8"; 18" x 12"; 21" x 15"

• Mounting Holes, sized for 1/4" lag bolts (Wood lag bolts are included)

• Material: Solid 1/8” American Steel
• Finish: Premium powder coated finish


Additional Information -

• Made in the USA
• Carrying Capacity: 500Lbs. per bracket (!* When used as a pair *!)

• Open back corner to run cords or other utilities
• Reversible - These brackets can be flipped and mounted to the wall on the long side as well.

• The narrow profile makes this support nearly invisible for a clean look
• Industrial powder coated finish
• Made to screw into 2x4 or 2x6 reinforced studs. Can also be mounted to block and other cement walls with special concrete anchors


Uses -

• Support Vanities
• Support Heavy Duty Shelves

• Support Work Tables

• Support Desks
• Support Wall Mounted Bench Seats

• Support Bars
• Support anything you want on a wall including Granite, Quartz, Natural Stone, Concrete, Wood, Formica, and all other materials.

Determine What Size & Quantity to Order?

What size brackets do I need?

• No more than 3” past edge of bracket should be unsupported
• Example: Your countertop is 20” Deep (20” – 3” = 17”) You’d want to go with an 18” x 12” Bracket
• Our brackets are listed as follows, depth x height measurements
• Example: 18” x 12” Bracket
• 18” (horizontally or depth)
• 12” (vertically or height)

How many brackets should I order?

• Standard Spacing: 16” - 24” Apart.
• We recommend mounting one bracket per stud.
• If you are mounting the bracket to a header style support you can modify bracket spacing.

Installation Guide (PDF)

View Bracket Detail Drawing (PDF)
